Load Carriers (Crossbar)

Load carriers (crossbar)

Removing load carriers

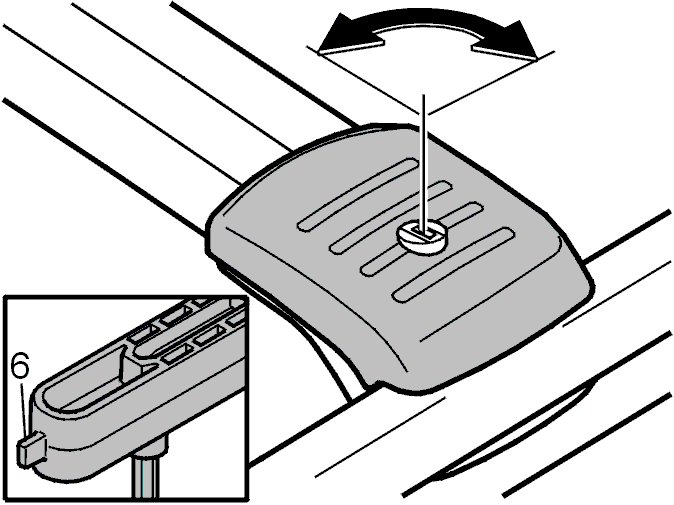

Remove the cover by turning the locking 90°.

Hint: The cover can be detached using the tools for tightening the roof rails (6).

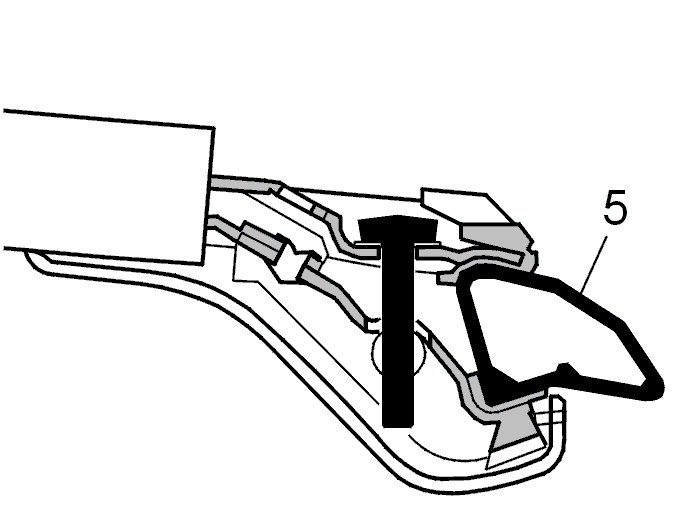

- Slacken off the screw to remove the load carriers.
- Remove the load carrier.

Installing load carriers

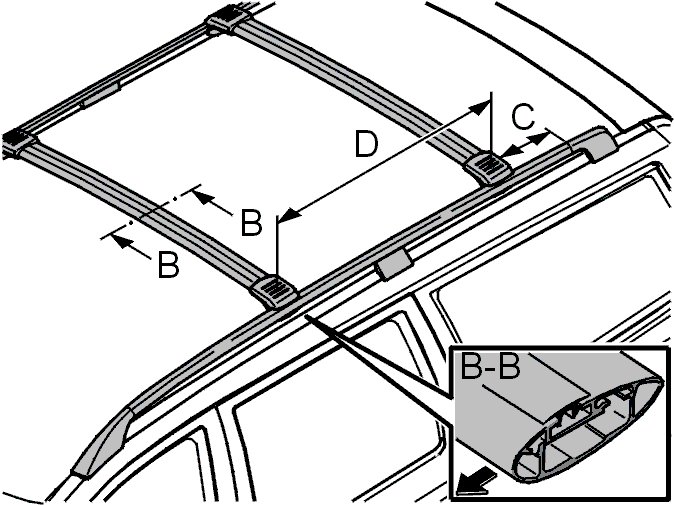

Note! Check that the wing profile (B-B) is correctly oriented.

Recommended location if no other positioning is required.
Dimension C= 185 mm (7.28")
Dimension D= 800 mm (31.49")

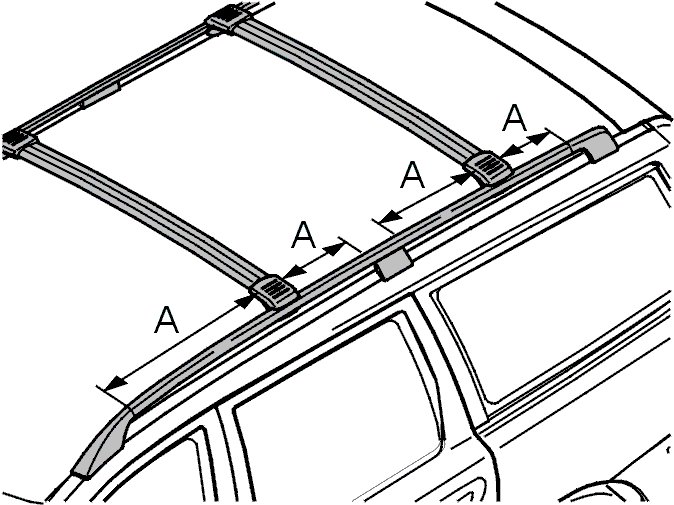

Dimension A = minimum 30 mm (1.18")




Tighten the load carriers to 6 Nm.
