Net Pocket, Side Panel

Net pocket, side panel

Note! Installation applies to both the left and right hand sides.

Preparations

- Press the centres of the clips until a click is heard. Remove the clips
- Remove the plastic nut.

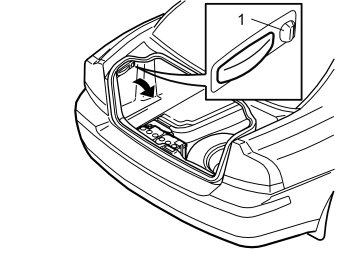

- Twist the knob (1) a quarter turn. Remove the side panel by folding inwards.

Installing the net pocket

- Remove the net pocket from the kit. Secure the clip (1) on the end of the net a few millimetres from the eyelet (2)

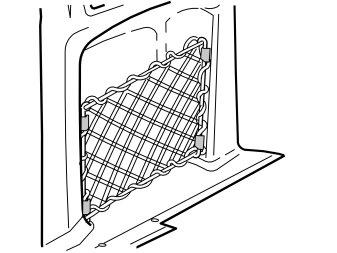

- Place the panel in the position as illustrated

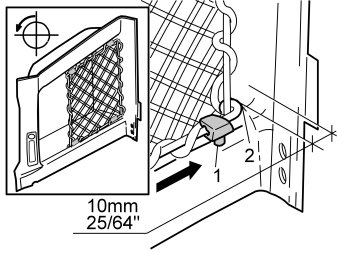

- Position the end of the net so that the distance of the eyelet to the lower edge of the side panel is 10 mm (25/64"), and the underneath of the clip is on the edge of the panel curvature as illustrated.

- Mark out holes for drilling in the centre of the mounting pin for the clip. Use a small screwdriver or awl. Press straight through the side panel

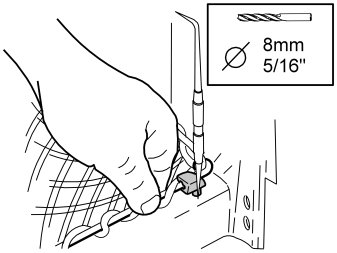

- Turn the panel around. Drill out the hole using a - 8 mm (5/16") drill.

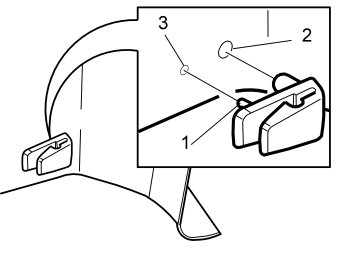

- Mark up for holes for the clip locating pin (1). First install the clip in the new hole (2) on the reverse of the side panel. Then press so that the locating pin makes a mark (3) in the panel. Hold the clip parallel with the lower edge of the panel as illustrated
- Make holes to align the locating pin. Use a small screwdriver or awl.

- Press the clip into the two holes in the side panel
- Lock the clip on the reverse using a locking washer from the kit. Use a counterhold when securing the locking washer

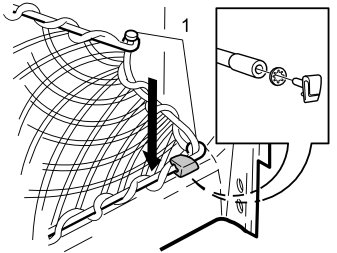

- Press the end of the net in the clip with the rivets (1) for the elastic strap pointing inwards.

- Press a new clip (from the kit) on the end of the net

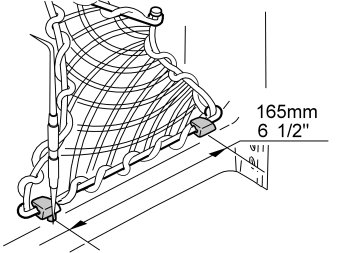

- Position the clip in the same way as the first at a distance of 165 mm (6 1/2") between both clips
- Mark out and drill out the hole, and continue.
- Remove the end of the net from both clips.

- Install the clip for the corresponding side in the same way.
- Press the loose end of the net into the clips with the rivets pointing inwards.
- Reinstall the side panel. Secure the panel using the clips, plastic nut and the knob.
