Textile Safety Net

Textile Safety Net

HINT: The safety net can be installed either behind the rear seats or the front seats.

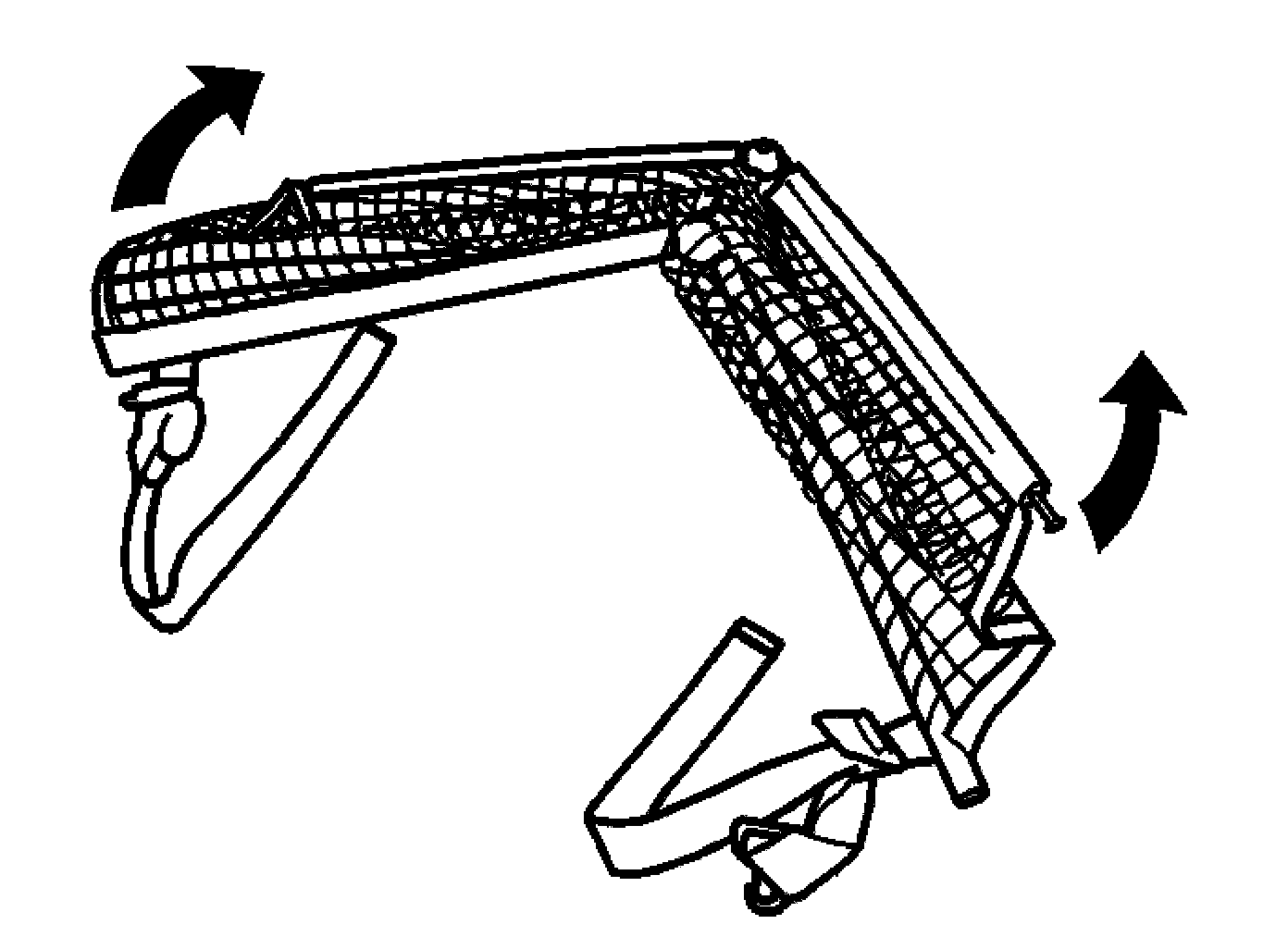

- Fold the safety net out until a clicking noise is heard. The clicking noise indicates the locked position.

Applies to installation behind the front seats

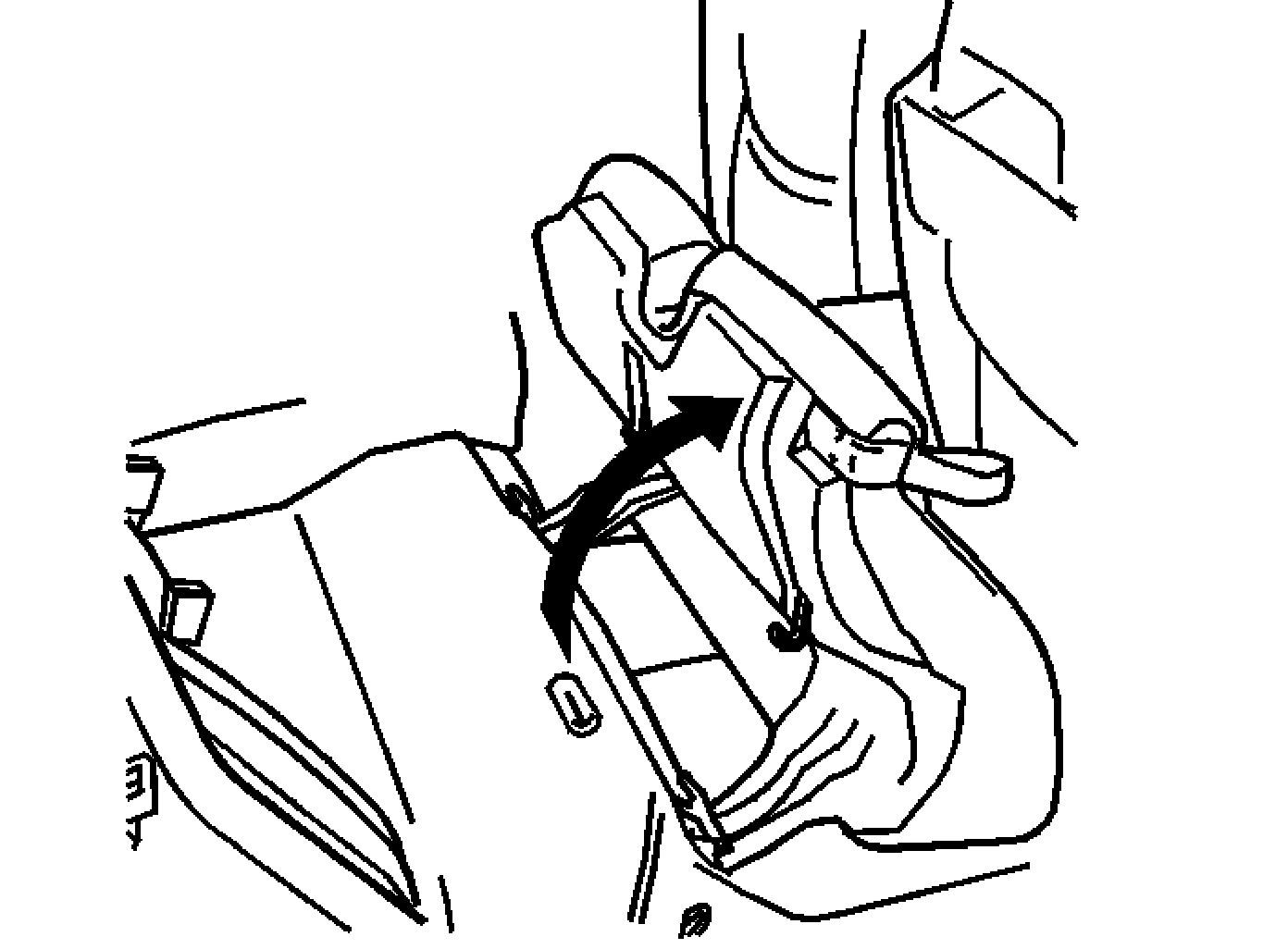

- Fold both seat cushions and backrest for the rear seat forwards.

Applies to both alternatives

Illustration A applies to installation behind the front seats






Illustration B applies to installation behind the rear seats







Secure the safety net with the straps pointing backwards.

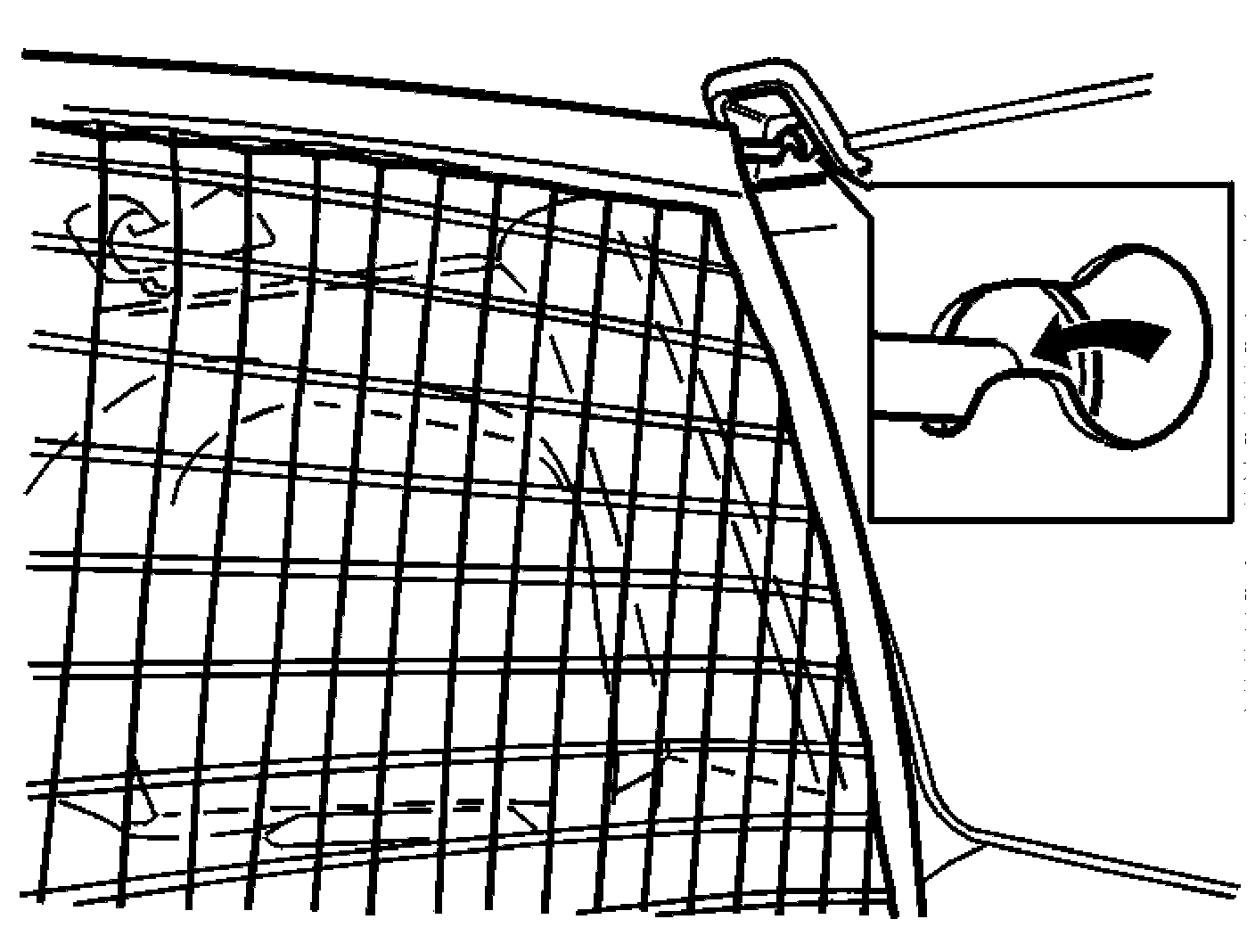

- Insert one end of the safety net in the right hand roof mounting. Move the end of the safety net to the front position of the roof mounting

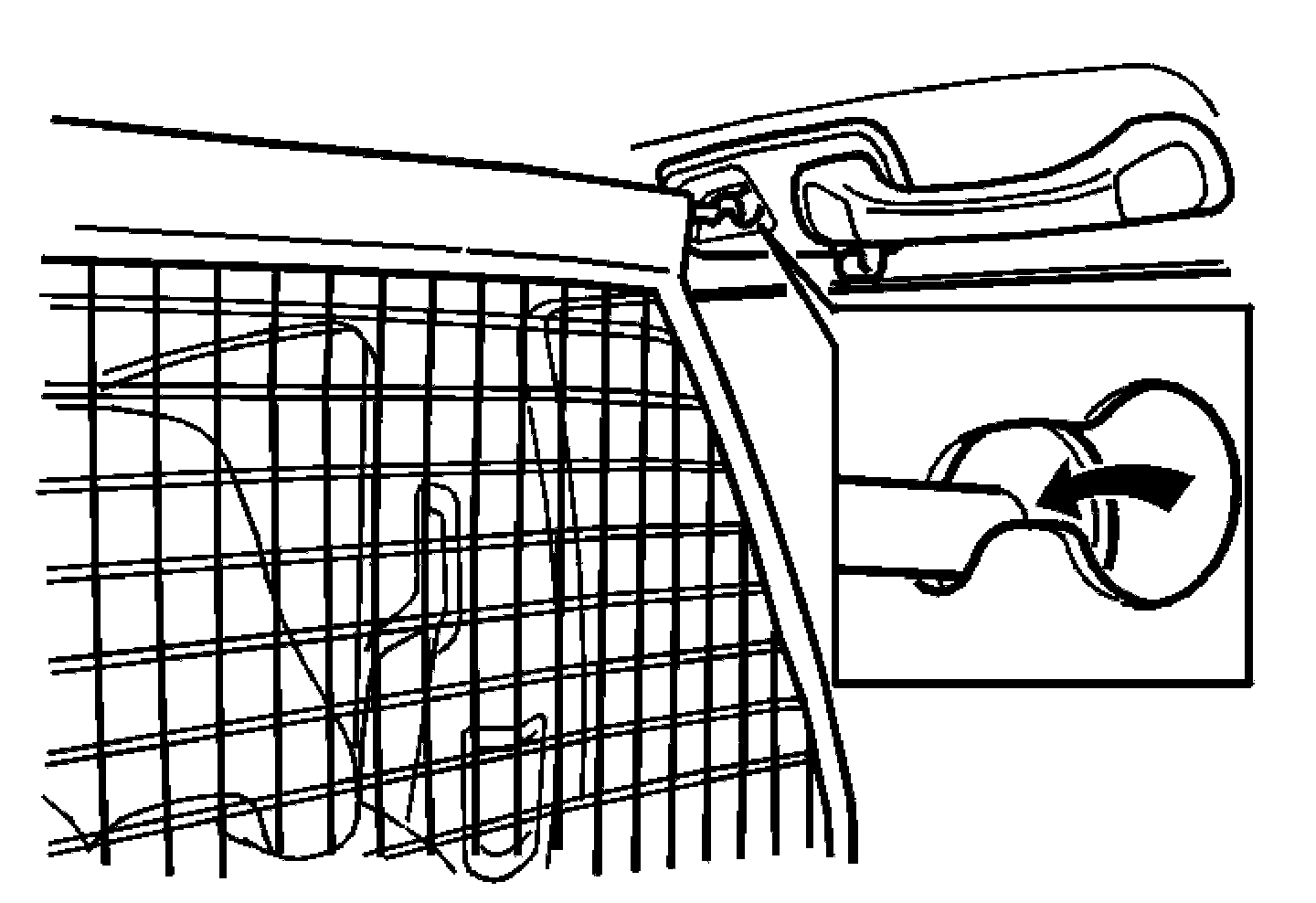

- Move to the left-hand side. Press the springloaded bar towards the right-hand roof mounting. Secure in the same manner.

Applies to installation behind the front seats

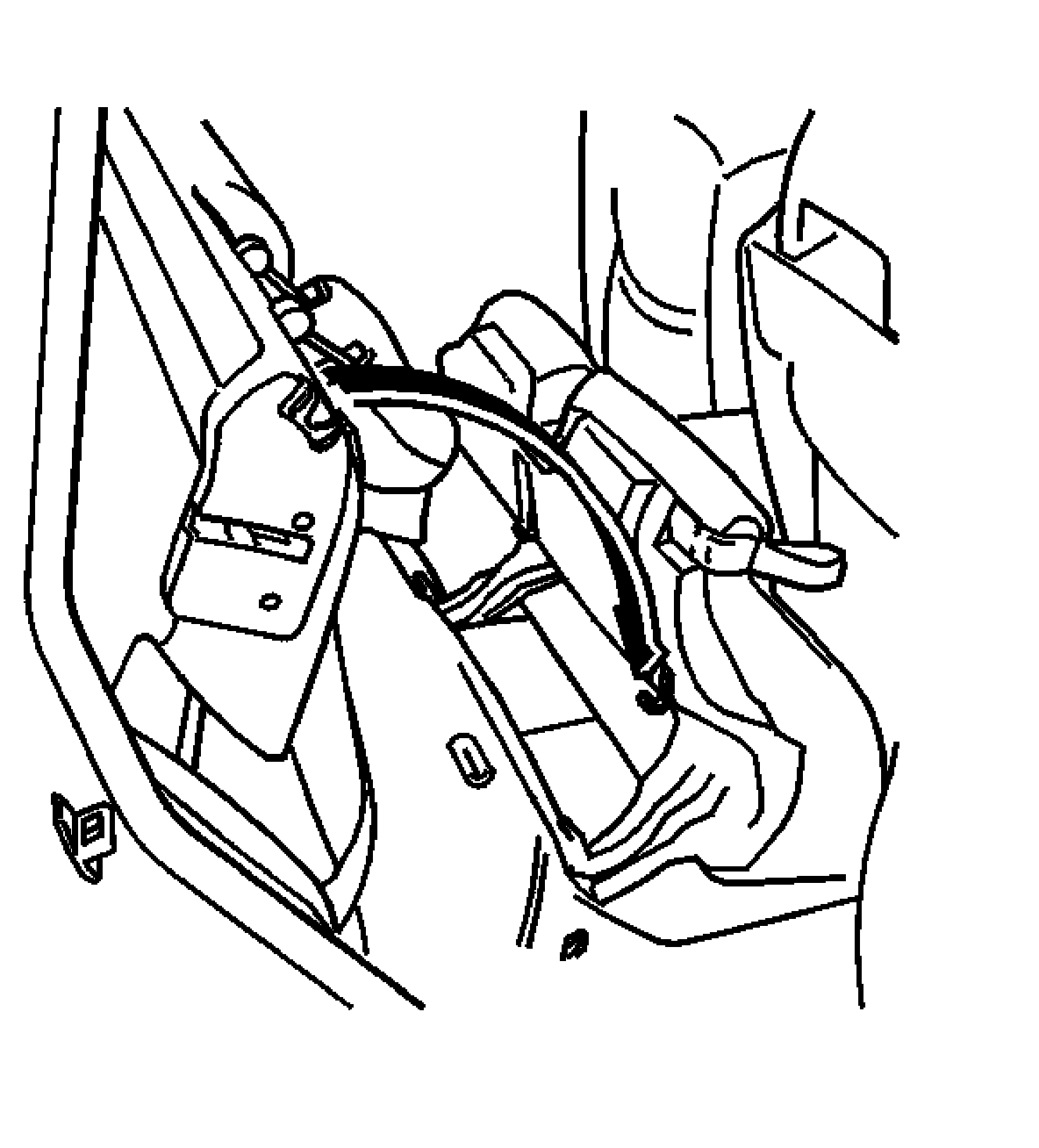

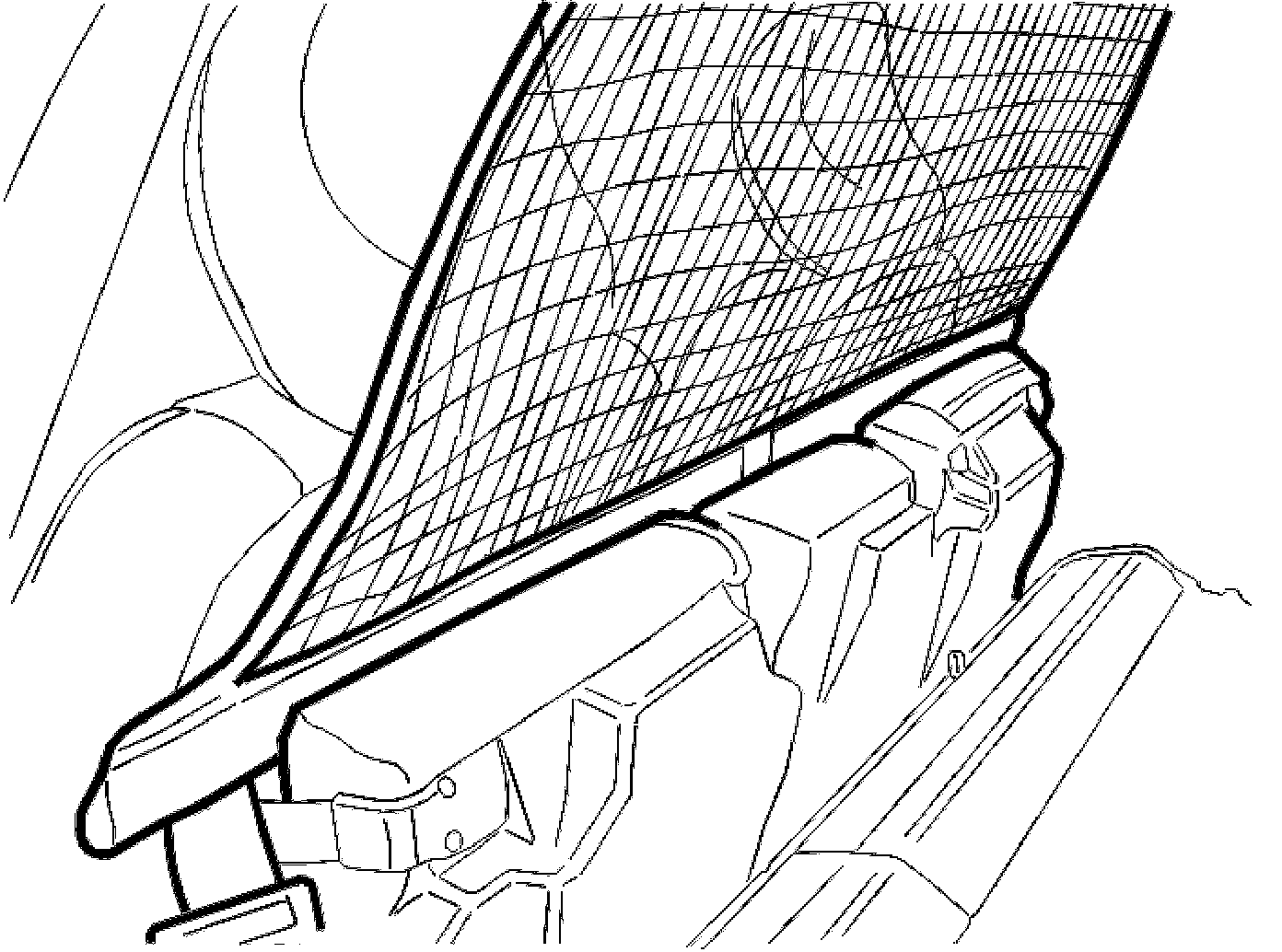

- Position the lower bar for the safety net between the backrest for the front seats and folded up seat cushions for the rear seat.

Illustration A applies to installation behind the front seats

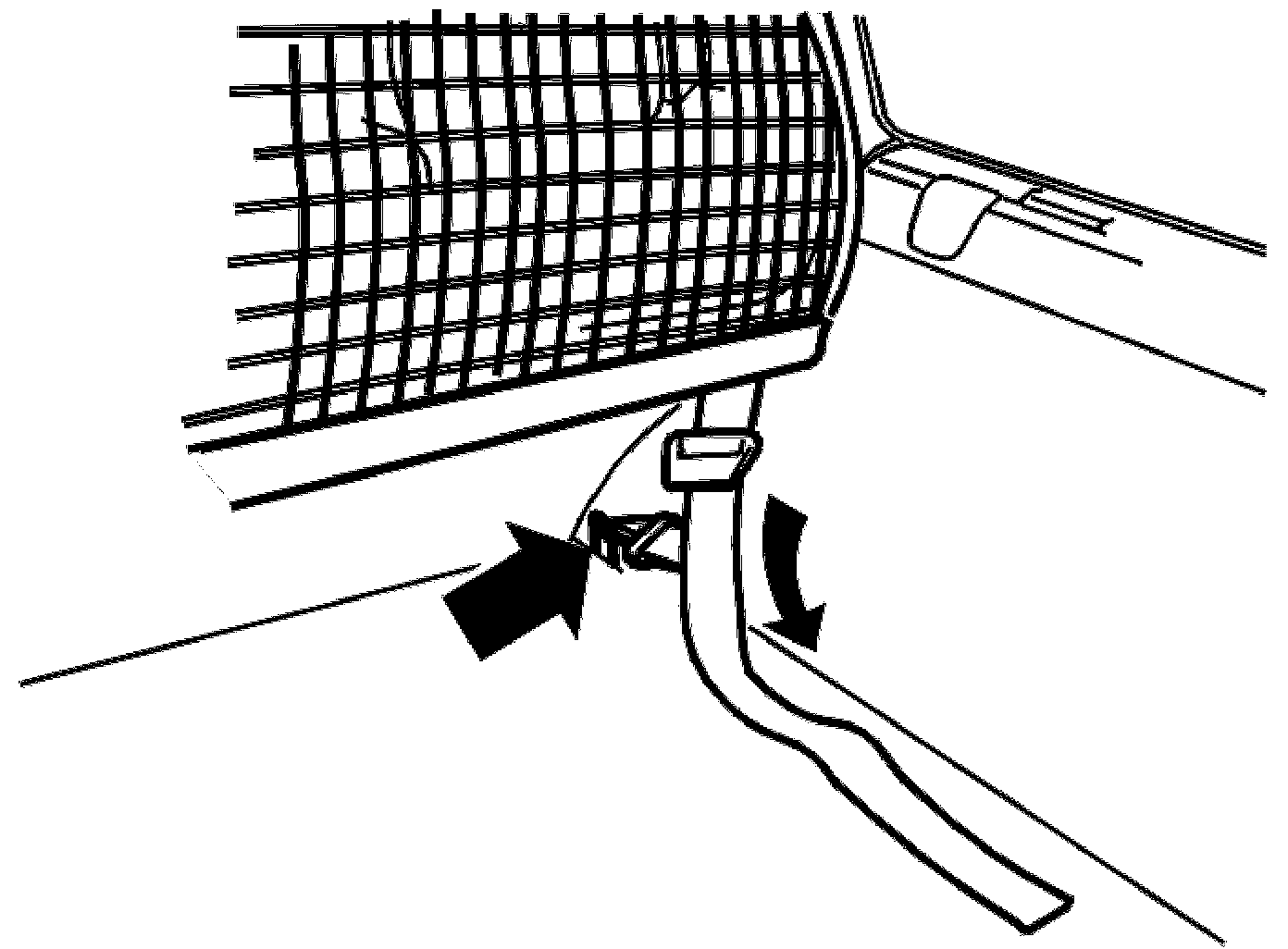

- Secure the hook for the strap in the mounting eyelet on both sides
- Tighten both the straps properly.

Illustration B applies to installation behind the rear seats







- Secure the hook for the strap in the front mounting eyelet on both sides
- Tighten both the straps properly.

Folding up the safety net

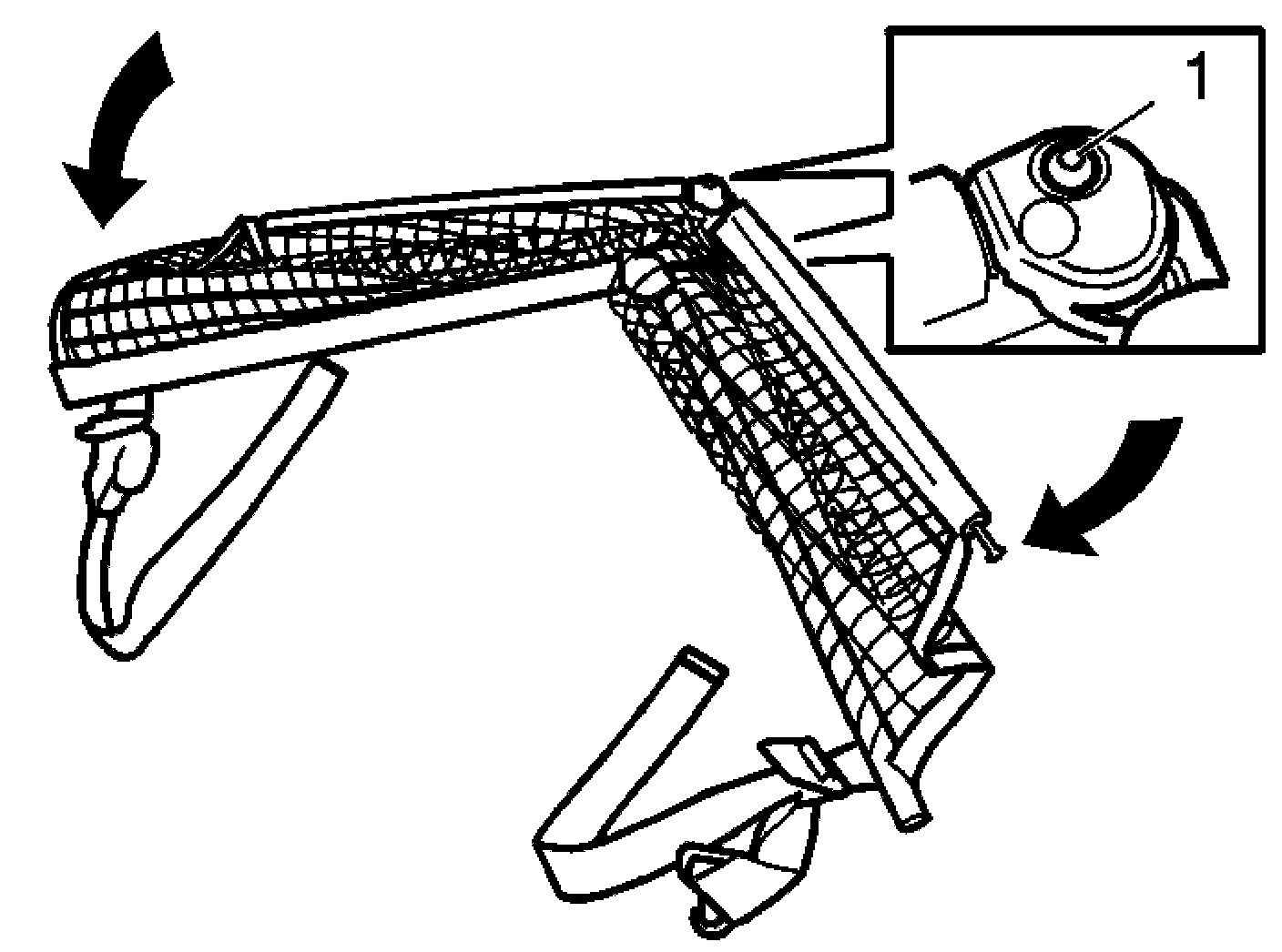

- Press in both lock buttons (1). Fold the safety net together.
