Front Edge of the Dashboard

Remove:







- The dashboard.

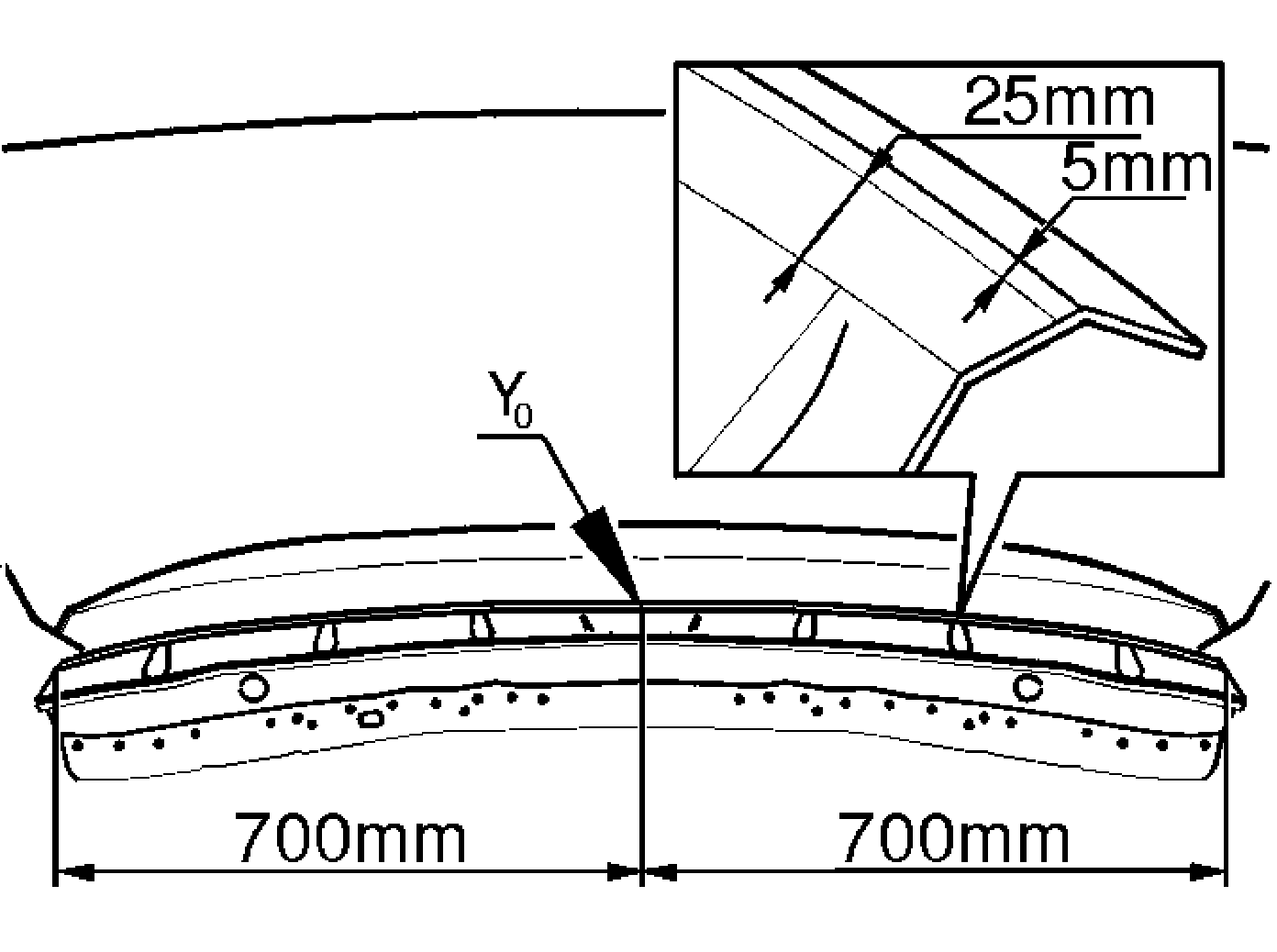

Tape the firewall member with ten pieces of velour tape (P/N 9511045). (The tape should be placed in the front edge of the dashboard contact surface with the member).

Installing the dashboard

Install:
- The dashboard.

NOTE: Check that the front edge molding of the dashboard is in position and does not come loose when the dashboard is installed.
