Components Center Console, Replacing

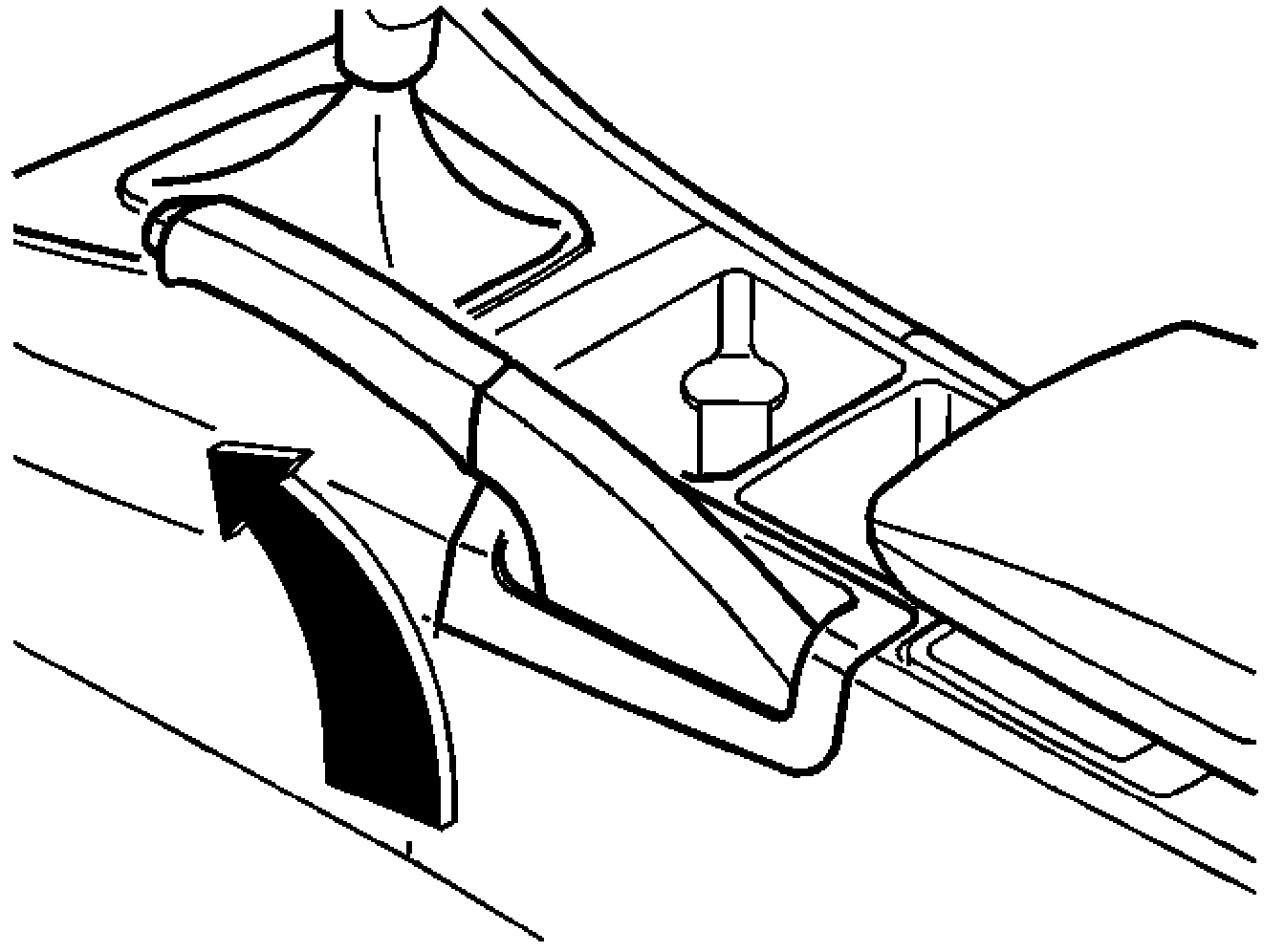

Components Center Console, Replacing Replacing The Parking Brake Panel







- Lift the panel straight up
- Thread the boot over the parking brake lever.

Install:
In reverse order.

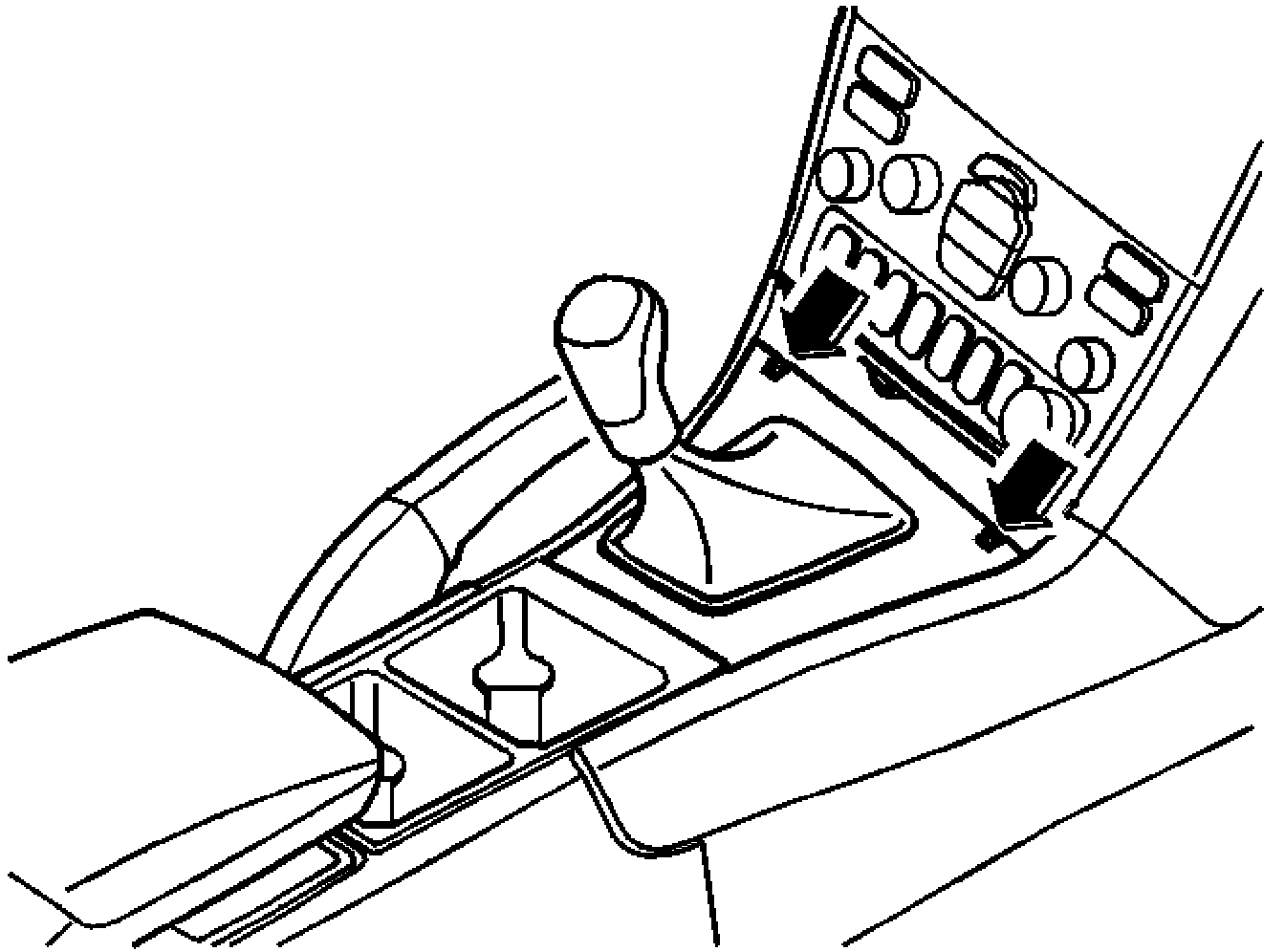

Replacing the gear selector panel







- Move the gear selector to a rear position
- Release the catches at the front edge
- Lift the front edge of the panel
- Lift up the panel.

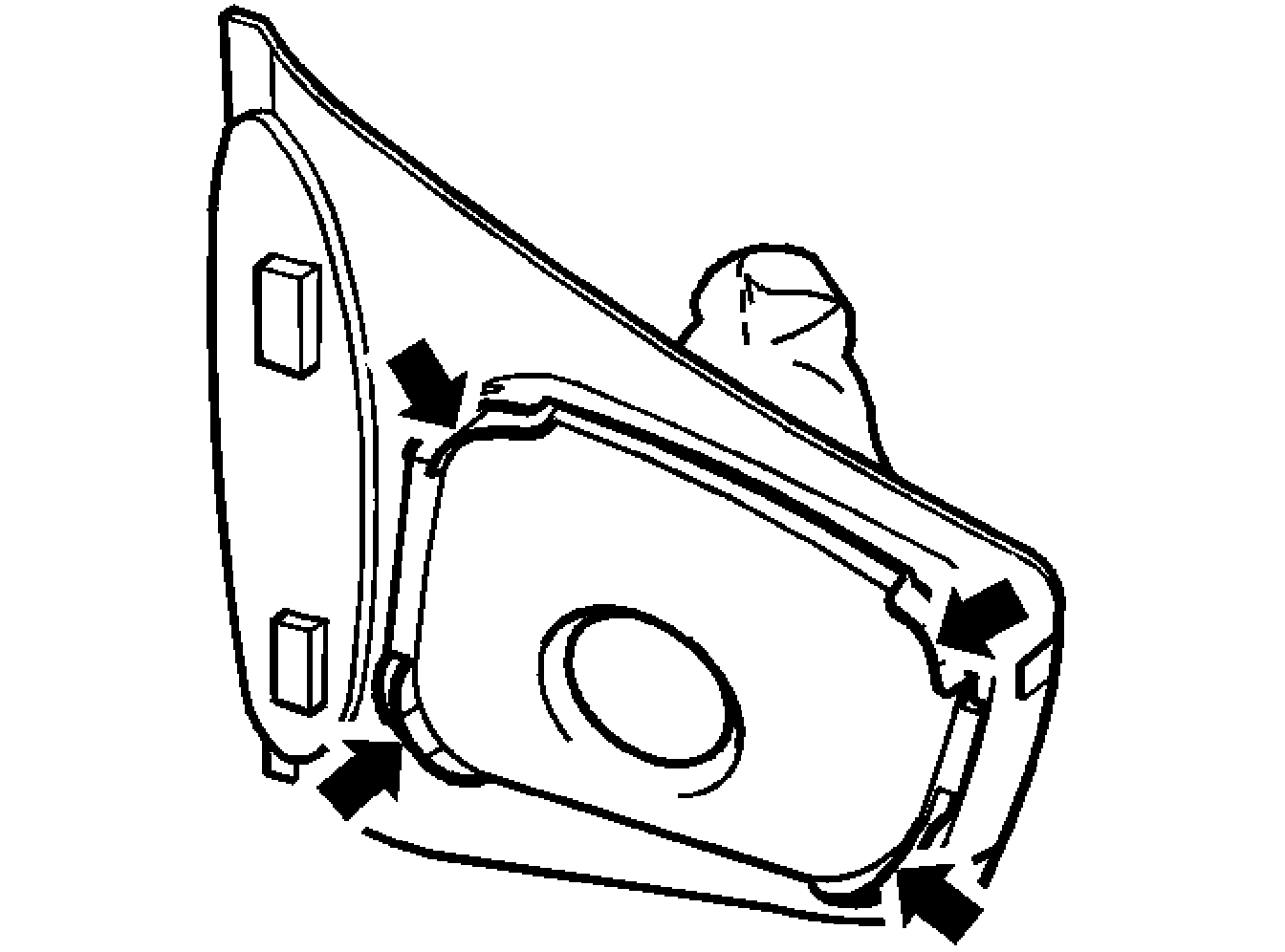

Release the four catches on the underside.

Press up the inner section of the panel.







Release the frame.

NOTE: Do not pull or lift the boot.

Doing so could damage the seams.

Install:
In reverse order.

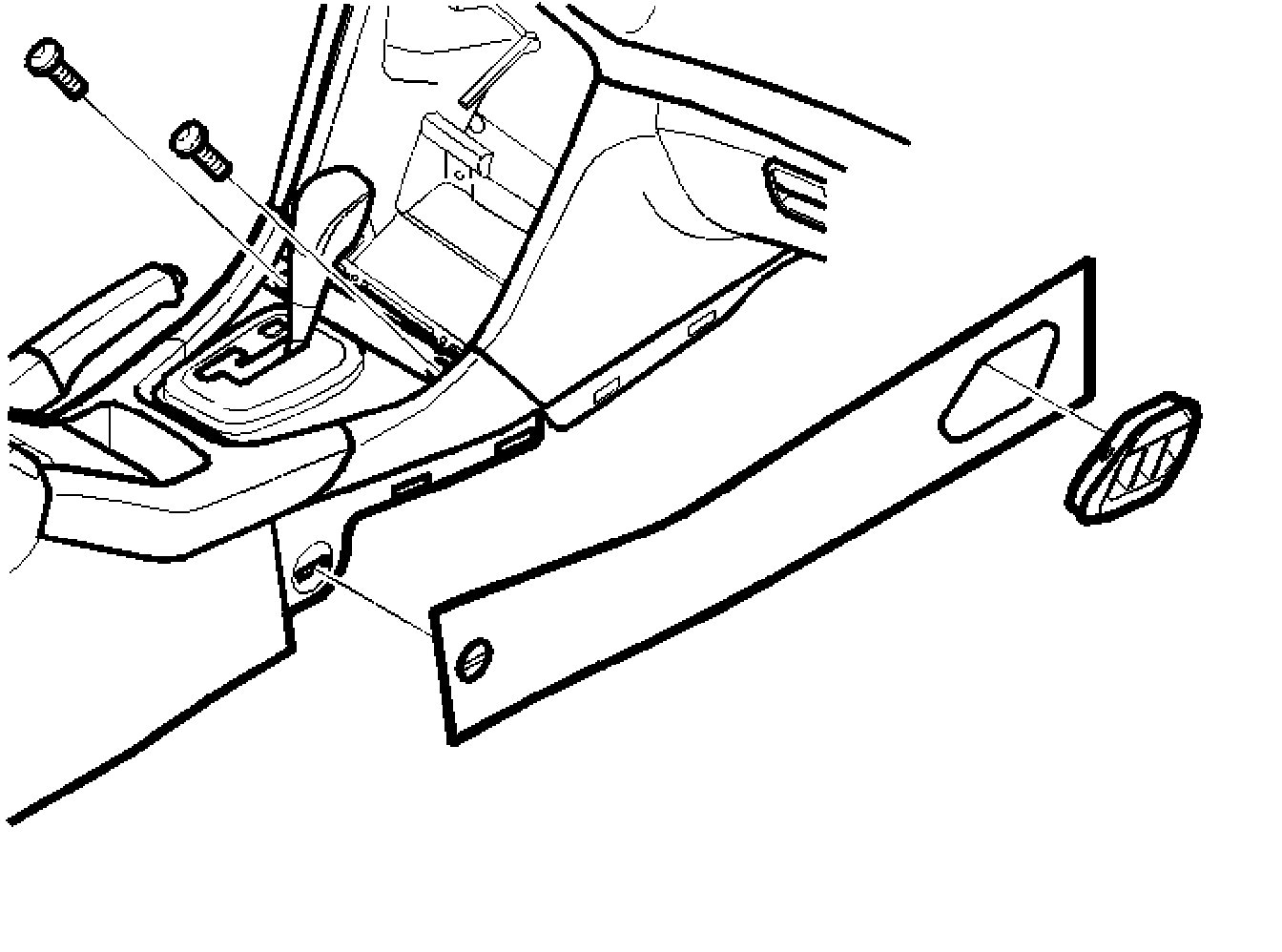

Replacing The Side Panel







- Remove the soundproofing panel
- Move the front seat to the rearmost position
- Turn the clips a 1/4 turn.

HINT: Use a washer or a coin.

- Slide the panel backwards
- Remove the panel.

Install:







- In reverse order.

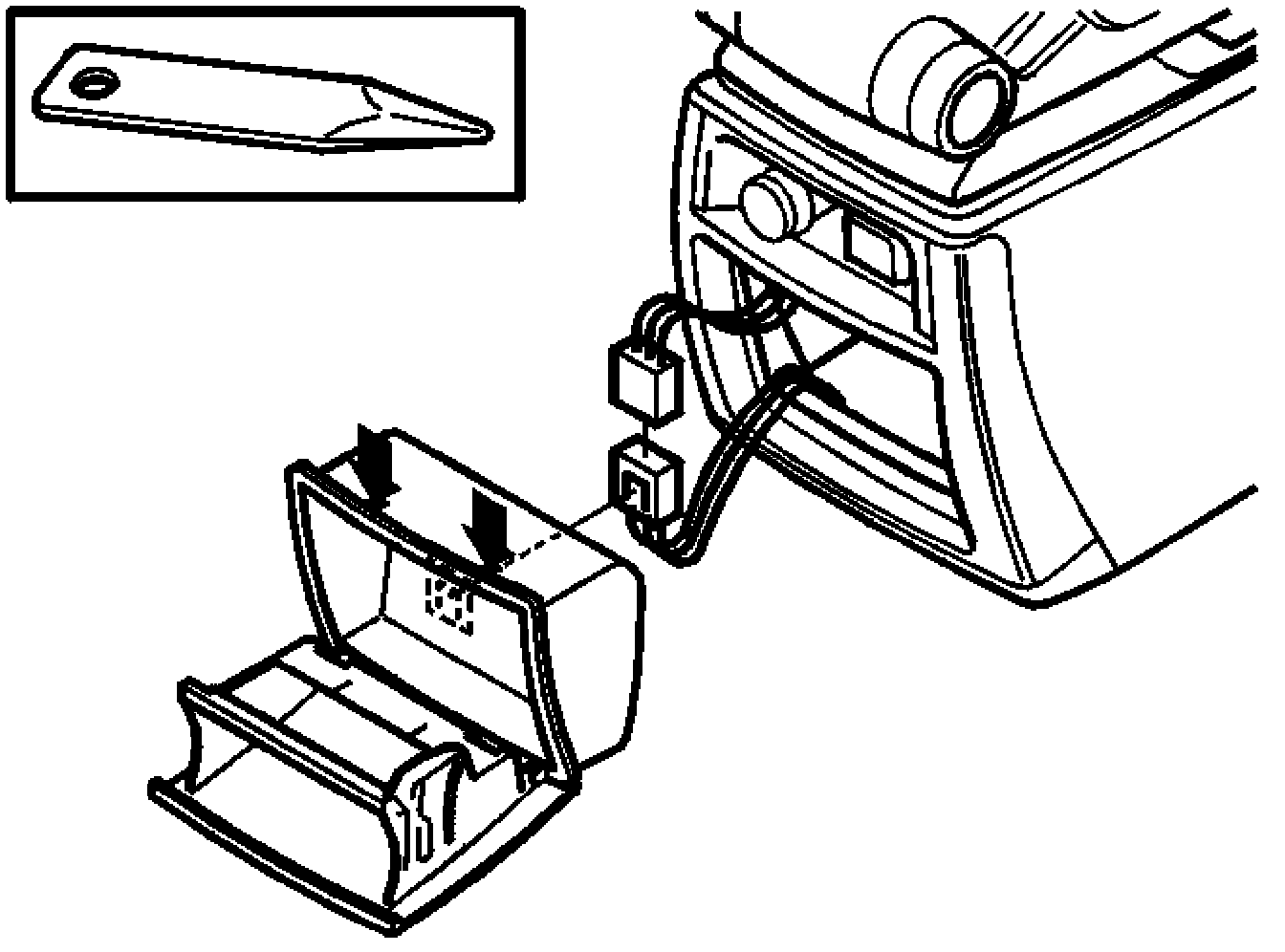

Replacing The Rear Ashtray







- Open the ashtray so that it passes the hooks
- Release the ashtray by pressing the top edge
- Press down slightly
- Release the catches on the side
- Pull the holder backwards
- Remove the connector.

Install:
In reverse order.

Replacing The Center Ashtray







- Remove the three screws
- Release the ashtray by pressing the top edge.

Install:
In reverse order.

Replacing The Front And Rear Box

Remove the rear box:
- Slacken off the 2 screws at the rear edge
- Release the front edge by pressing the box together.

Remove the front box:
- Slacken off the 2 screws at the front edge
- Release the rear edge by pressing the box together.

Install:
- In reverse order.

Replacing The Storage Compartment







- Remove the two screws
- Lift the storage compartment backwards and upwards.

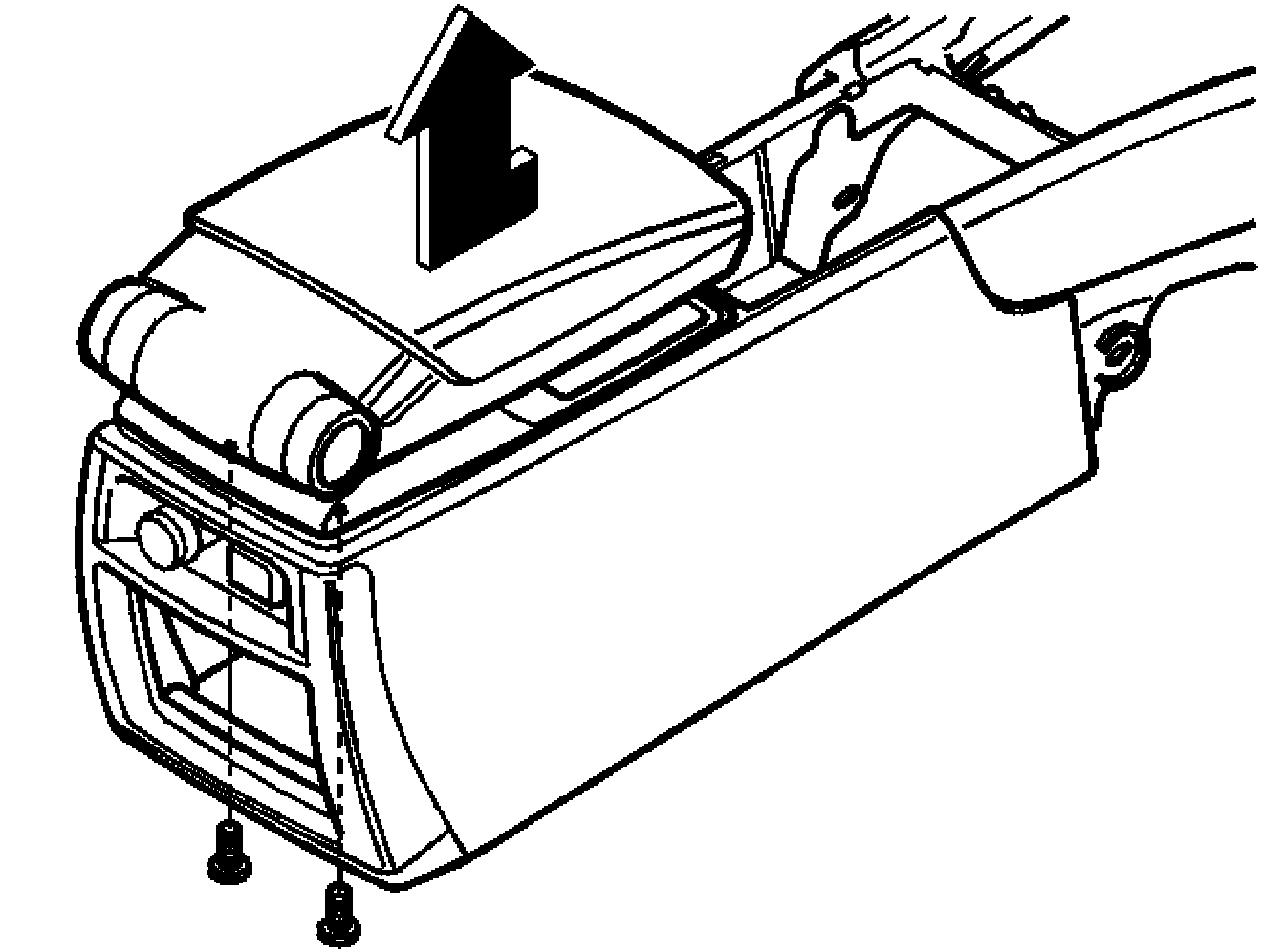

Removing the armrest

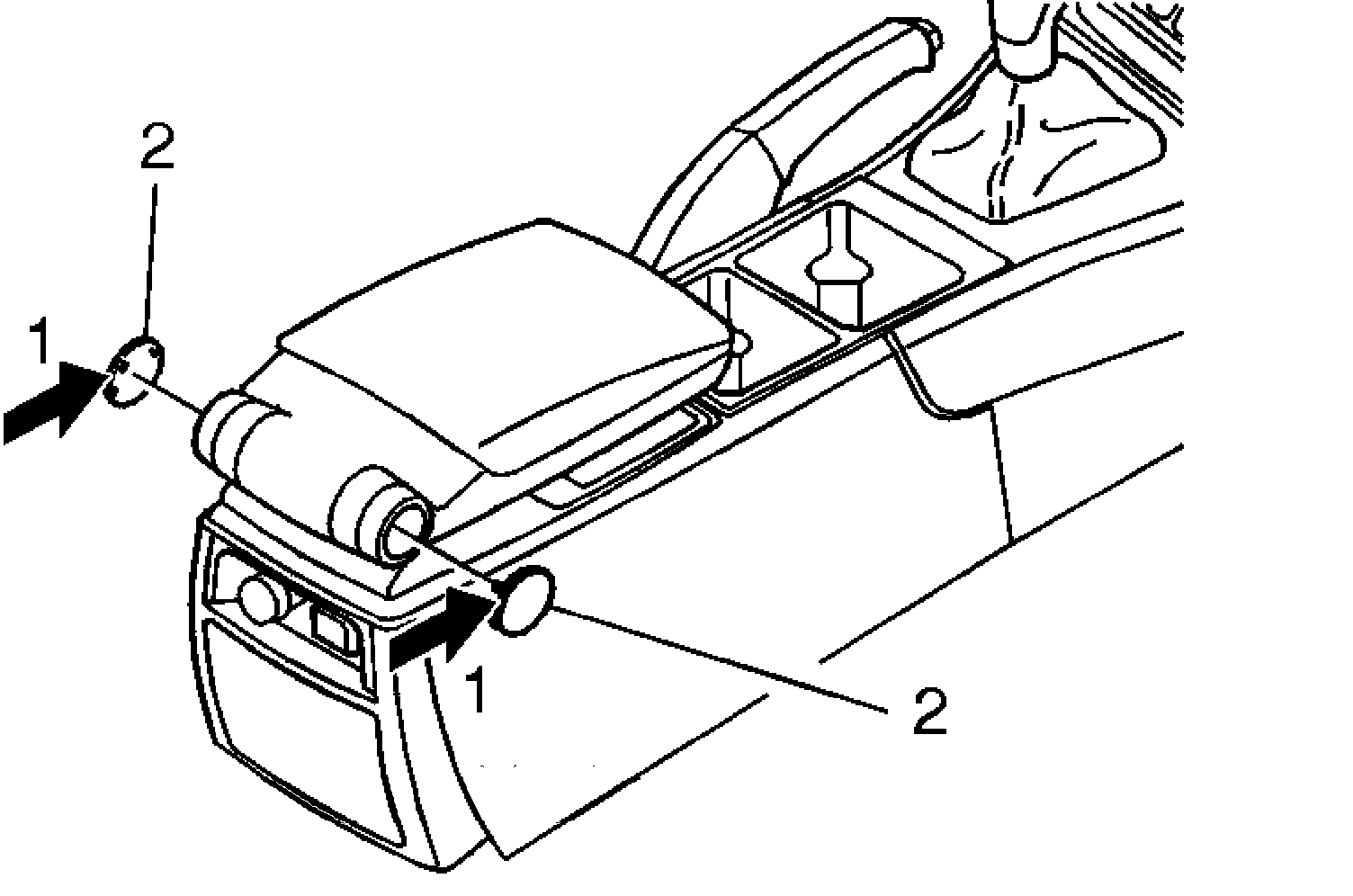

- Carefully remove the cover (2).

HINT: Hold the rear end (1).

NOTE: Use round-nosed pliers.

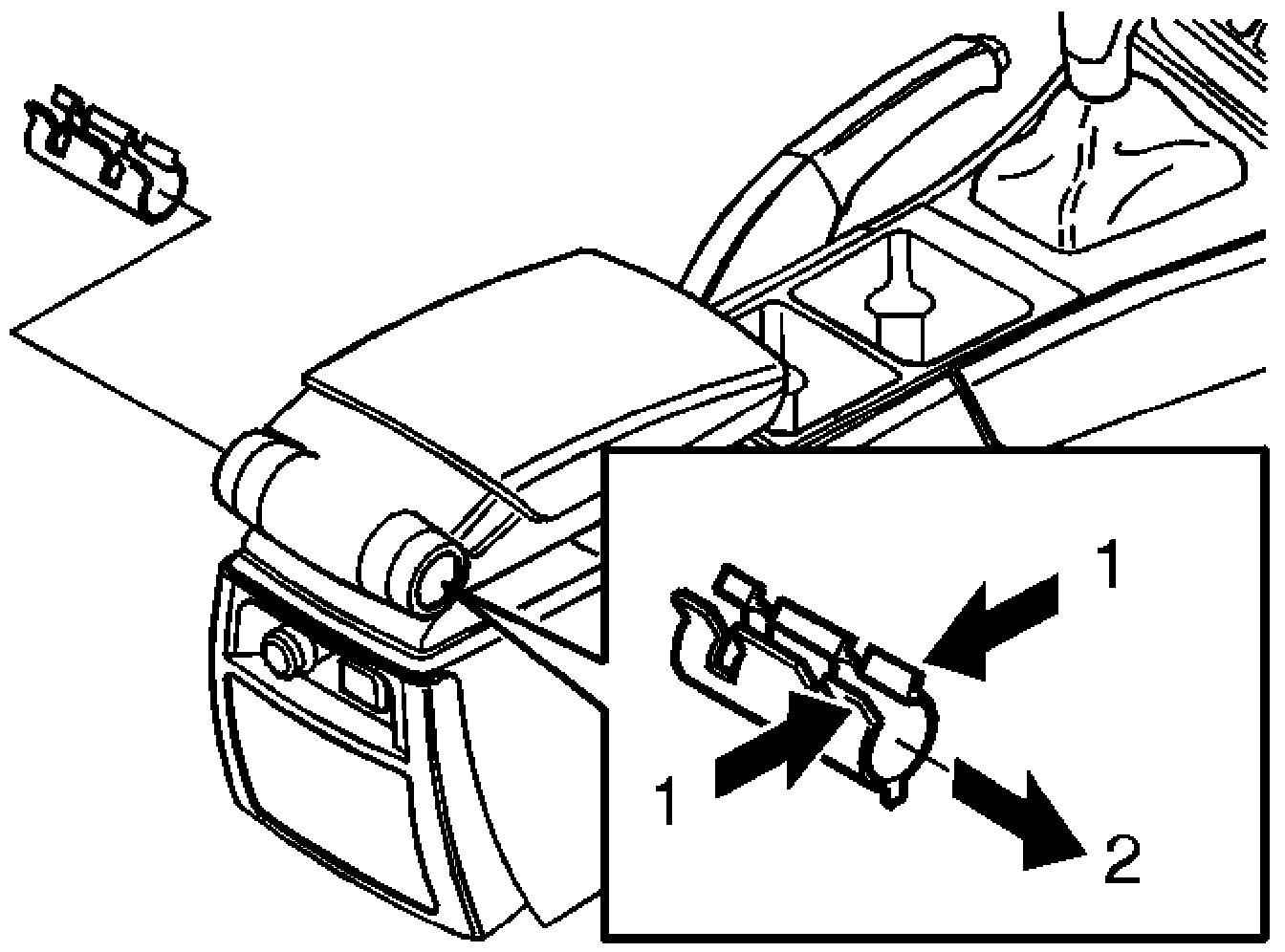

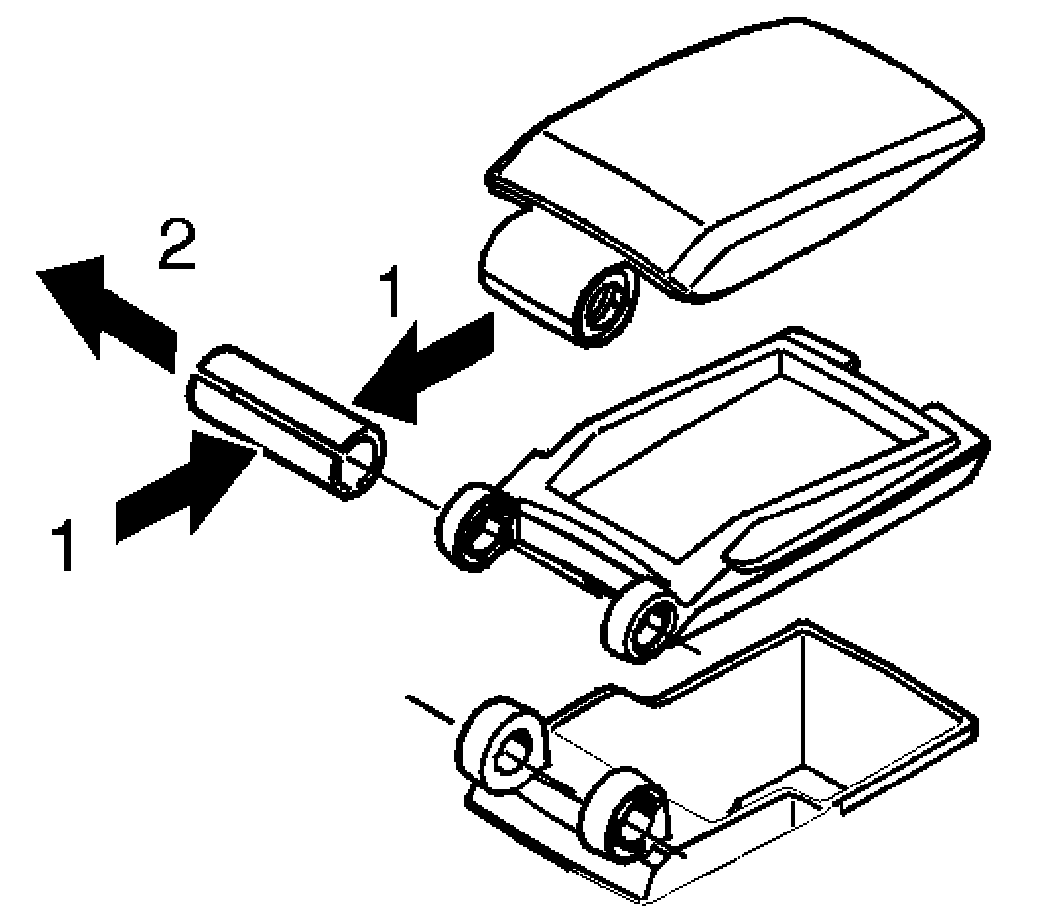

- Remove the catch by pressing it together (1) and pulling it straight out (2).







- Press the shaft together (1) and pull straight out (2).

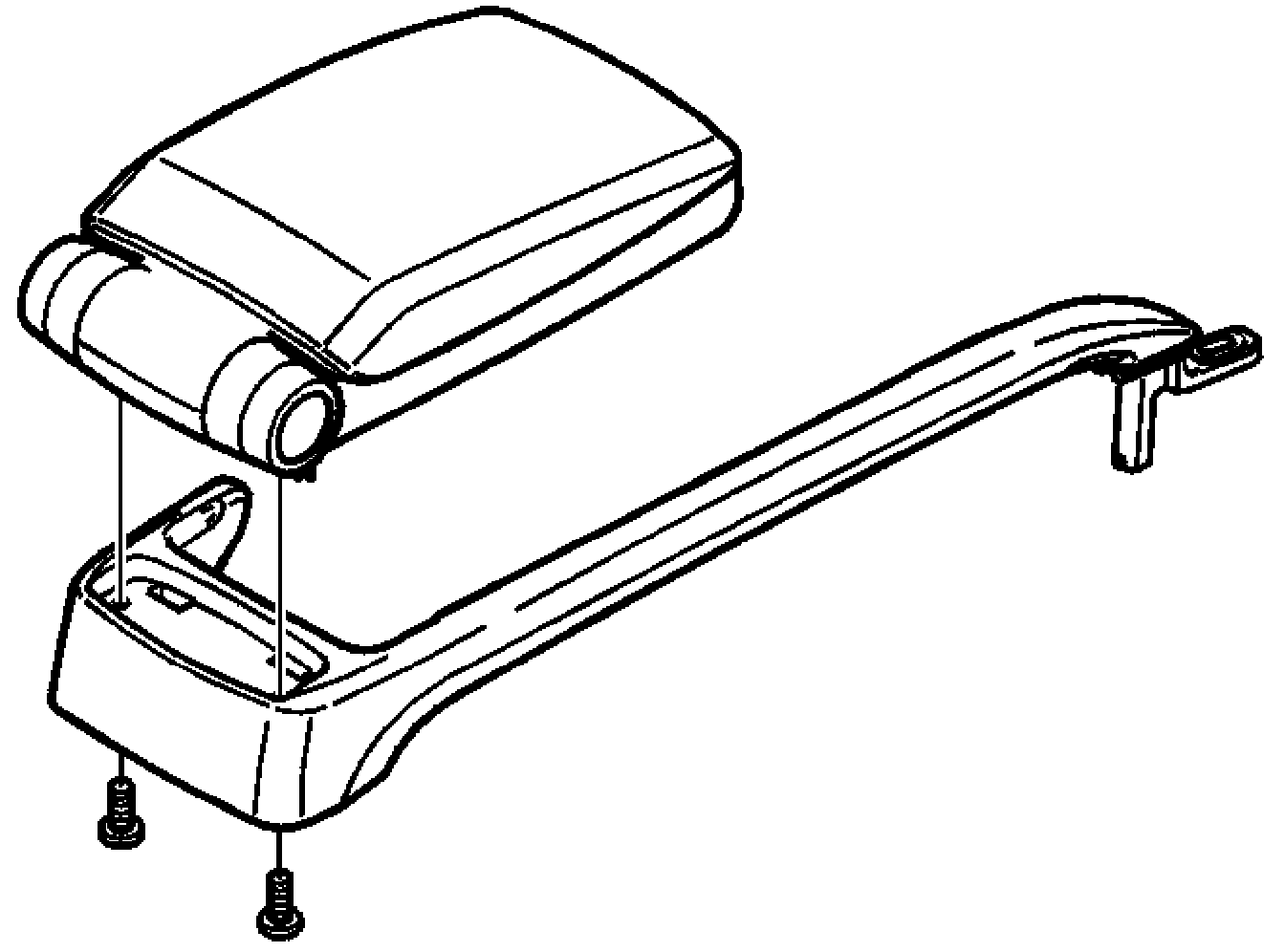

Separate the armrest

Install:
In reverse order.

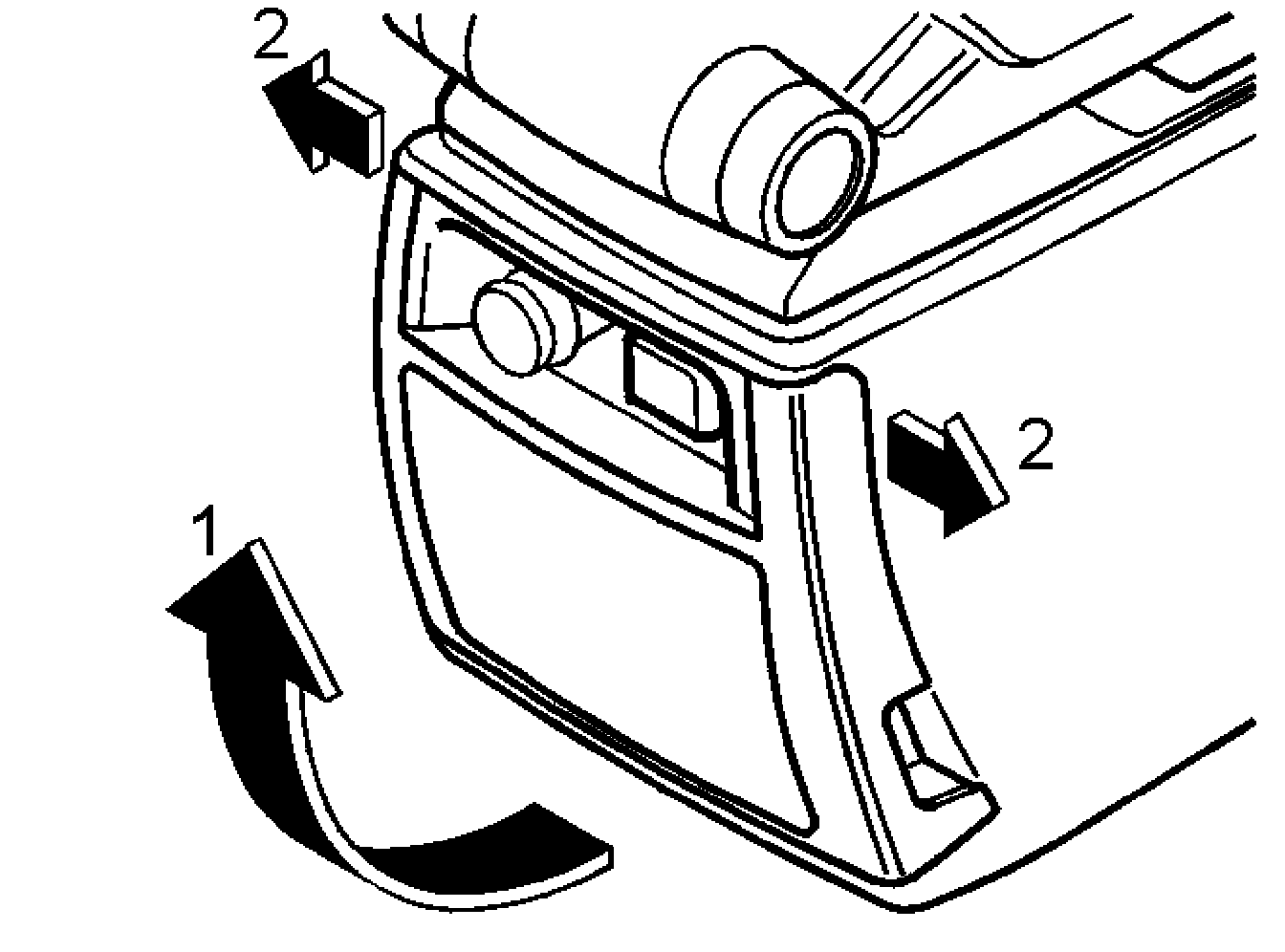

Replacing The Rear Waste Paper Basket







- Pull the waste paper basket backwards and upwards (1)
- Unclip the upper mounting by angling the edges outwards (2)
- Lift out the waste paper basket.

Removing the handset
- Remove the handset.

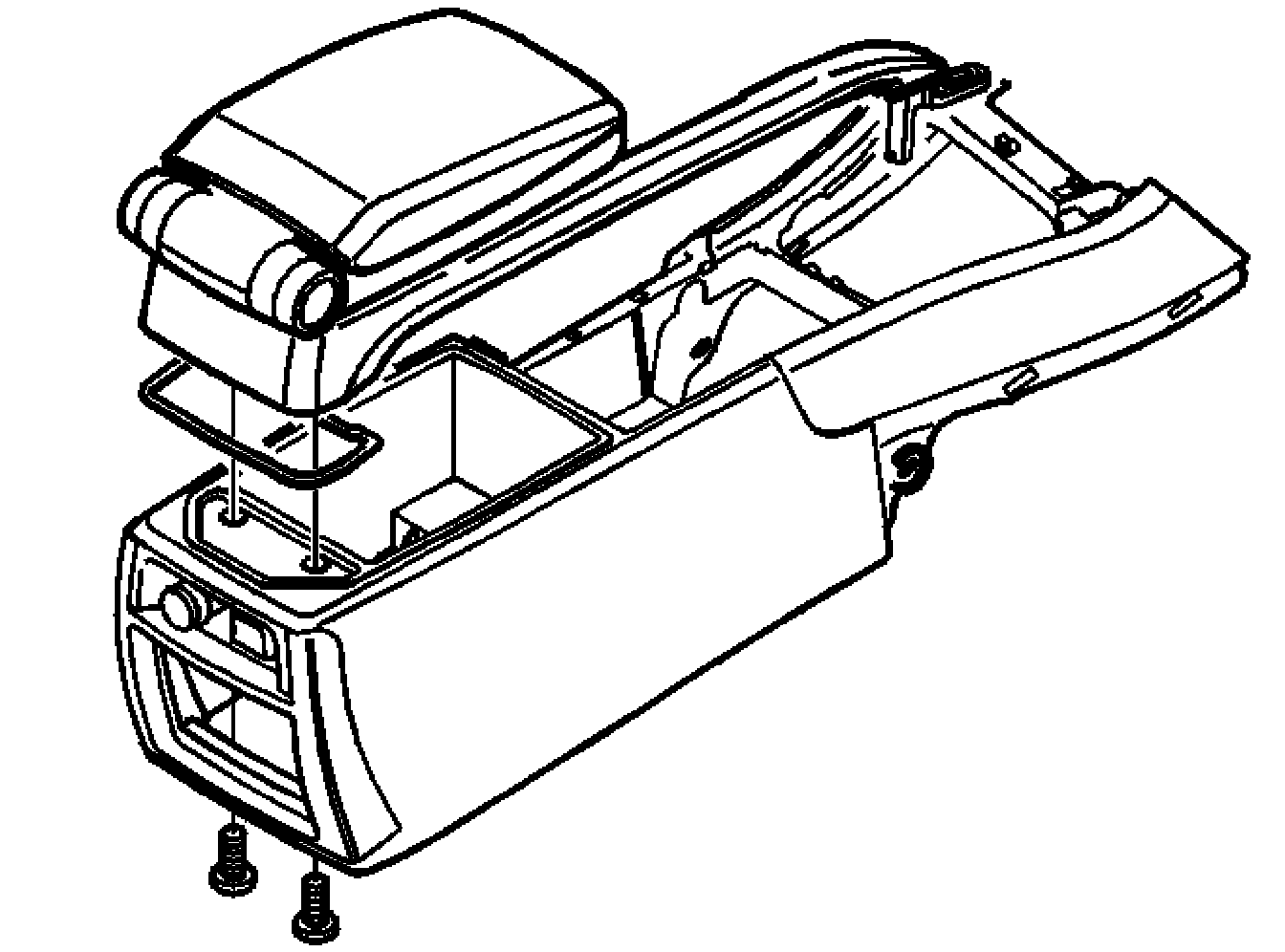

Removing the handle

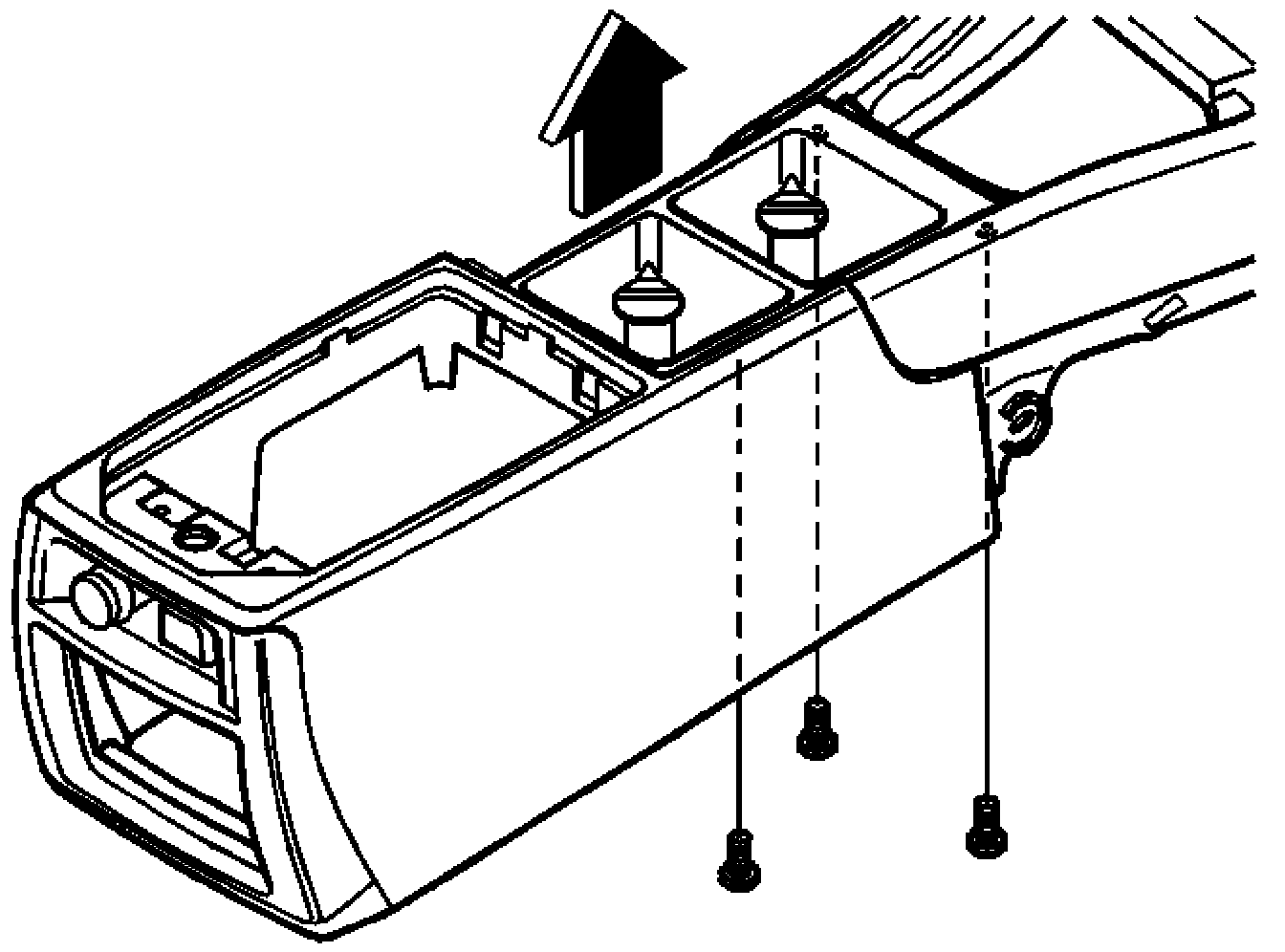

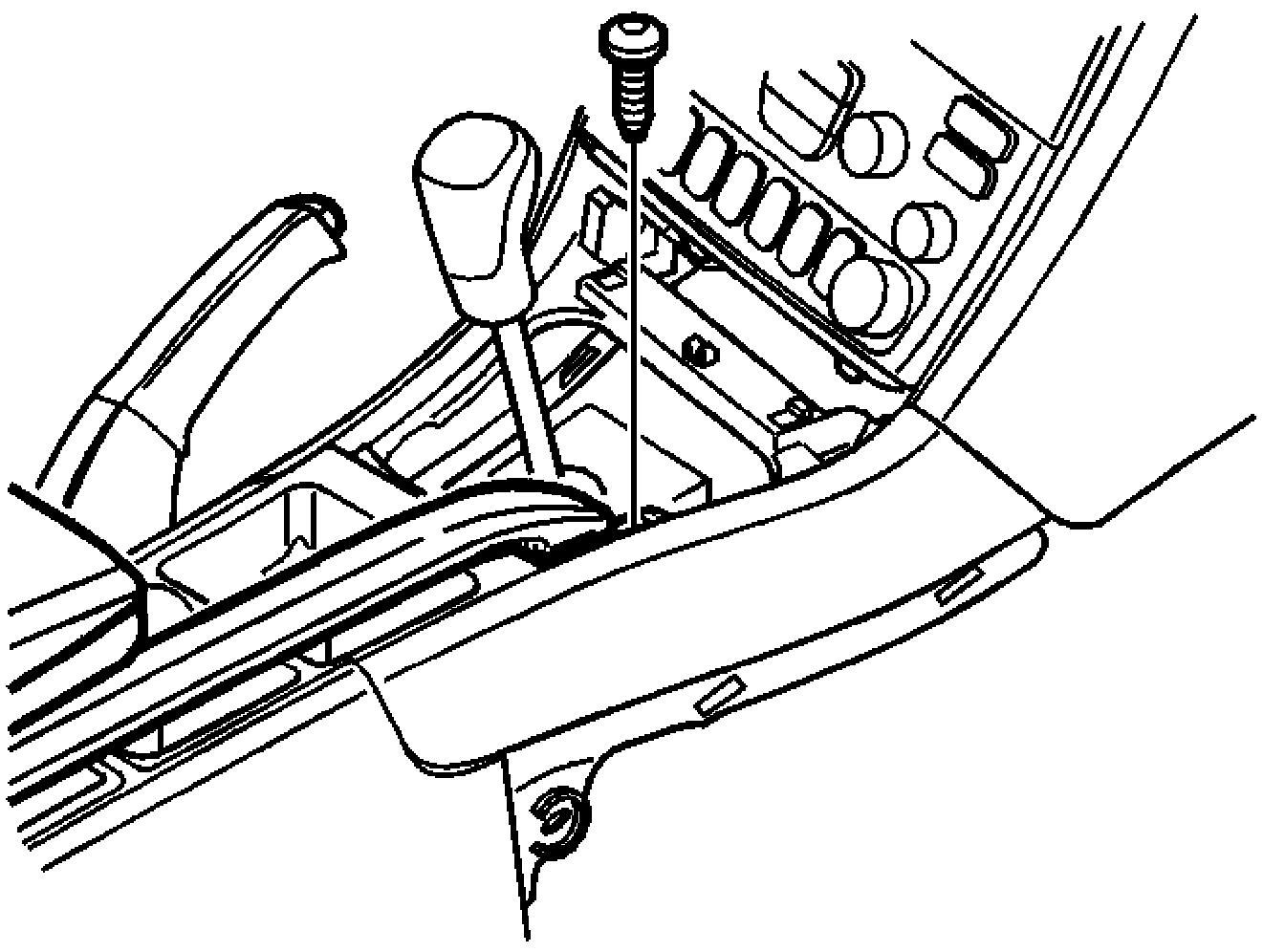

- Remove one screw from the front edge.
- Remove the handle.







- Remove the two screws.
- Press off the handle at the front edge of the center console.







- Remove the two screws from the rear edge.
- Remove the center console locker.

Installing the handle

Install:
- the storage compartment
- the handle
- the center console.
