Table, Rear Centre Armrest

Table, rear centre armrest










Table, rear centre armrest

Installation

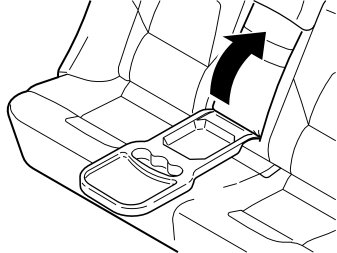

- Fold up the rear centre armrest

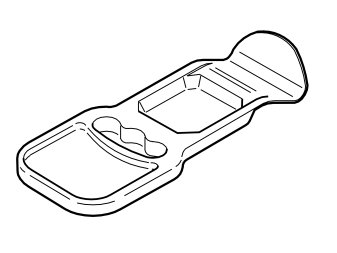

- Insert the angled end of the table in the gap in the lower edge of the armrest.

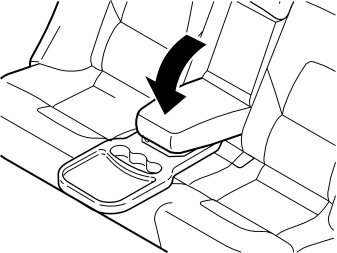

- Fold down both the table and the armrest.

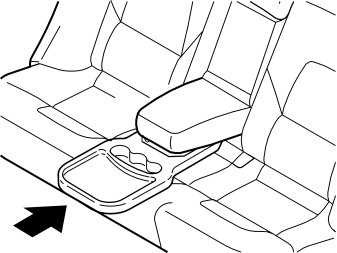

- Press the table backwards as far as it will go.




- Fold up the armrest again.

Use

The table can be used both when the armrest is folded up and when it is down.

Warning! The table must not be in the uppermost position during a journey!When the table is not installed or used it should be stored in the cargo compartment.Injury can be caused in the event of an accident if the instructions are not followed.

Removal

- Fold the armrest and the table to the vertical position
- Carefully pull the table out from the lower edge of the armrest.
