Panel, Tailgate, Replacing

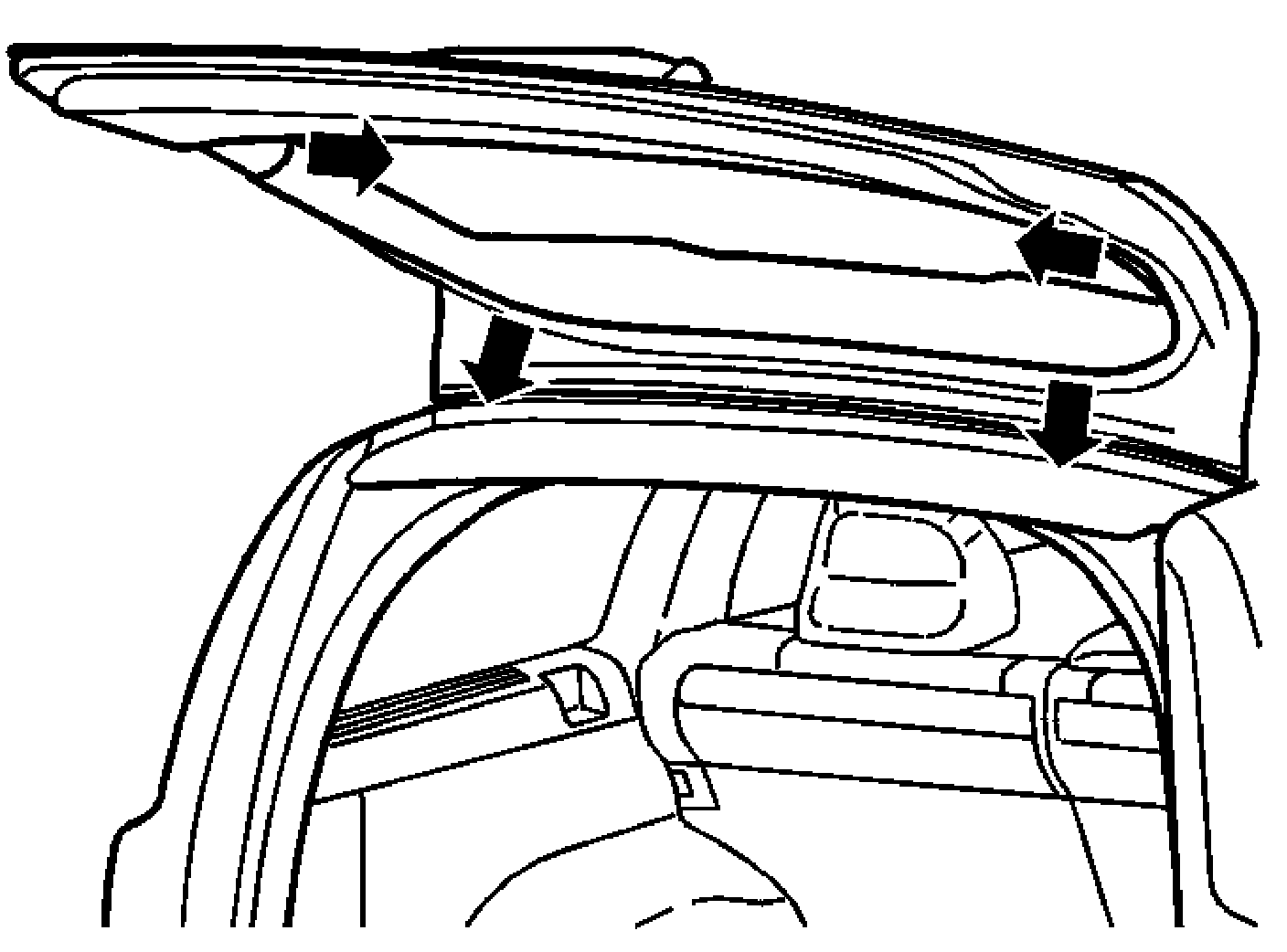

Removing the tailgate panel







- Remove the cargo compartment side panel.
- Detach the two side clips by pulling the sides inwards
- Detach the four covered clips by pulling straight downwards (with the cover folded up completely).

Installing the tailgate panel

Install:
In reverse order.
