System Overview

Rear Electronic Module (REM)

System overview

Control module







The rear electronic module (REM) handles functions for:
- the alarm (certain functions)
- locks (certain functions)
- inclination sensor module (ISM)
- headlamp range adjustment position sensors (Bi-Xenon)
- fuel level (Gasoline/Diesel)
- fuel level
- shut-off valve
- rear fog lamps
- back-up (reversing) lamp
- stop lamps
- high level stop lamps
- rear windshield wiper/washers
- rear demist
- rear 12 V socket

The control module is installed as a separate unit in the rear relay box.

This is under the left-hand cargo compartment panel.

The rear electronic module (REM) communicates with components which are directly connected and also with other control modules and components via serial communication and the control area network (CAN).

The control module checks activations and input and output signals using an integrated diagnostic system A diagnostic trouble code (DTC) is stored if the control module detects an error. In certain cases the control module replaces the faulty signal with a substitute value.

Any diagnostic trouble codes (DTCs) are stored in the control module memory. This information can be read off using VADIS/VIDA via the data link connector (DLC) in the car.

Lock and unlock the rear doors to check whether the rear electronic module (REM) is grounded and powered. The control module is powered and grounded if the doors lock and unlock. Another way to check whether the rear electronic module (REM) is powered and grounded is to switch on the rear fog lamp.

Signals

��N:

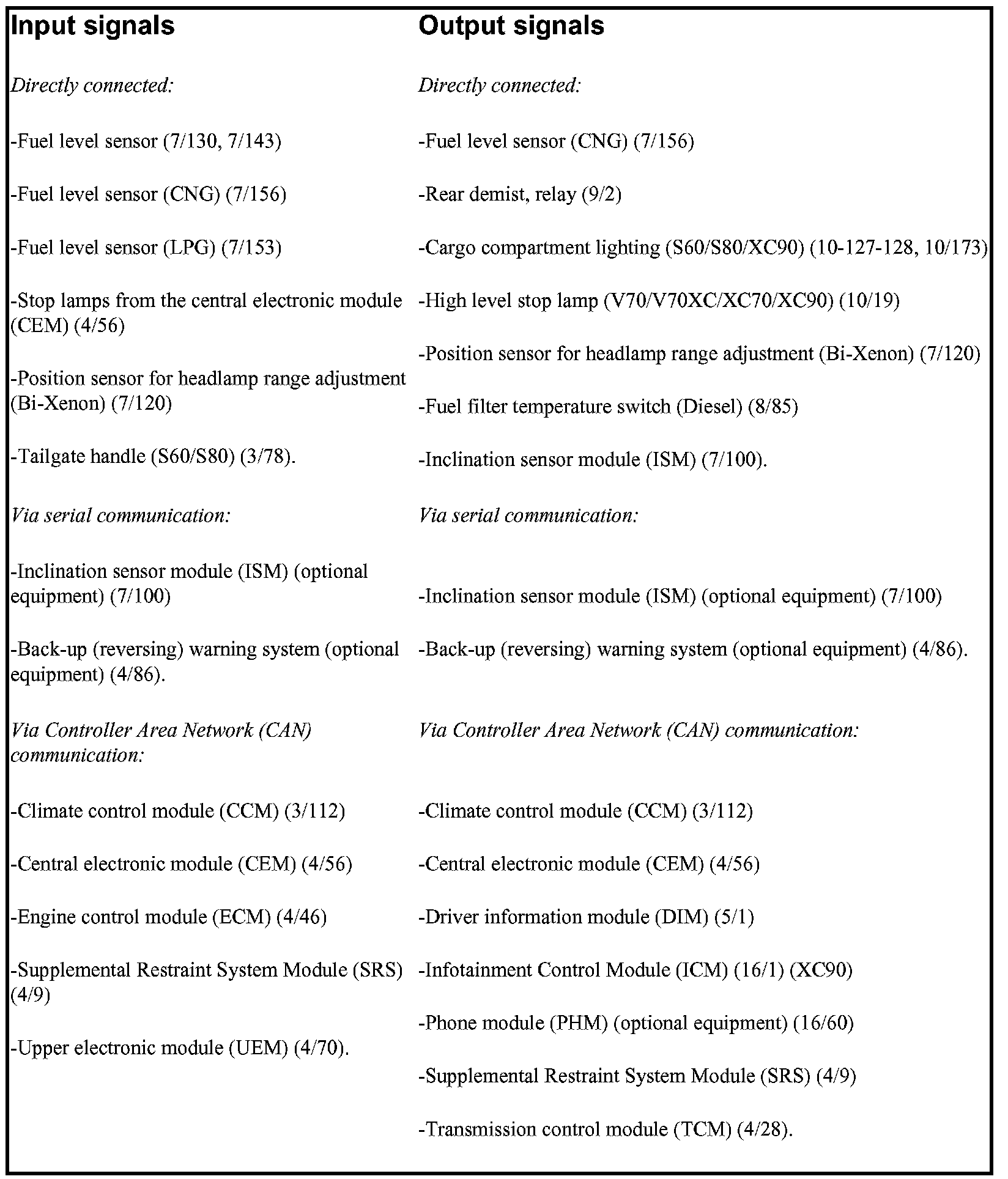

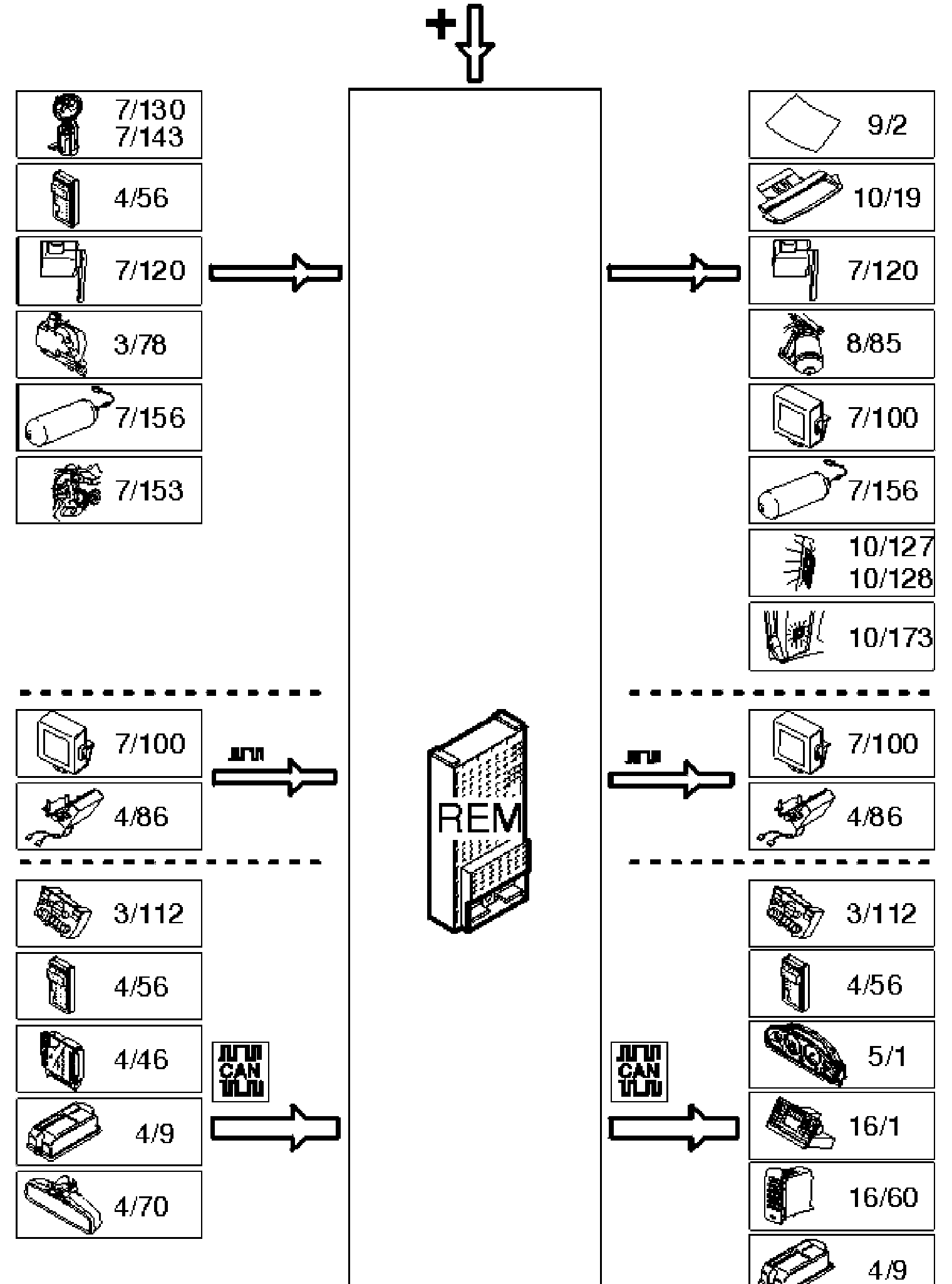

The following table summarizes input and output signals to and from the rear electronic module (REM). The signal types are divided into directly connected signals, serial communication and Controller area network (CAN) communication. The illustration below displays the same information with the Volvo component designations.
