Function

Controlling Functions And Menu Selection Using The Steering Wheel Buttons

Trip computer and displaying/Erasing text messages

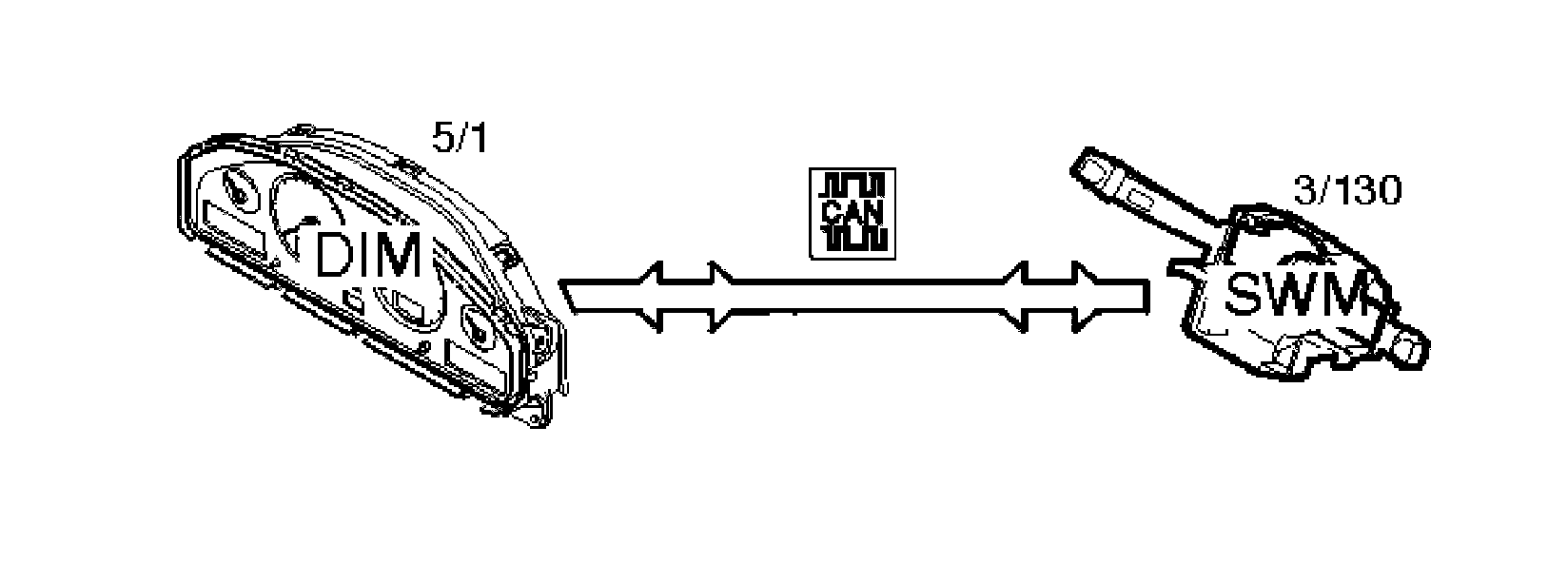

- The left-hand control stalk is used to control the trip computer and to display and erase text messages in the driver information module (DIM) (5/1). The steering wheel module (SWM) (3/130) transmits information to the driver information module (DIM) on the Control area network (CAN) indicating which function is selected.
- The trip computer menu is controlled using the ring on the left-hand control stalk. Turn the ring forwards or backwards to scroll through the menu one step at a time. Some menu selections, such as average speed and fuel consumption, can be reset using the RESET button.
- Error messages displayed in the driver information module display are erased using the READ button.
