Accessory Electronic Module (AEM)

Connecting The Breakout Box. Accessory Electronic Module







- Ignition off
- Expose the accessory electronic module.

Connect adapter 9512843 to the control module connector.

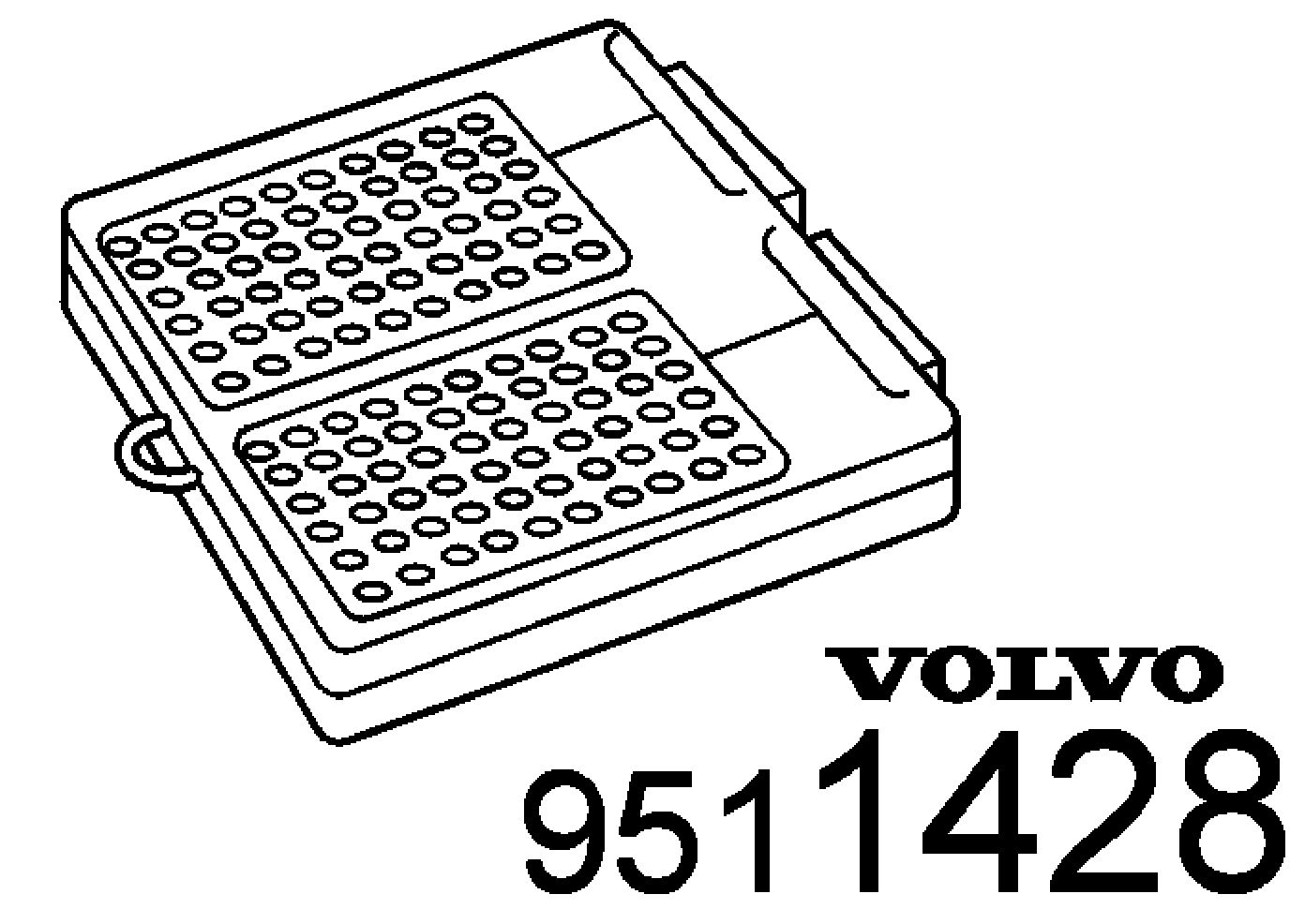

Connect breakout box 9511428 to the adapter.

Disconnect the breakout box in reverse order.

NOTE: Before the central electronic control module can be checked and measurements taken, the removed fuses must first be installed.
