Radio With Large and Normal Front

Radio with large and normal front




























Radio with large and normal front

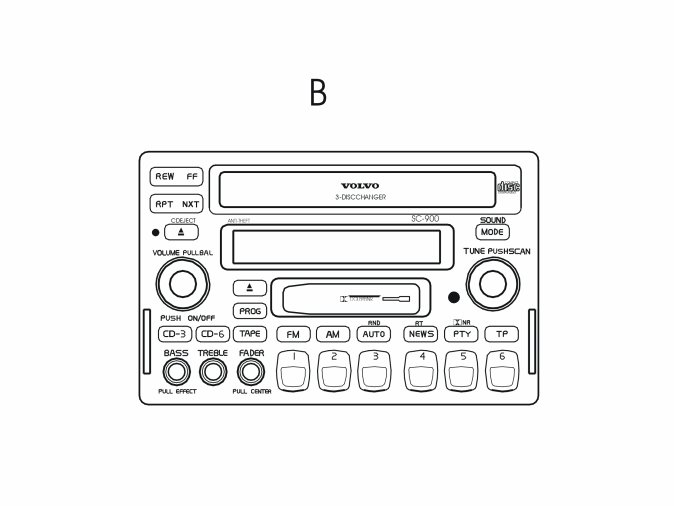

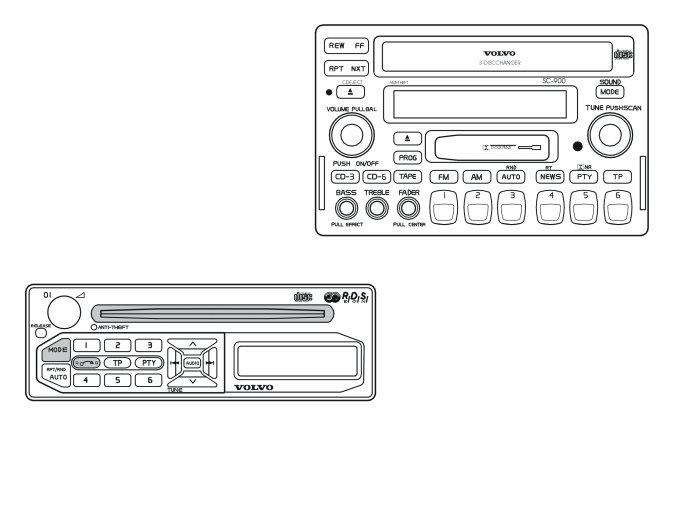

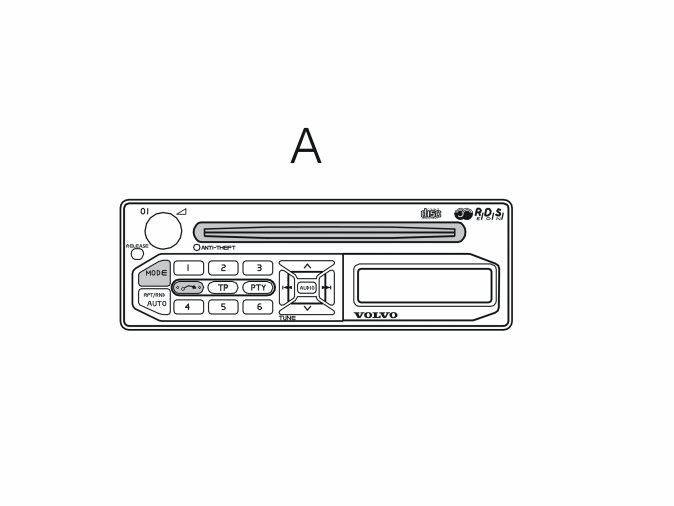

Note! Kit illustration A shows a radio with a small front. Kit illustration B shows a radio with a large front.

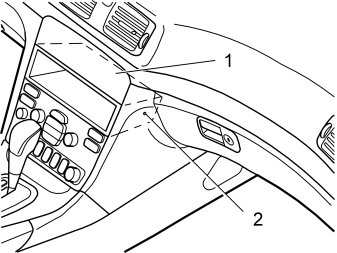

- Remove the cover (1).

Applies only to large fronted radios

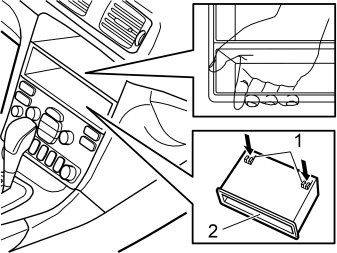

- Insert a hand. Press up the catches (1) in the lower compartment (2). Remove the compartment.




- Pull the wiring out of the radio tray.

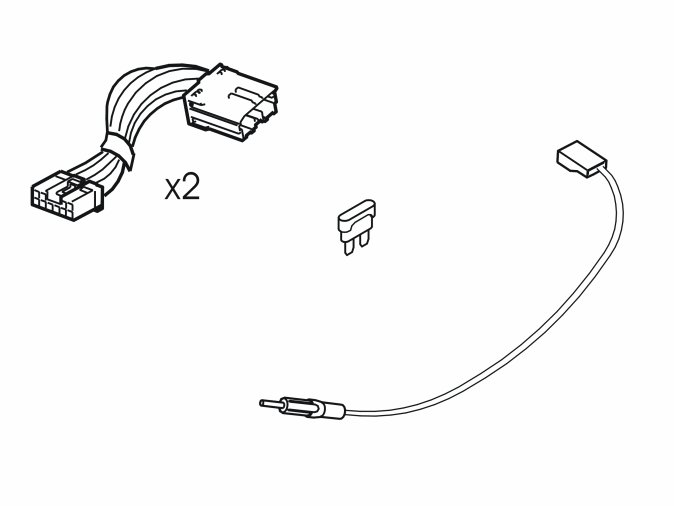

- Connect the adapter cable from the kit between the radio and existing cable.
- Connect the antenna cable and any other wiring.

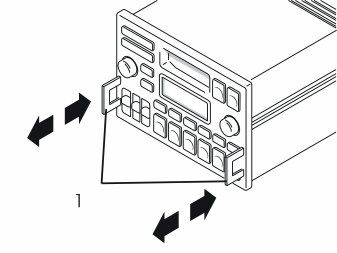

- Pull out the latch handles (1) fully.
- Slide the radio into the compartment.
- Press in the latch handles to lock the radio into place.

Applies to cars which have not previously had a radio installed.




- Remove the cover (1) from the fuse holder.
- Install a 5 A fuse in socket number 15. Install a 20 A fuse in socket number 16.
- Reinstall the cover on the fuse holder.
- Program the software using VCT 2000 according to the service information in VIDA.
- Enter the radio code.
