Garage Door Opener Transmitter: Service and Repair

Remote Controlled Garage Door Opener

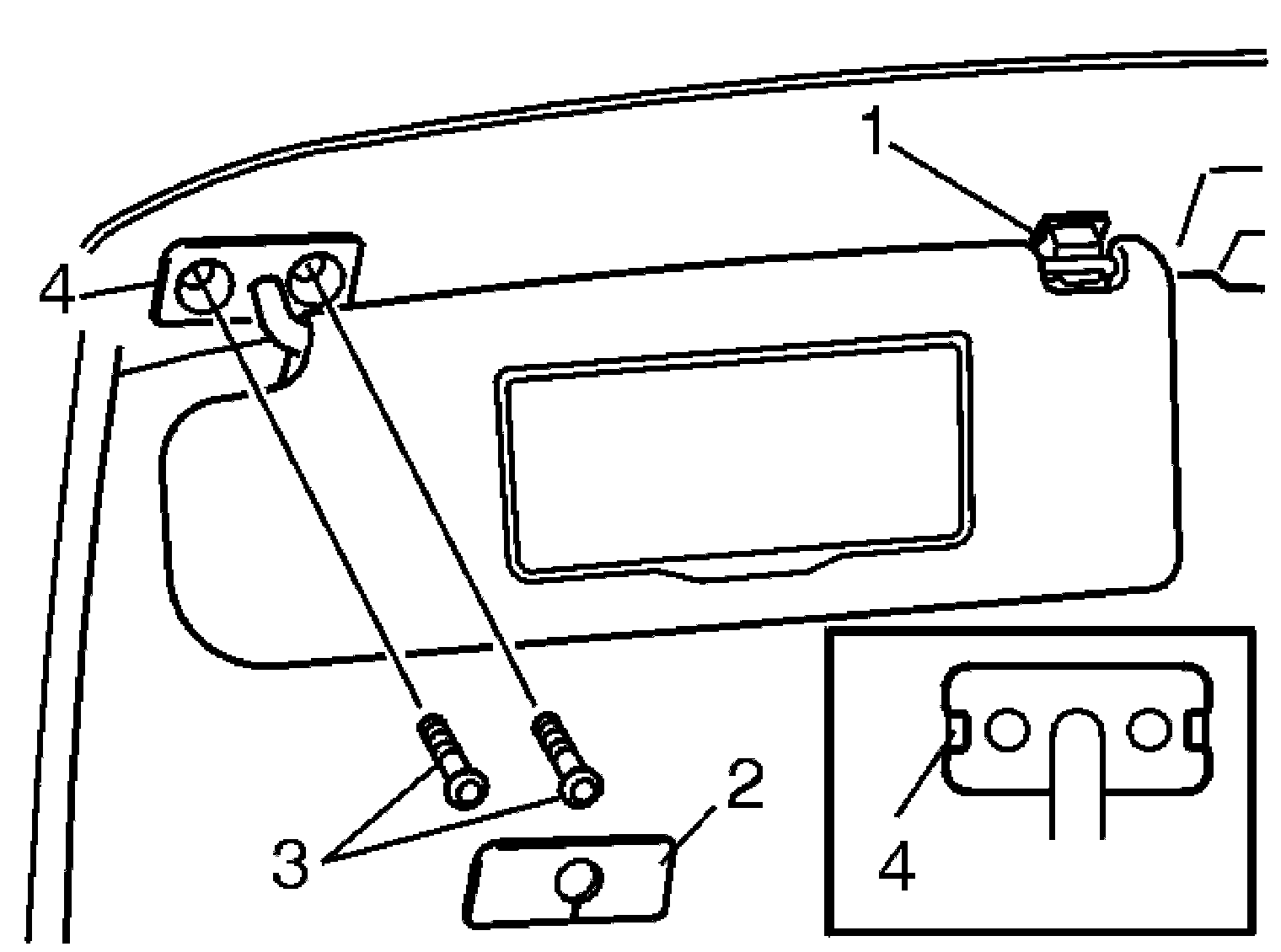

- Remove the sun visor from the mounting (1)
- Carefully pry the panel (2) off
- Remove the screws (3)
- Press in the catches (4). At the same time remove the sun visor.

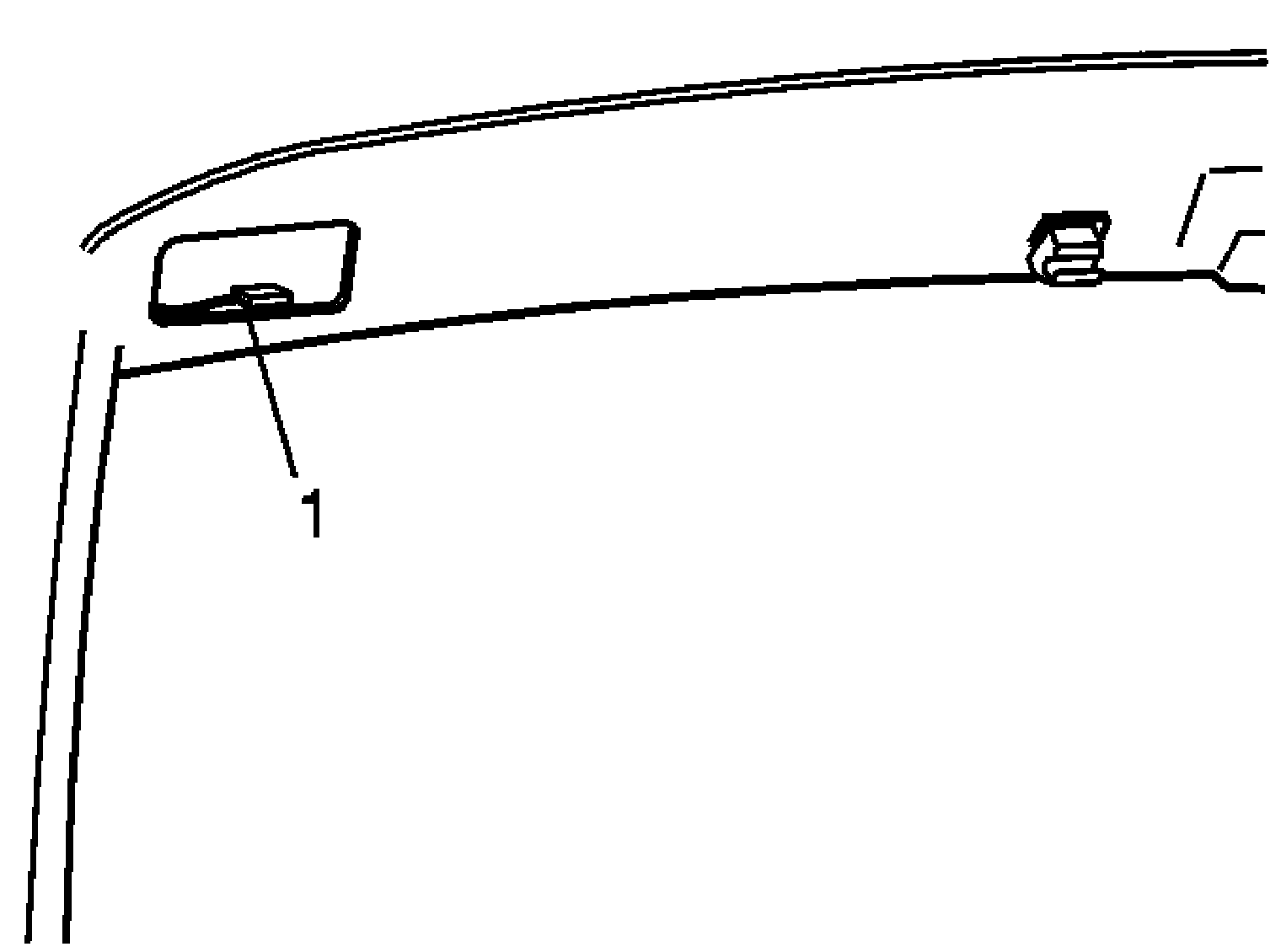

- Connect the new sun visor connector to the prerouted cable (1)
- Secure the connector in the holder
- Insert any excess cable inside the panel
- Press up and screw the mounting into place
- Reinstall the panel.
