TV Receiver, Replacing

TV receiver, replacing

Removal




- Remove the CD player and its holder without removing the switches. See RTI CD reader RTI CD reader
- Disconnect the connectors.

Note! The DIN connector and terminal on the receiver are marked yellow.

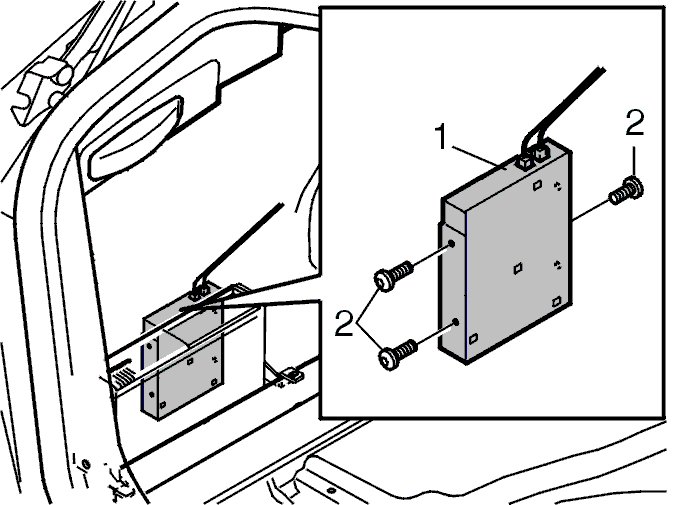

- Slacken off the front and rear screws for the receiver. Remove the receiver.

Installation

- Install the receiver. Tighten the screws
- Install the connector.

Note! The DIN connector and terminal on the receiver are marked yellow.

- Install the CD player and the holder. See RTI CD reader RTI CD reader.
