Cars equipped with SRS/SIPS (Airbag)

Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must be carried out by an authorised Volvo workshop.

Is the car equipped with SRS/SIPS?
Cars with SRS are most easily recognised by the letters SRS on the steering wheel pad. If the car also has an airbag on the passenger side, the letters SRS are embossed on the dashboard above the glove compartment. SIPS decals are located on the seat panels and the windscreen.

Do not damage the SRS wiring!
Do not trap, fray, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.

Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the SRS service information for information on carrying out such work. This is to prevent damage.

SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorised Volvo workshop.

SRS collision sensor control module






S60 / V70 (00-) / S80
The collision sensor control module is located on the transmission tunnel in the centre console, beside the parking brake. The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery, within these areas. The panels must be able to open in the correct way and at the right time.






WARNING!
The ignition must be in position "0" and the key removed from the ignition if any connector in the SRS system is to be disassembled. Then wait at least five minutes. Then disconnect the battery negative lead before disassembling any of the connectors.






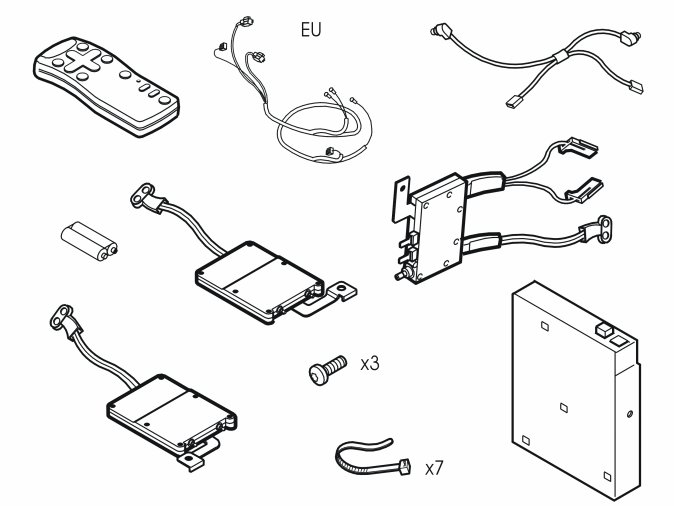

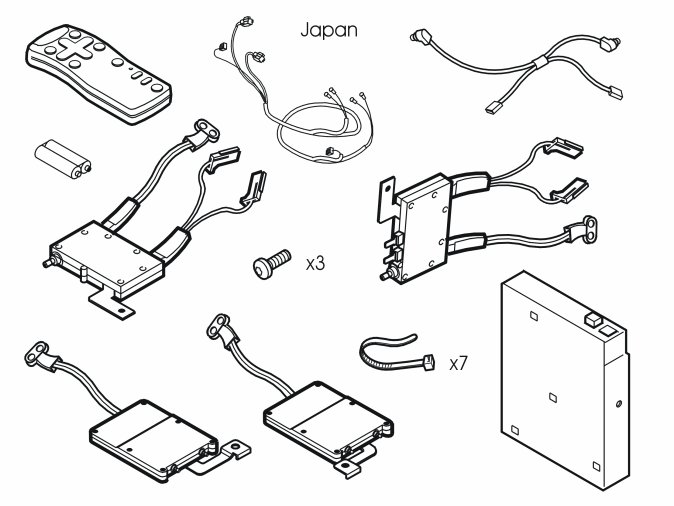

TV/DVD

Note! Applies only to Europe: A new rear windscreen must be installed if the present windscreen does not have an integrated aerial.

Note! This accessory requires software unique to the car.

Interior preparations




- Turn the ignition key to position O. Remove the ignition key from the ignition switch.

Note! Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

- Disconnect the battery negative lead.




- Remove the seat cushion (1). First pull the front edge of the seat cushion up. Pull the cushion forwards. Then lift the seat cushion out.




- Fold both the rear backrests forward
- Remove the seat belts from the guides (1).




- Remove the clip (1) at the side of the left-hand side cushion
- Pull the top edge of the left-hand front cargo compartment panel out to access the upper lock for the side cushion
- Repeat the operation on the right-hand side.




- Remove the left-hand side cushion. First press in the catches (1) at the top edge of the reverse of the side cushion. Pull the cushion out slightly
- Grasp the cushion using both hands. Twist anti-clockwise until the catches on the inside release
- Remove the side cushion. First pull out the upper edge of the side cushion. Then pull upwards
- Repeat the operation on the other side.




- Remove the cover and the screw for the left-hand C-post panel
- Repeat the operation on the other side.




- Remove the rubber strip at the rear edge on the left-hand rear door frame
- Grasp the top edge of the C post panel. Pull (A) the panel inwards until the three clips (1) release
- Then pull (B) the panel straight up. Place the panel to one side
- Repeat the operation on the other side.




- Carefully lift the front edge of the parcel shelf panel until the clips (1) release
- Lift up the panel further until the locating pins (2) release from their holes
- Pull out the parcel shelf. Lay the parcel shelf on the folded backrests.

Cargo compartment preparations




- Remove the cargo compartment carpet at the rear edge. First turn the two handles (1) 90°.




- Pull up the front of the cargo compartment carpet. Fold the front half back over the rear half of the cargo compartment carpet.




- Slide the entire cargo compartment carpet forward slightly. Twist slightly to remove the carpet through the tailgate opening
- Remove the cargo compartment carpet.




- Press the centre of the clips at the lower edge of the foldable side panel on the left-hand side until they click
- Remove the two clips
- Remove the plastic nut at the front lower edge of the side panel.





Remove:
- the clips (1) in the left front side panel in the cargo compartment
- the panel. Place the panel to one side.

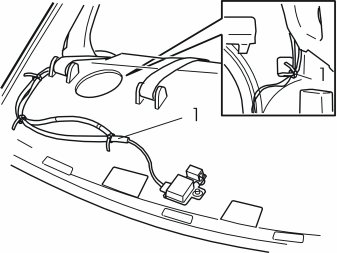

- Remove the cable (1) between the GPS aerial on the parcel shelf and the DVD reader (the black single cable in the rear edge of the DVD reader)
- Place the cable to one side. The amplifier will not be reused. There is a new cable harness in the kit.

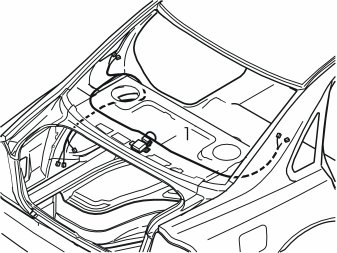

- Route the new cable harness (1) in the same way as the old harness
- Position the connectors for the cable harness at the C-posts and at the rear edge of the wheel house. See the illustration
- Press the cable harness into place in the parcel shelf with the existing clips
- Connect the connector to the GPS aerial.





Applies to Japan

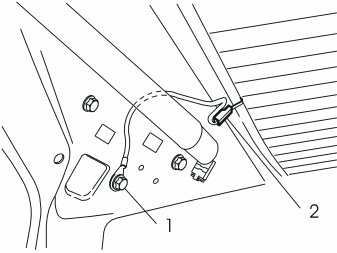

- Remove the ground lead for the rear windscreen. First remove the screw (1). Remove the connector (2) from the rear windscreen at the right-hand C-post
- Place the ground lead and the screw to one side. They will not be reused.

Applies to Europe
- Remove the screw (1). Remove the ground lead from the C-post. A new screw is included in the kit.

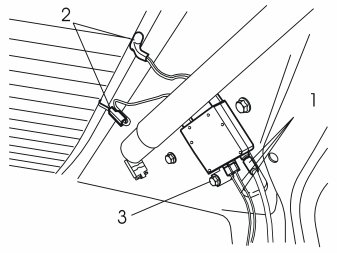

- Remove the cables (1, 2) for the existing aerial amplifier on the left C-post
- Remove the screw (3). Remove the aerial amplifier
- Place the aerial amplifier to one side. The amplifier will not be reused.

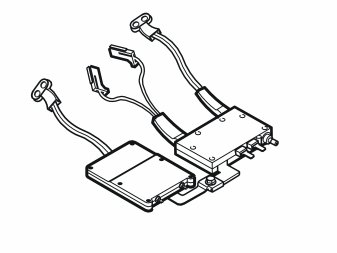

- Connect the new TV aerial amplifier (blue) to the new AM/FM aerial amplifier (blue) from the kit.

Applies to Japan
- Carry out the same operation with the new green aerial amplifiers.

Applies to Europe
- For the EU only use the small green TV aerial amplifier.

Applies to Japan




- Install the new AM/MPX and TV aerial amplifiers (green) on the right C-post. Ensure that the aerial amplifier guide lugs engage in the two rectangular holes and in the small round holes
- Tighten the amplifiers
- Repeat the operation for the left-hand AM/FM and TV aerial amplifier (blue).

Applies to Europe




- Install the small green TV aerial amplifier for the right hand C post in the rear position with the ground lead cable terminal on top. Tighten the aerial amplifier
- Ensure that the guide lugs for the amplifier are in their holes
- Repeat the operation for the left-hand AM/FM and TV aerial amplifier (blue).

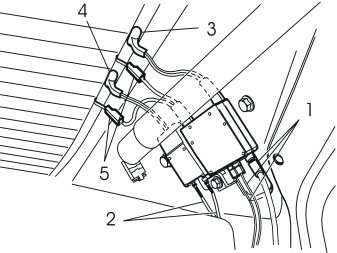

- Reinstall the cables (1) (that were removed earlier) in the front aerial amplifier on the left C-post
- Connect the two single cables (2) (previously routed) to the rear aerial amplifier on the left C-post
- Connect the cables (3, 4, 5) to the connectors on the rear windscreen as illustrated.

Applies to Japan




- Connect the two single cables (1) (previously routed) to the rearmost of the two amplifiers on the right C-post
- Connect the cables (2, 3, 4) to the connectors on the rear windscreen as illustrated.

Applies to Europe

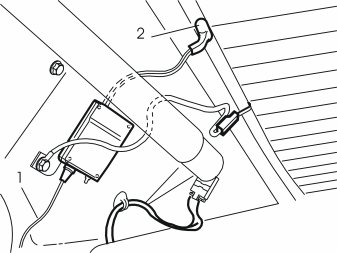

- Connect the single cable (1) (previously routed) to the front terminal in the TV aerial amplifier on the right C-post as illustrated
- Connect the cables (2) to the connectors on the rear windscreen as illustrated.

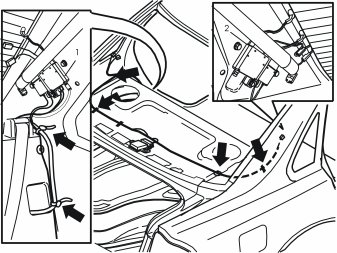

- Clamp the cables on the parcel shelf, at the C-post and at the lead-in to the cargo compartment. See the arrows in the illustration.




- Remove the three screws (1) holding the DVD reader and the bracket at the body
- Carefully pull the unit outwards slightly. Position the unit in front of the battery.




- Tighten the TV tuner on the bracket using the three screws from the kit.

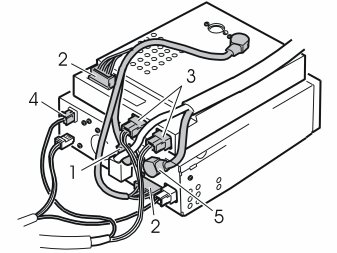

- Connect the DIN cable (1) and the cable with the green connectors (2) from the kit between the DVD reader and the TV tuner
- Connect the two connectors (3) from the aerial amplifiers at the C-posts to the TV tuner
- Connect the new cable (4) from the GPS aerial.




- Reinstall the DVD reader with the TV tuner. Tighten using the three screws. Tighten to 10 Nm (7.5 lbf.ft.)

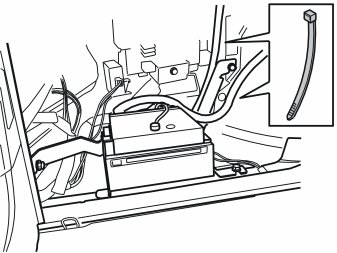

- Secure the wiring at the DVD reader / TV tuner using a tie strap from the kit.

Reinstall:
- the parcel shelf panel
- the C-post panels
- the side cushions
- the backrests
- the seat cushion
- the panels in the cargo compartment.




- Turn the ignition key to position II
- Reconnect the battery negative lead
- Reinstall the cargo compartment carpet
- Program the software according to the service information in VIDA.
