Signal Outside Its Permitted Range

Signal outside its permitted range

Checking the connectors




- Ignition off
- Check the connectors on the anti-lock brake system module (ABS) and the yaw rate sensors for contact resistance and oxidation.
- Reinstall the components, reconnect the connectors etc.
- Ignition on
- Read off the present value.
The reading should be approximately 2.5 V.

Other information:
- Signal specification, ABS / DSTC (dynamic stability and traction control) control module Signal Specification
- Replacing ABS / DSTC (dynamic stability and traction control) control module Replacing ABS / DSTC (Dynamic Stability and Traction Control) Control Module
- Replacing the yaw rate sensor (1) and the lateral acceleration sensor in the center console (DSTC) Service and Repair
- Replacing the yaw rate sensor (2) (DSTC) Replacing the Yaw Rate Sensor (2) (DSTC)
- Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault













Were the values OK?

Yes - Fault Found

No - Checking wiring and sensors

-------------------------------------------------

Checking wiring and sensors




- Ignition off

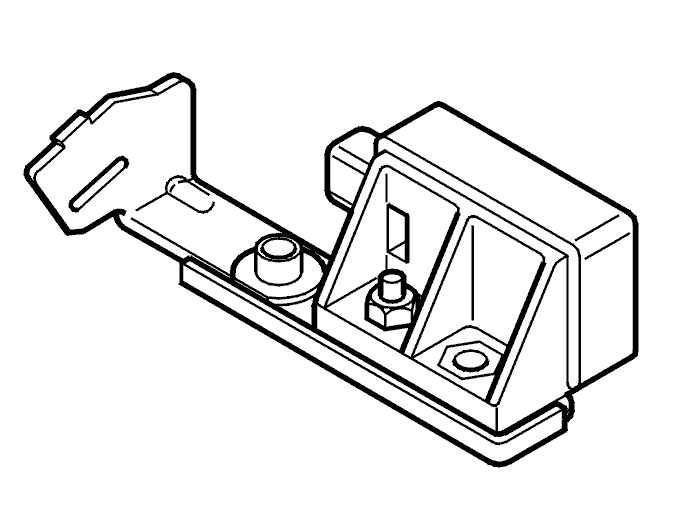

Check the connectors and yaw rate sensors 1 and 2 for damage. Check that yaw rate sensors 1 and 2 are correctly installed and that the bracket is secured.

Hint: Check the yaw rate sensors by measuring the signal to the sensors with the ignition switched on:

For yaw rate sensor 1 between:
- terminals #42 and #27 on the breakout box. The voltage must be 2.5 V
- terminals #11 and #27 on the breakout box. The voltage must be approximately 5 V.

For yaw rate sensor 2 between:
- terminals #14 and #45 on the breakout box. The voltage must be approx. 2.5 V.
- terminals #30 and #45 on the breakout box. The voltage must be approximately 5 V.
Remedy as necessary.

Other information:
- Connecting the ABS/DSTC breakout box Pinout Values and Diagnostic Parameters
- Signal specification, ABS / DSTC (dynamic stability and traction control) control module Signal Specification
- Replacing the yaw rate sensor (1) and the lateral acceleration sensor in the center console (DSTC) Service and Repair
- Replacing the yaw rate sensor (2) (DSTC) Replacing the Yaw Rate Sensor (2) (DSTC)





Was a fault detected?

Yes - Verification

No - No Fault Found

-------------------------------------------------

Verification




Verification

Verification

Hint: After the repair it is necessary to check that the fault has been rectified.








- Ignition off.
- Connect the connectors, install the components, etc.
- Ignition on.
- Check that the ABS warning lamp lights and goes out after approximately 2 seconds. If the lamp does not go out, the fault has not been rectified.
- Test-drive the car as described in Test driving Test Driving.
Check the ABS warning lamp during the test drive. If the warning lamp lights, return to the workshop and read the diagnostic trouble codes.





Does the lamp go out and stay out?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - Fault Found

VERIFICATION FAILED - Fault-tracing information

PAPER - No Fault Found

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - FAULT-TRACING FAILED

No - Attempt New Test

------------------------

FAULT-TRACING FAILED - FAULT-TRACING FAILED

Attempt New Test - Checking the connectors

-------------------------------------------------
