Ambient Temperature Sensor / Switch HVAC: Specifications

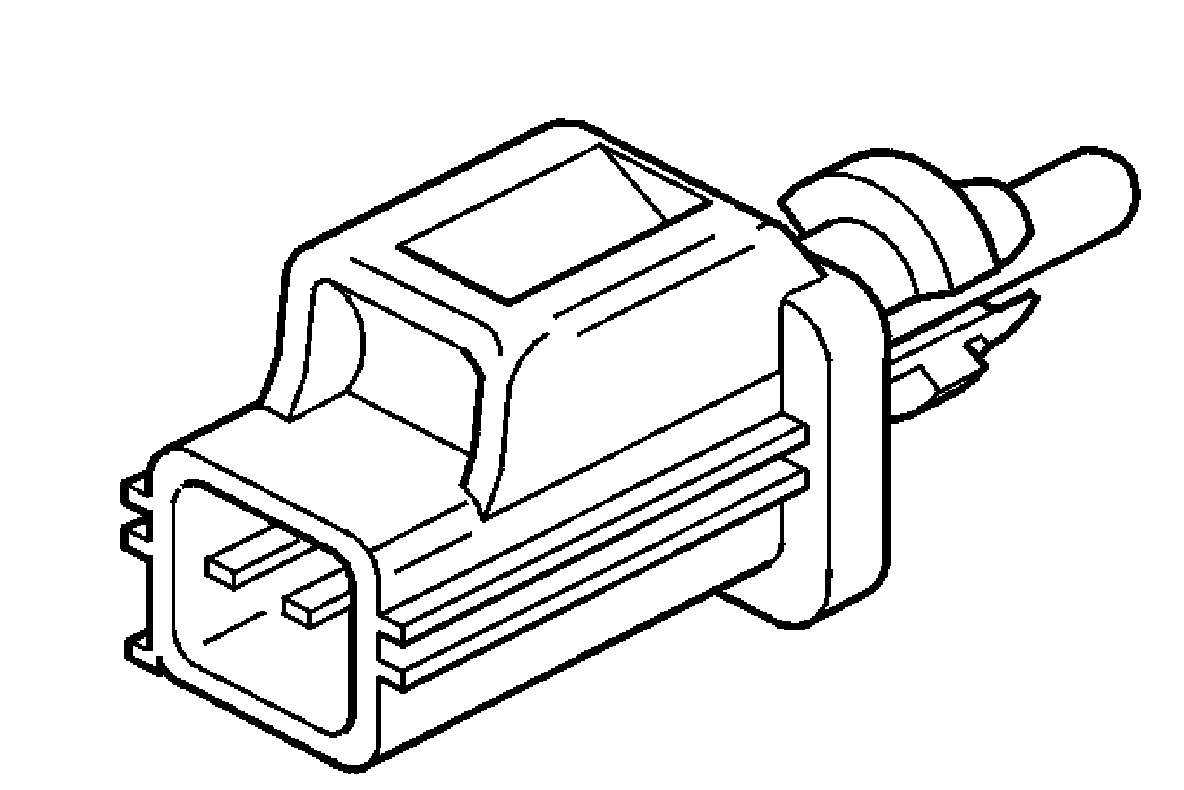

Outer Temperature Sensor







NTC resistance.

Temperature (degree C) R (Ohms) V (Volts)
0 6318 4.32
10 3857 3.97
20 2424 3.54
25 1941 3.30
30 1513 3.00
