Clutch Switch: Specifications

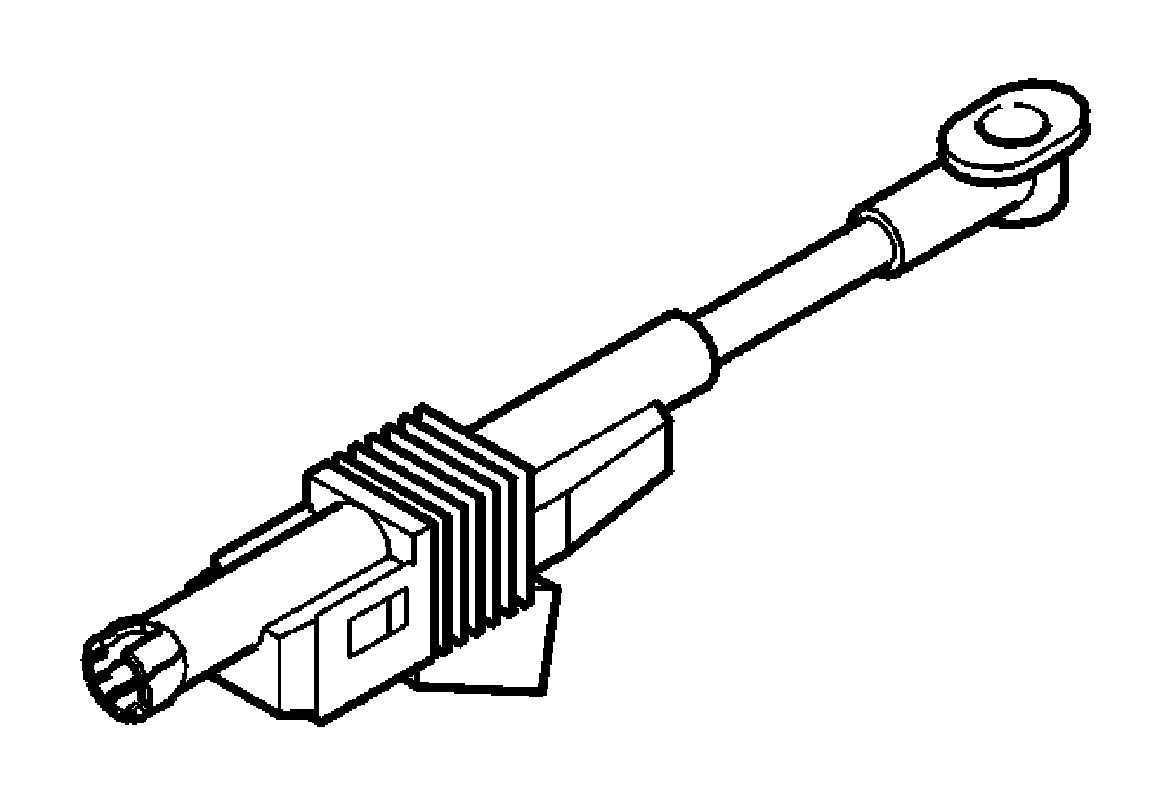

Clutch Pedal Sensor







Self-adjusting.

Position (mm) R (Ohm)
0 1500 - 2500
25 1000 - 2000
50 750 - 1750
100 500 - 1000
