Road Traffic Information (RTI)

Signal Specification, RTI

Connecting the breakout box and checking the ground terminal

NOTE: Before taking readings, the breakout box must be connected and the ground terminal must be checked.

Definitions

DC voltage in volts (V)
Ulow = Voltage near V
Ubat = Battery voltage

RTI control module













The RTI control module terminals A1-A22 correspond to terminals #1- #22 on the breakout box.

RTI control module (to TV receiver)













The RTI control module terminals B1-B14 correspond to terminals #43- #56 on the breakout box.

RTI control module (to display)













The RTI control module terminals C1-C16 correspond to terminals #25- #40 on the breakout box.

RTI control module (to CD-ROM changer)

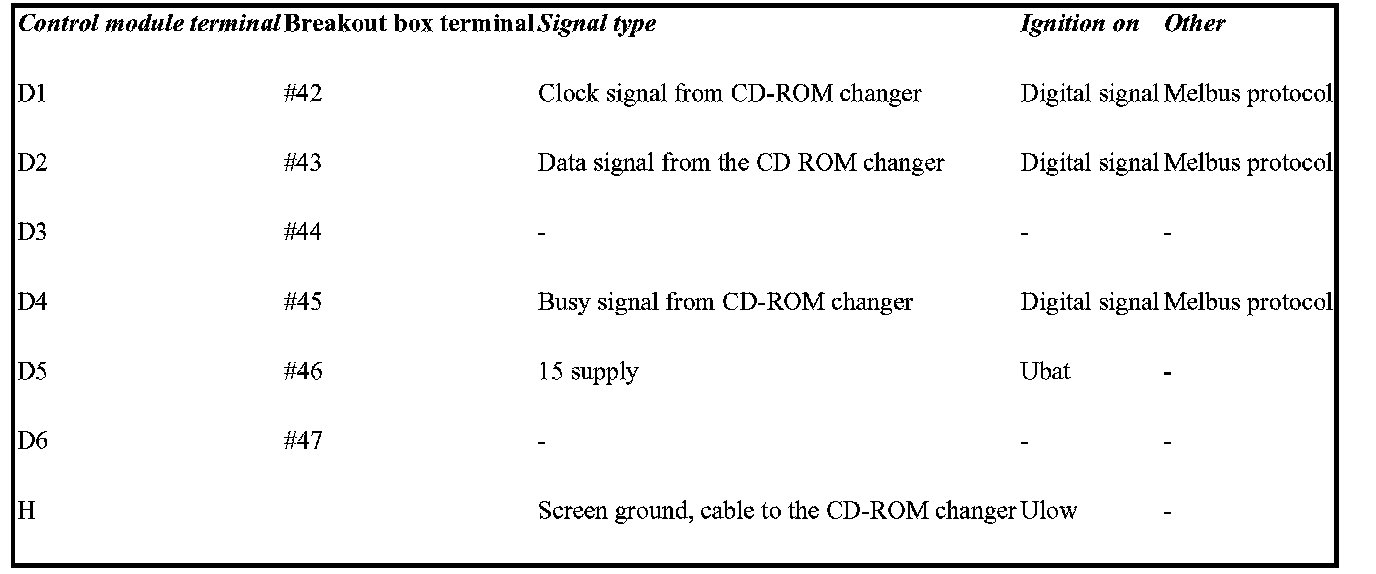

The RTI control module terminals D1-D6 correspond to terminals #42- #47 on the breakout box.

RTI control module (to audio unit)










The RTI control module terminals E1-E8 correspond to terminal #16- #23 on the breakout box.

RTI control module (to TV receiver)










The RTI control module terminals F1-F13 correspond to terminals #1- #13 on the breakout box.

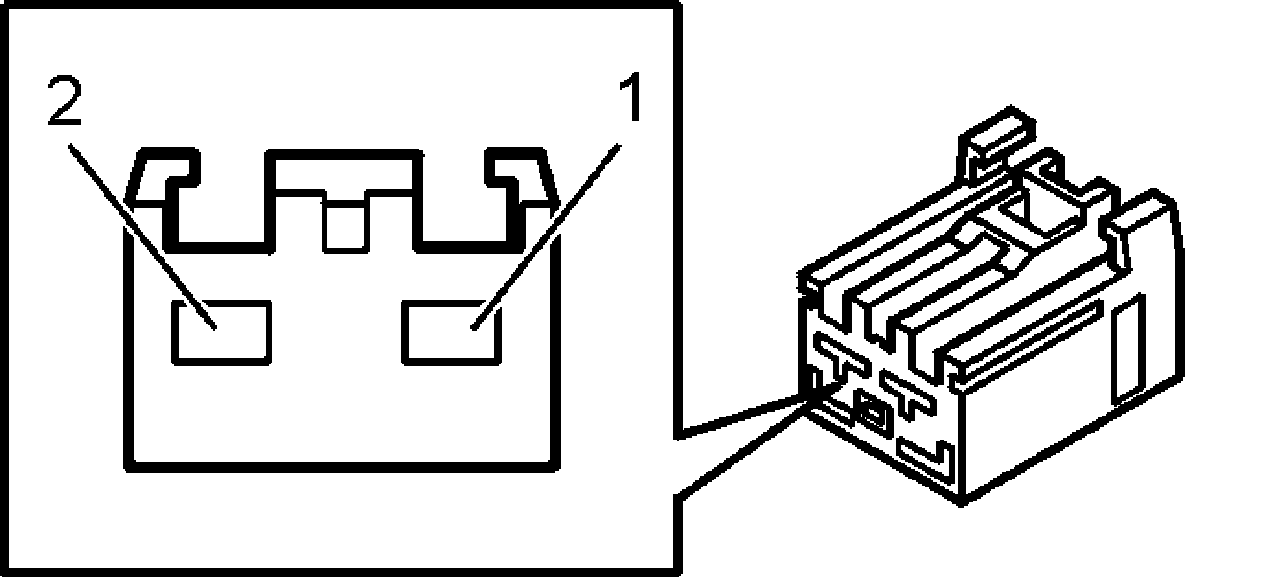

RTI control module (to GPS antenna, gray connector)










RTI control module (to TMC (FM-MPX) antenna, brown connector)







Control module terminal Signal type Ignition on
H1 (A) Antenna signal Analog signal
H2 (B) Screen ground Ulow

RTI control module (to FMMPX antenna, green connector)







Control module terminal Signal type Ignition on
I1 (A) Antenna signal Analog signal
I2 (B) Screen ground Ulow

Display (to RTI control module and chassis)

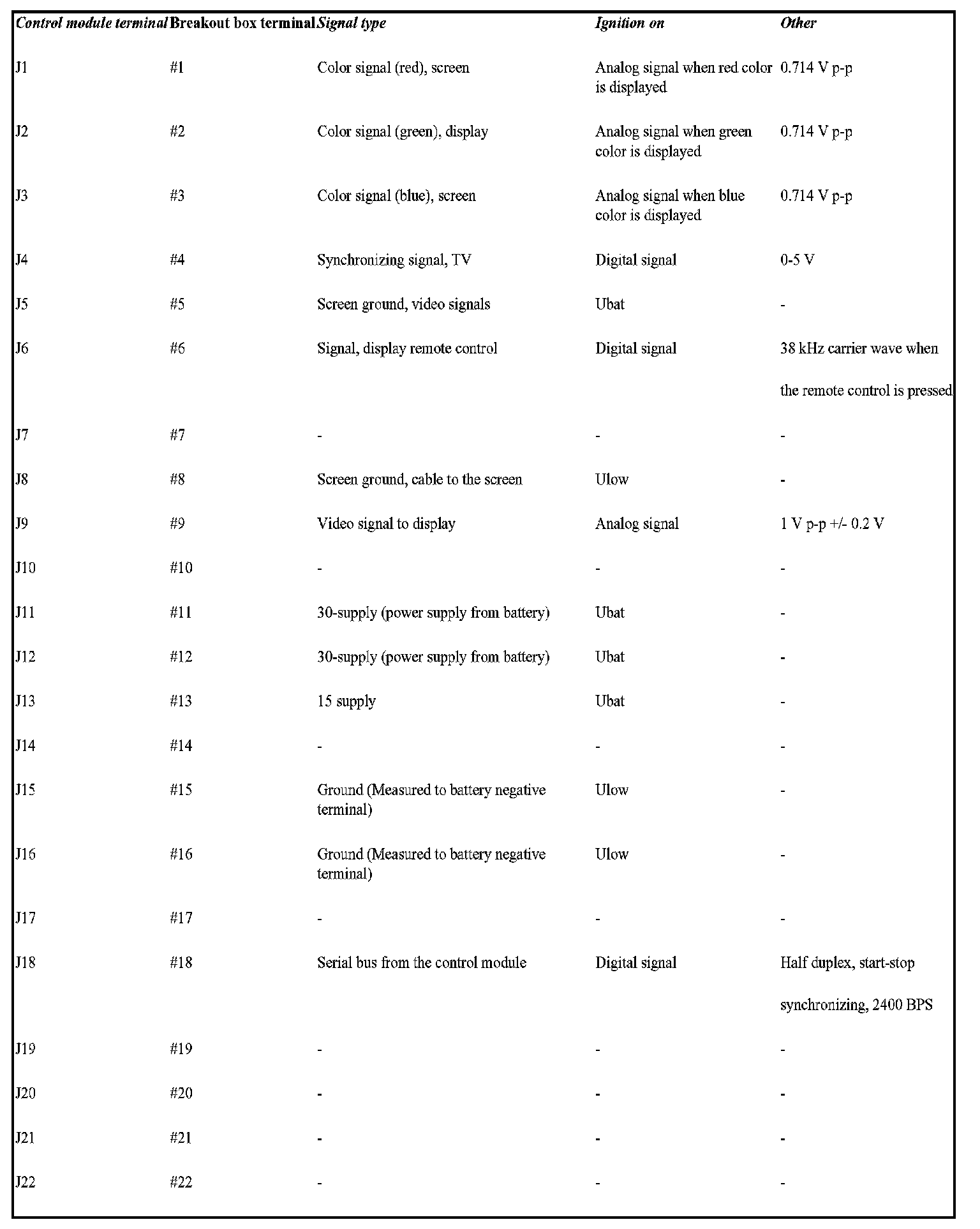

Display terminals J1-J22 correspond to terminals #1-#22 on the breakout box.

CD-ROM changer (to RTI control module and chassis)










CD-ROM changer terminals K1-K5 correspond to #26-#30 on the breakout box.

CD-ROM changer (to RTI control module)










CD-ROM changer terminals L1-L6 correspond to #26-#31 on the breakout box.

TV receiver (to RTI control module)










TV receiver terminals M1-M16 correspond to terminals #25-#40 on the breakout box.

TV receiver (to reverse camera and video)










TV receiver terminals N1-N10 correspond to #47-#56 on the breakout box.

TV receiver (to RTI control module)










TV receiver terminals O1-O8 correspond to terminals #16-#23 on the breakout box.

TV receiver (to CD player)













TV receiver terminals P1-P13 correspond to terminals #1 - #13 on the breakout box.

TV receiver (to TV tuner A)










TV receiver (to TV tuner B)
