Contact Reel/Steering Wheel Angle Sensor, Replacing

Contact Reel/Steering Wheel Angle Sensor, Replacing

Preparations

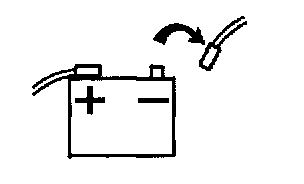

Disconnect the battery lead.

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information is always correct.

Removing the contact reel
Remove the steering column covers.
Remove the steering wheel.

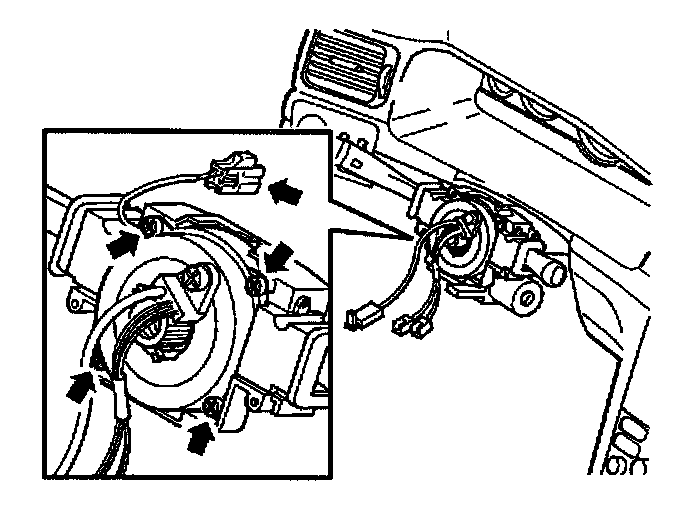

Disconnect the left connector.

Remove:







- the four screws
- the contact reel.

Installing contact reel

Install:
- the contact reel
- the four screws
- the connector.

Zero the contact reel.
Install the steering wheel.
Install the steering column covers.
