Electronic Brake Control Module

Signal Specification, ABS Control Module

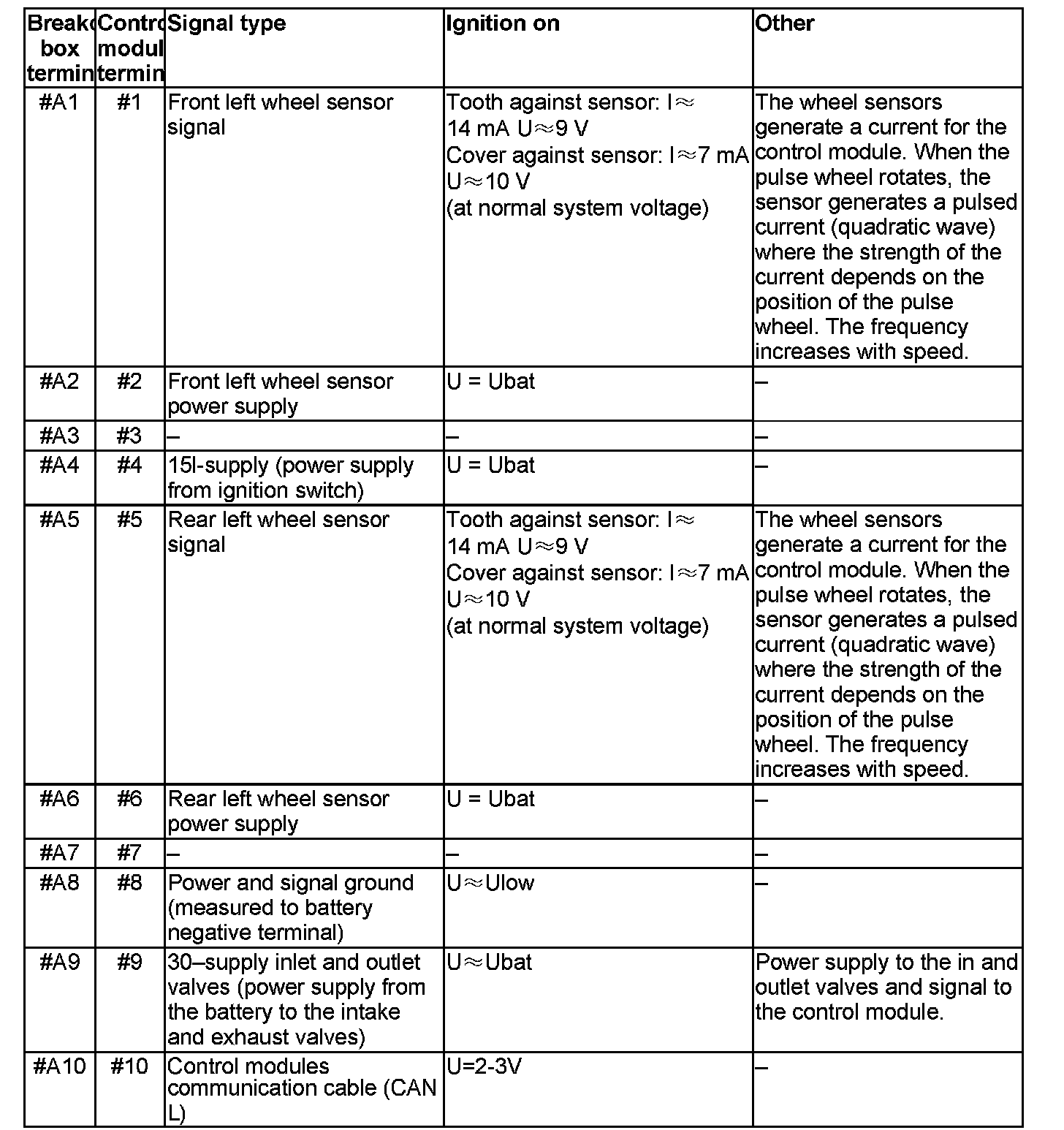

Signal Specifications Table (Part 1 Of 2):

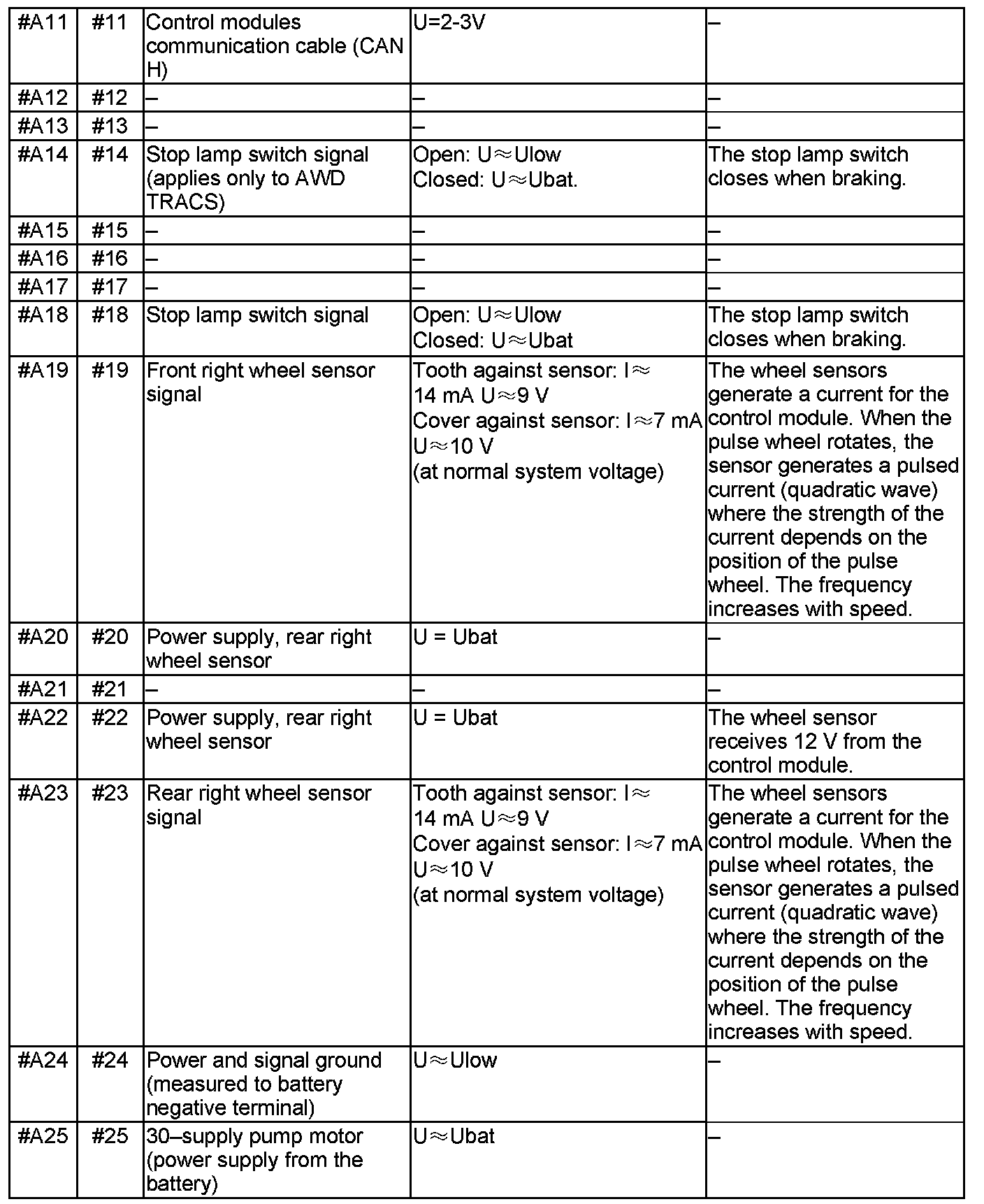

Signal Specifications Table (Part 2 Of 2):

All values given are between the relevant terminal in column 1 and terminal #As or #A24 (ground), unless otherwise indicated in brackets.

Note: It is important that the breakout box is connected and that the ground terminals have been checked before readings are taken.

U = DC voltage in volts
(V) I = current in amperes (A)
Ubat = battery voltage (V)
Ulow = voltage approximately O V
