Rain Sensor: Specifications



Rain sensor

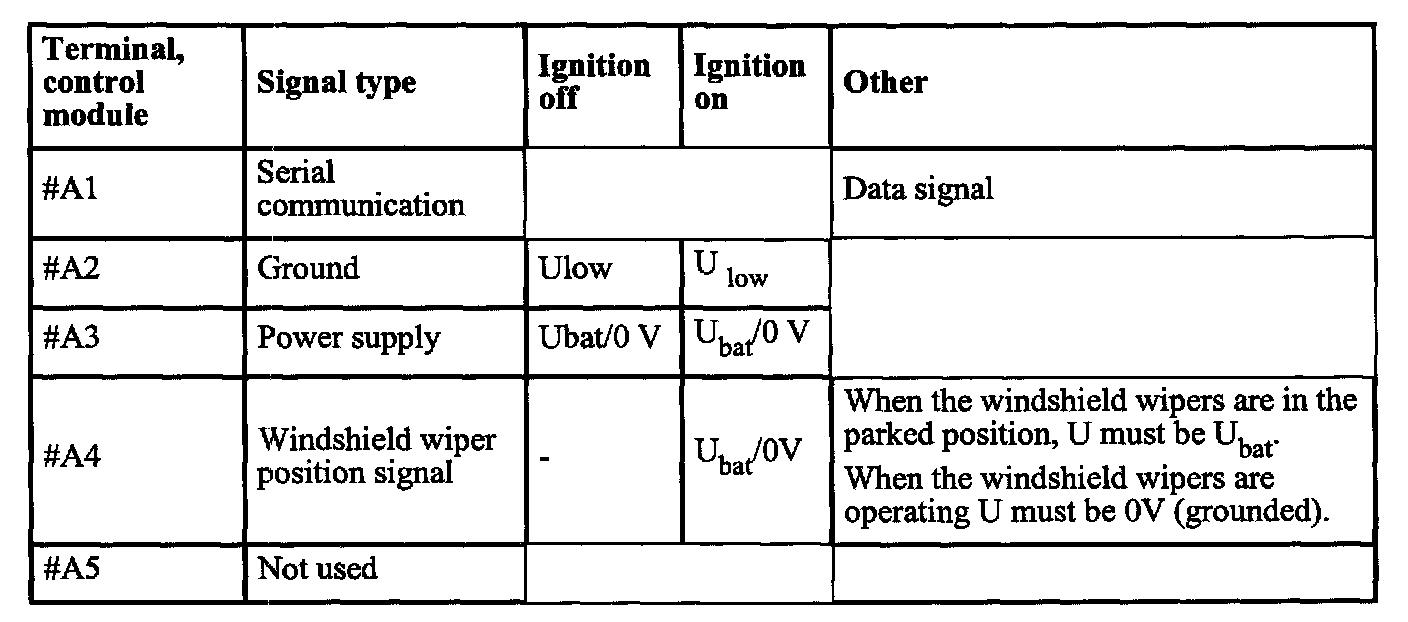

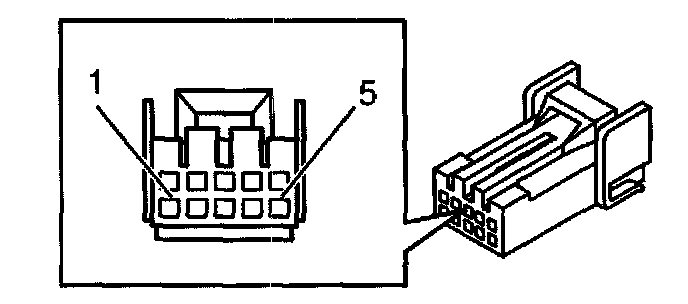

Connector A, terminals # A1 - # A5







U = DC in volts (V).
Ubat = battery voltage in volts (V).
Ulow = Voltage close to 0 V.
