Cargo Lamp Switch: Service and Repair

Replacing The Switch For The Lock Unit/Cargo Compartment Lighting

Removal

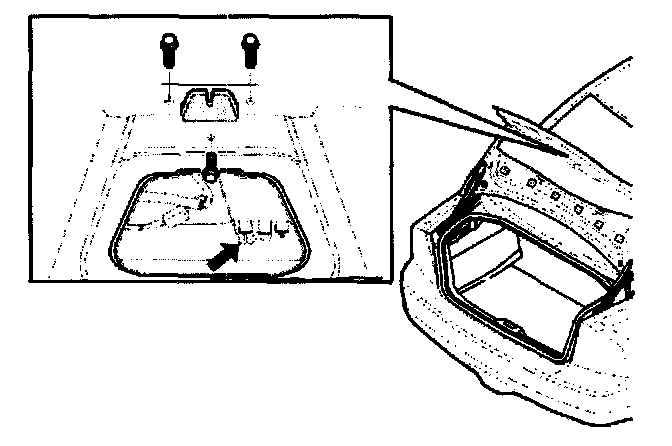

Lock unit







The switch for the cargo compartment lighting is positioned in the lock unit.
- Remove the upholstery on the tailgate. This is to gain access to the entire lock unit mechanism
- Unhook the lever from the lock cylinder mechanism
- Remove the screws (3 x) from the lock unit. Remove the lock unit
- Disconnect the connector.

Installation

Lock unit

Install:
- the connector,
- the three screws for the lock unit. Tighten the screws to 10 Nm,
- the lever for the lock mechanism,
- the upholstery.
