Collision Avoidance Sensor: Service and Repair

Collision Sensor, Replacing

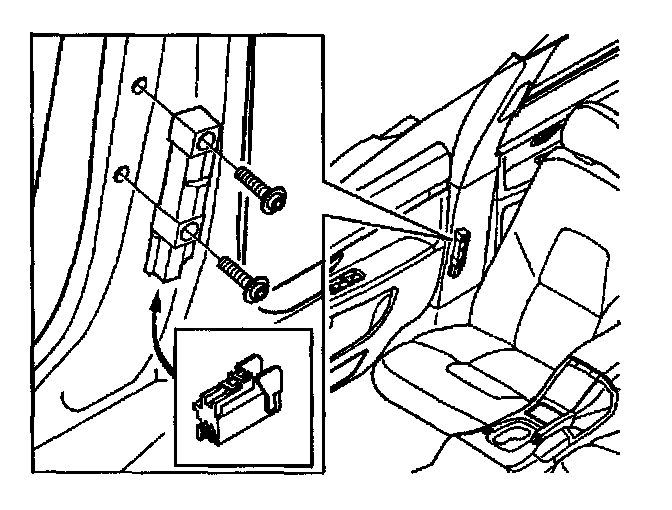

B-post sensor

Preparations







Disconnect the battery lead.
See Note when disconnecting/connecting the battery lead.

Removal







- the B-post panel.
- the connector (press the catches and pull downwards carefully)

NOTE: Do not pull the wiring.

- 2 screws (6 Nm). Replace the sensor.

Installation
Install in reverse order.

C/D-post sensor

Preparations







- Disconnect the battery lead.
- See Note when disconnecting/connecting the battery lead.

Removal







- The side cushion.
- The connector (press the catches and pull downwards carefully)

NOTE: Do not pull the wiring.

- 2 screws (6 Nm).
Replace the sensor.

Installation
Install in reverse order.
