Connecting Test Box

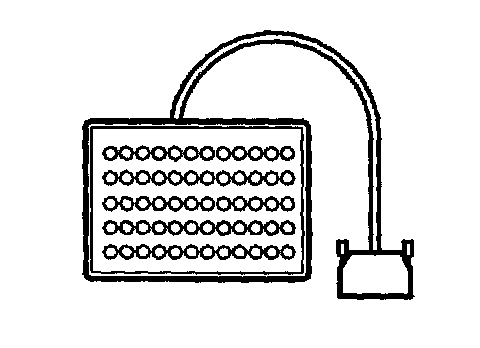

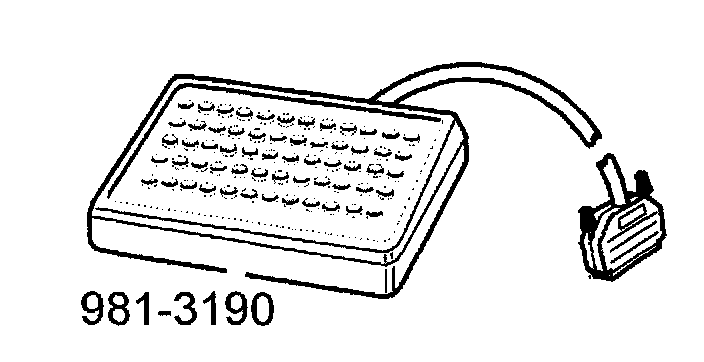

Connecting the test box







Is the test box connected to the control unit?

Yes - Checking Ground Points

NO - Connect test box as described in Connecting the breakout box.
