Control Module, SRS (Supplemental Restraint System), Replacing

WARNING

Control Module, SRS (Supplemental Restraint System), Replacing

Removal

Preparations








Disconnect the battery lead.

SRS control module
Remove the front storage compartment.

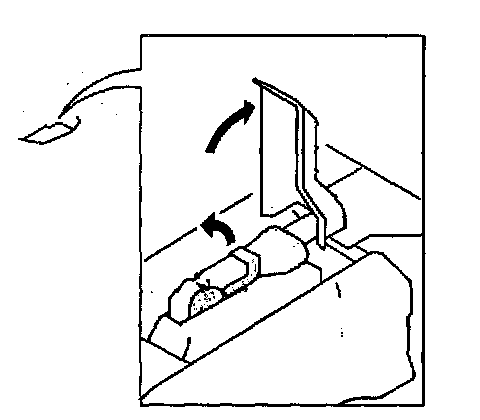

- Push the boot to one side and disconnect the connector.

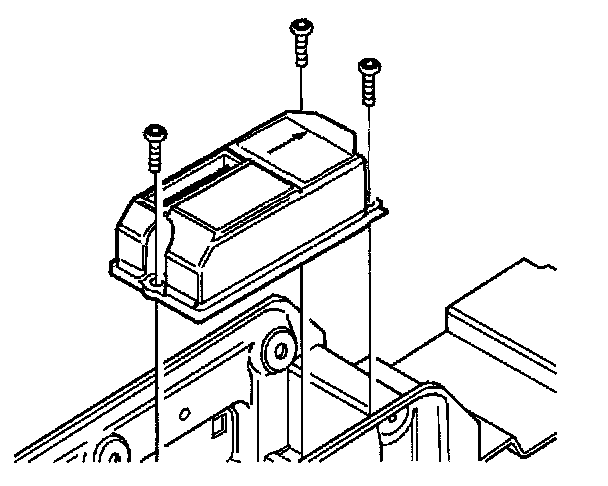

- Remove the 3 control module screws (torx 25)
- Lift the control module.

Installation

CAUTION: Take care that nothing comes between the control module and the bodywork. This can cause over-sensitivity or poor SRS system function.

SRS control module

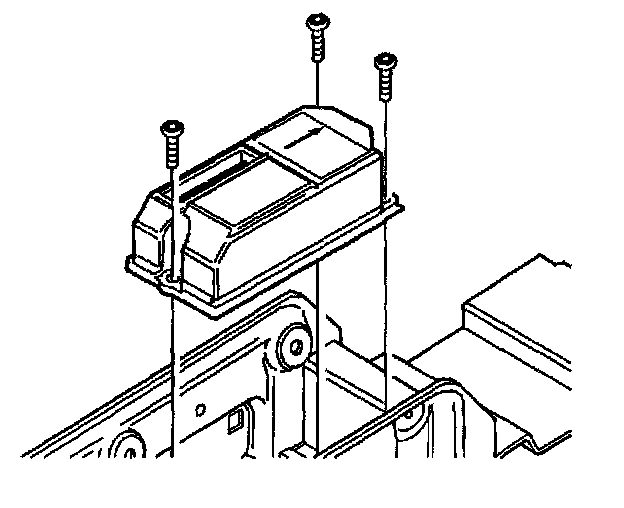

Install 3 screws (torx 25). Tighten to 10 Nm.

CAUTION: It is important that the control module is securely mounted onto the bodywork if the sensor module is to operate properly.

Other components are reinstalled in reverse order.

Final check

WARNING:
The ignition must not be switched on when the SRS ignition cable connector is being removed or installed.


When all components have been installed:

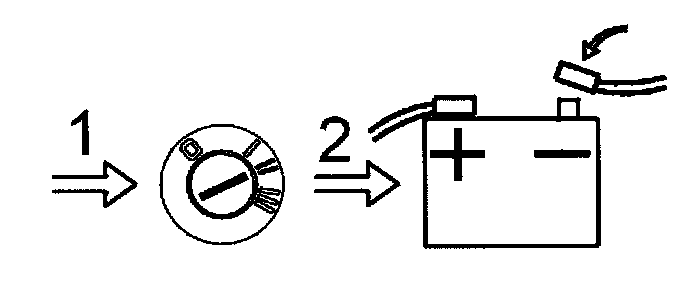

- switch ignition to position II
- reconnect the battery negative lead.

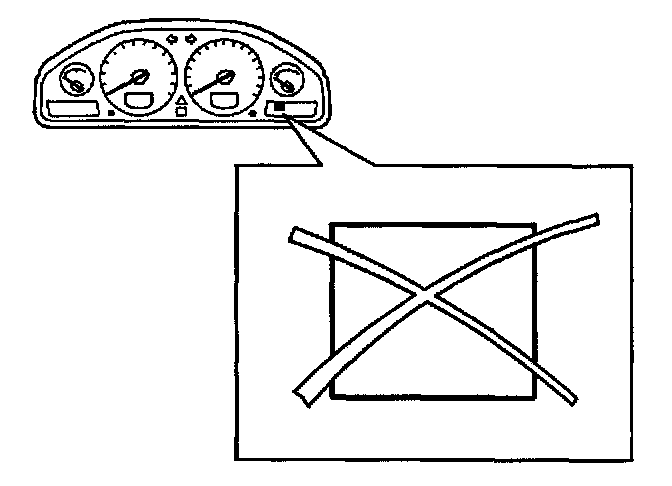

NOTE: Check that the SRS indicator lamp is not defective by turning the key to position II. The SRS indicator lamp should light and go out after approximately 7 seconds.







- Check that the SRS indicator lamp is not lit constantly. If the lamp is lit constantly use the data link connector (DLC) or VCT2000 to trace the fault.

Ordering software
Order the software.

Programming the control module
Program the new control module.
