Signal Specification

Signal specification

Steering Wheel Module (SWM)

General
UIlow, voltage close to 0 V.
UIbat, battery voltage

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.

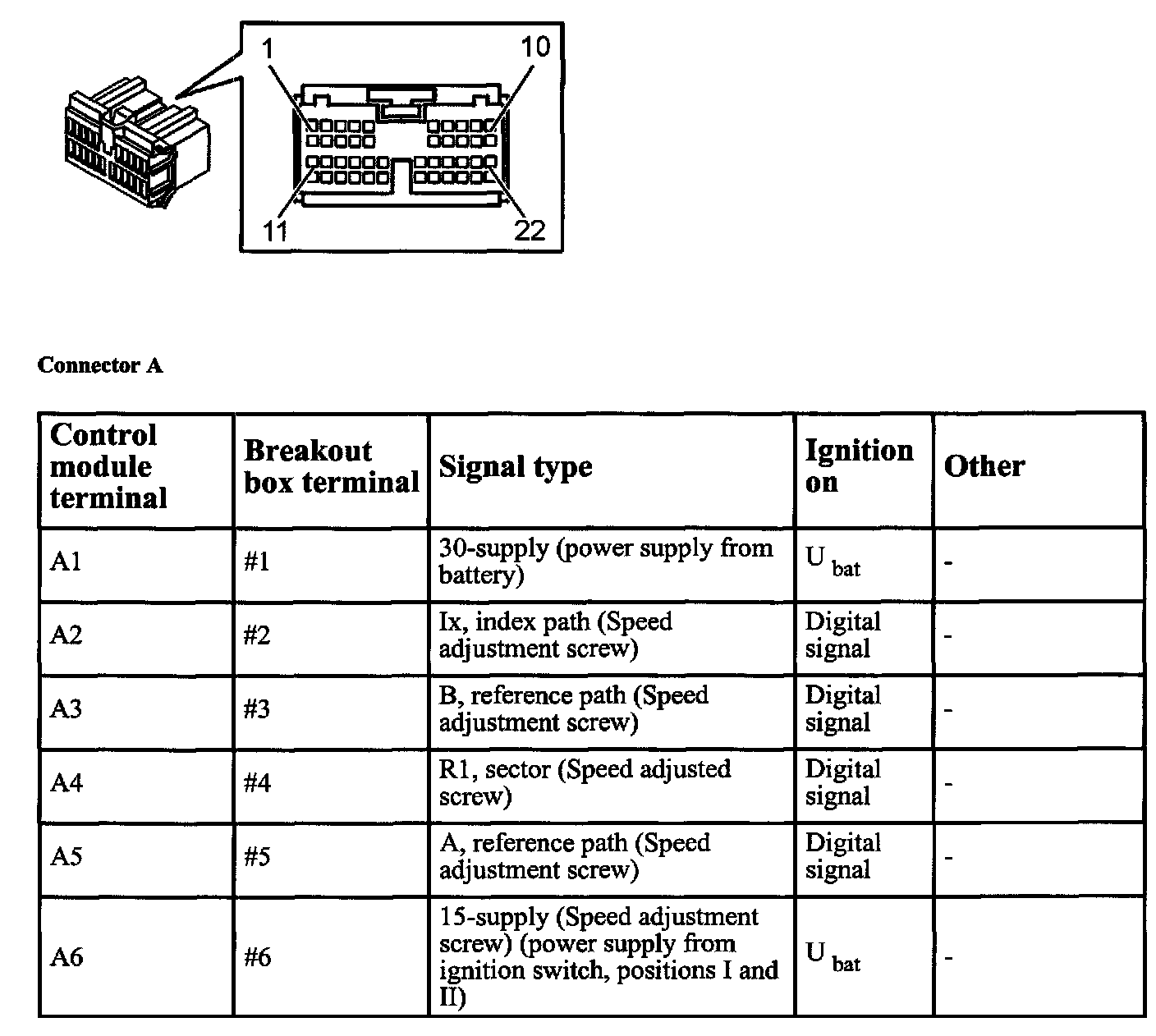

Connector A

Part 1:

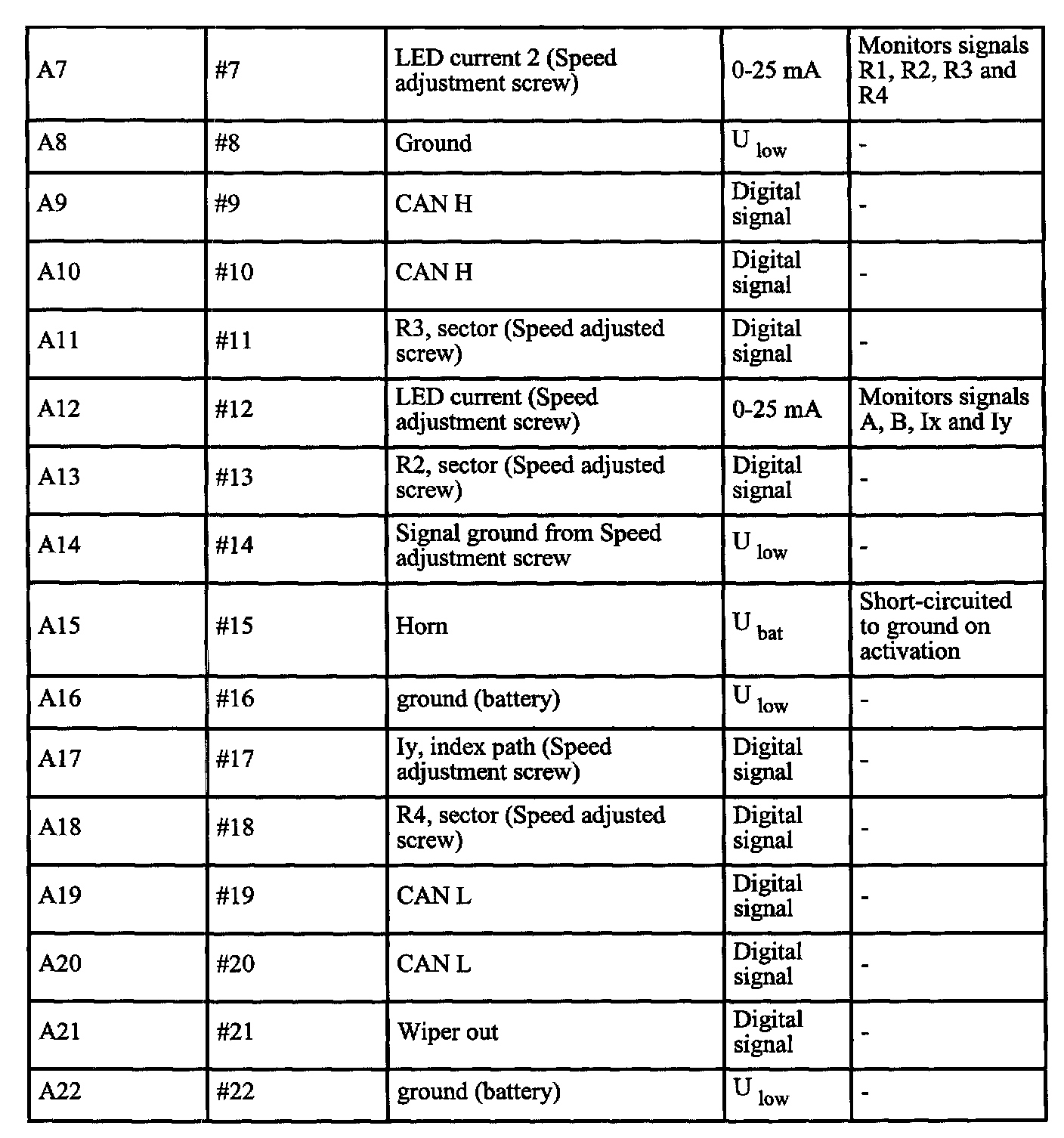

Part 2:

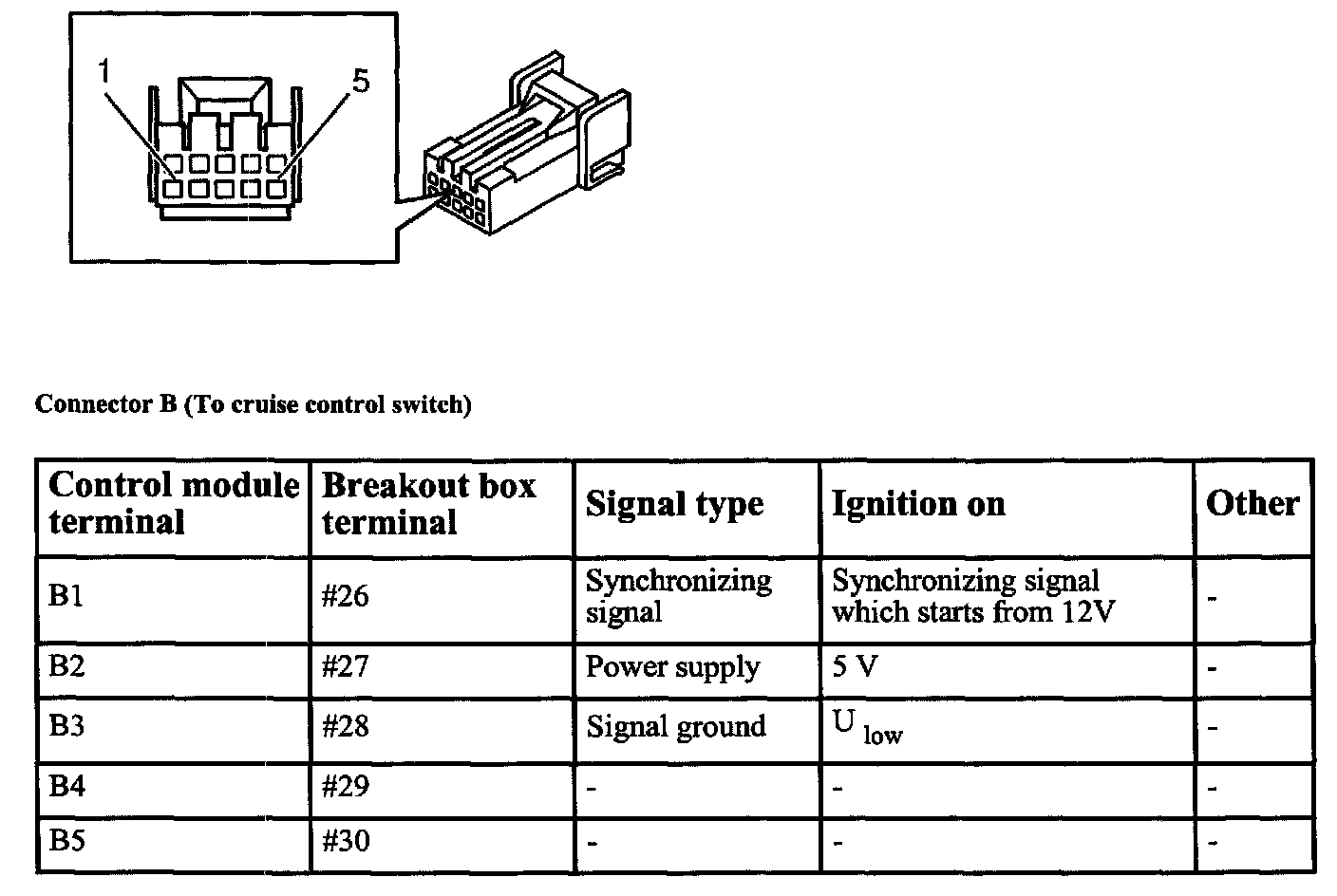

Connector B
