Verification

Verification

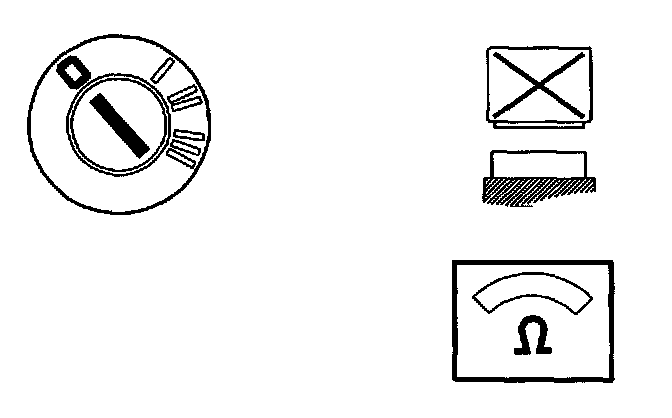

- Ignition off
- the control module disconnected.
- Switch off all equipment that takes power from the battery (courtesy lighting, radio etc).

For the Control module, connect an ohmmeter between terminal # 16 on the breakout box and the battery negative terminal.

The ohmmeter should read 0 [ohm].

Yes - Diagnostics and Tests

No - Fault-Tracing Information
