Interior Lighting Module: Locations

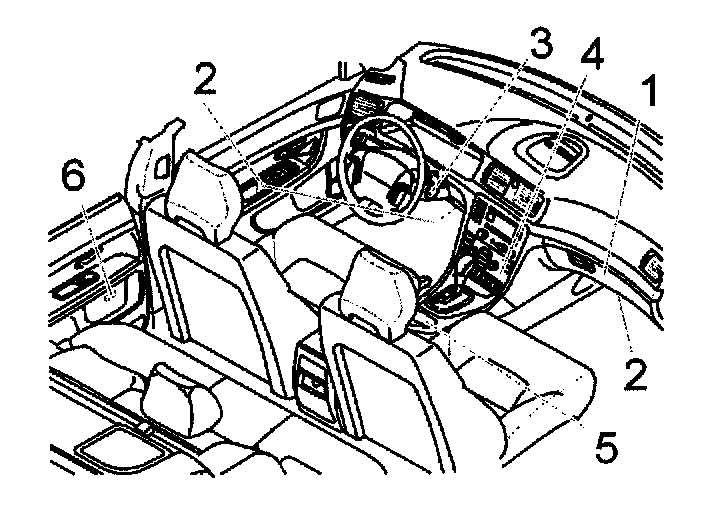

Internal lighting







1. Glove compartment lighting
2. Front courtesy lighting
3. Ignition key lighting
4. Lighting for the ECC control module and dashboard environment panel
5. Lighting, front ashtray
6. Courtesy lighting, rear.

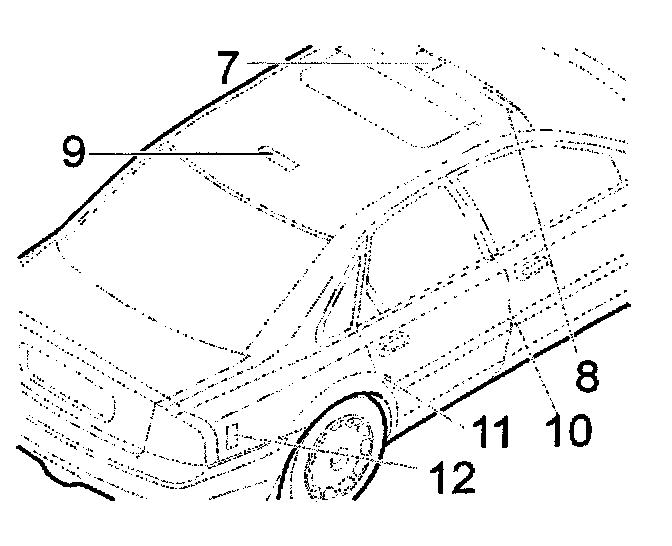

7. Interior lighting and the upper electronic module
8. Vanity mirror lighting
9. Rear reading lamp
10. Front door warning lamp
11. Rear door warning lamp
12. Cargo compartment lighting.
