Traction Control Module: Testing and Inspection

Signal description, Control unit for the steering wheel angle sensor (SAS)

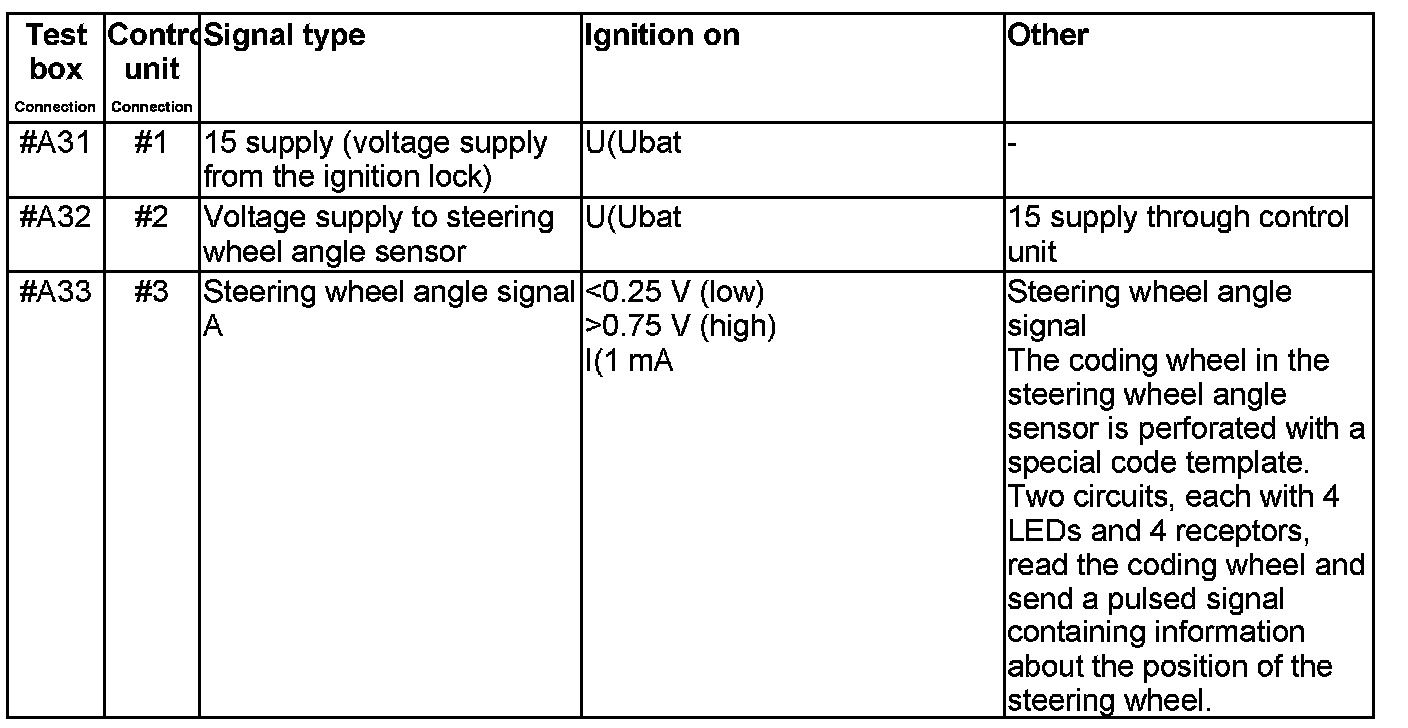

Signal Descriptions Table (Part 1 Of 2):

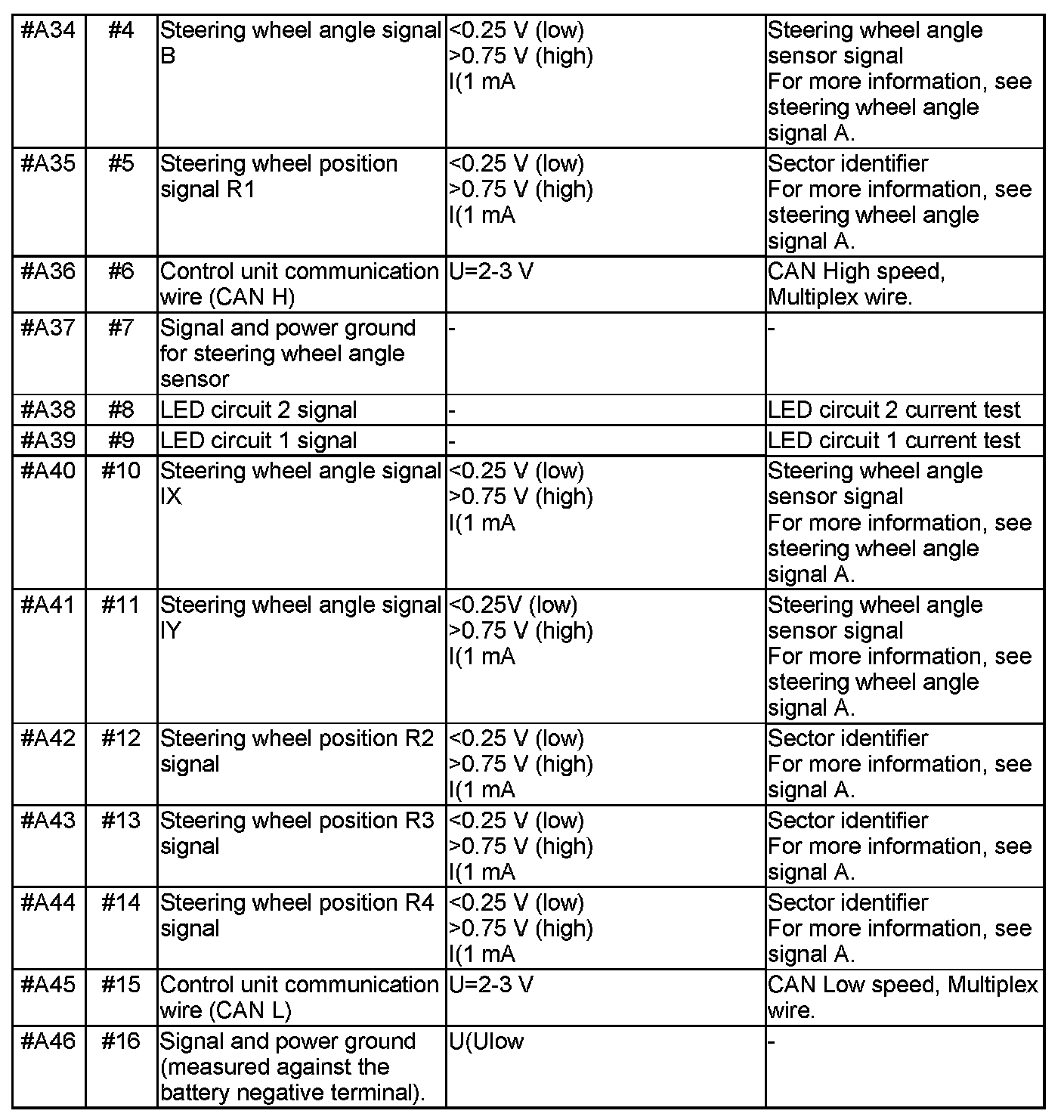

Signal Descriptions Table (Part 2 Of 2):

The values in the table represent the values between the connections shown in column 1 and #A46 (ground), unless otherwise stated in brackets.

Note: It is important that the test box is connected and the ground points checked before testing begins.

U = DC voltage (V)
I = amperage (A)
Ubat = battery voltage (V)
Ulow = voltage close to O V
