Checking Passenger Compartment Ventilation Filter

Checking passenger compartment ventilation filter

Checking passenger compartment ventilation filter

Hint: A blocked, dirty or wet passenger compartment ventilation filter can cause misting on the windshield or result in bad odor from the climate control system.

- Remove the soundproofing panel. See Air cleaner passenger compartment, replacing Service and Repair.

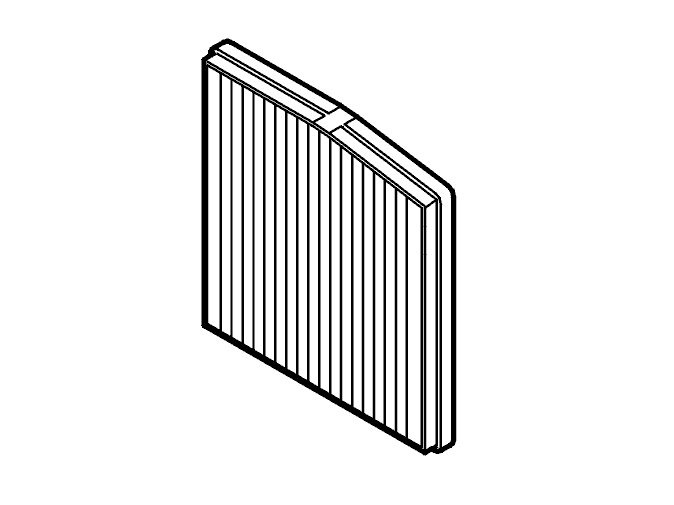

Check whether the climate control unit is equipped with a passenger compartment ventilation filter. If a passenger compartment ventilation filter is installed, check that the filter is correctly installed, is intact, clean and dry.
Remedy as necessary.





Was a fault detected?

Yes - Fault Found

No - No Fault Found

-------------------------------------------------
