Auxiliary Power Outlet




12 V Outlet, Cargo Compartment

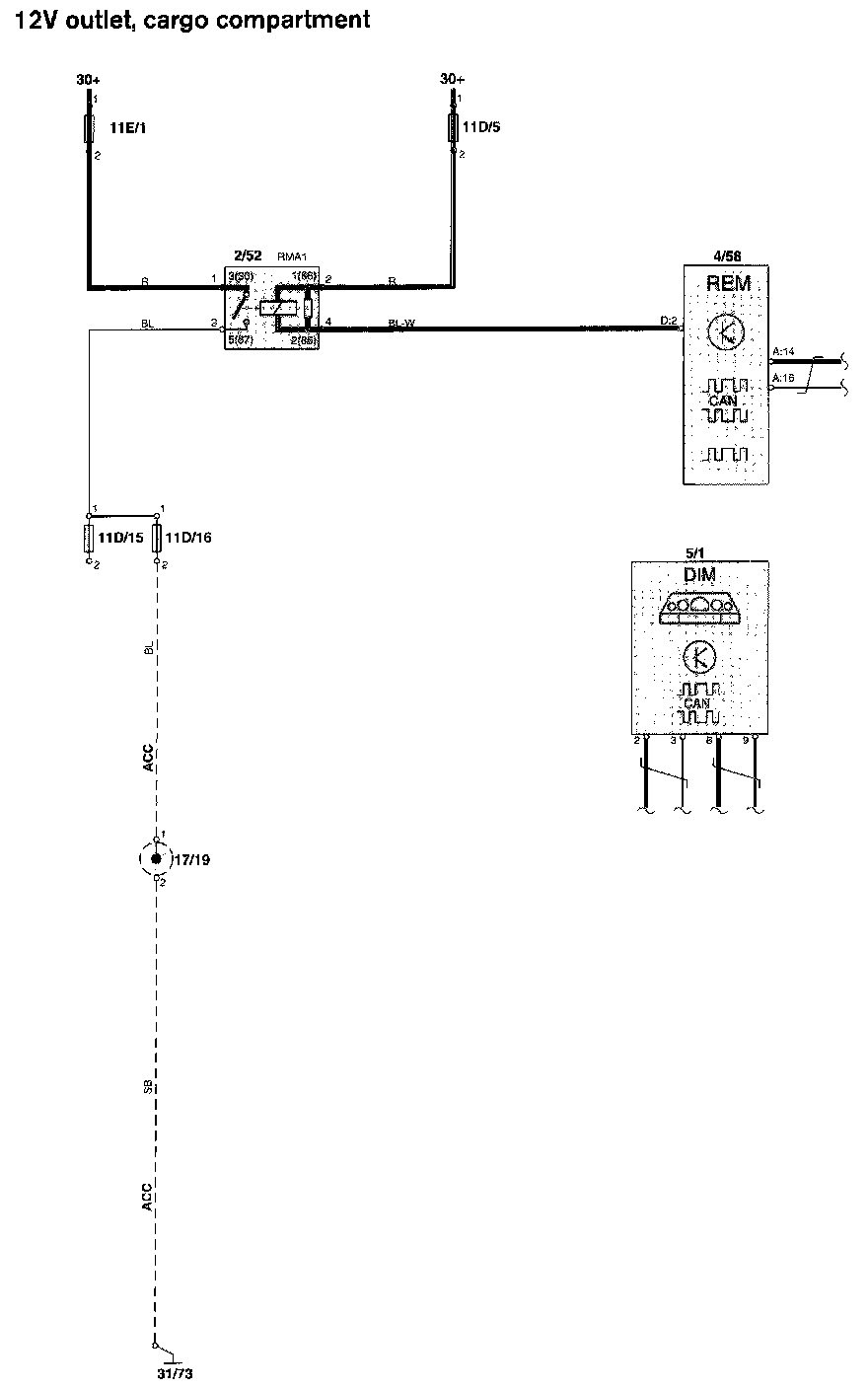

12V Outlet, Cargo Compartment:






Diagram Legend, Diagram Legend
