Front Edge of the Dashboard

Front Edge Of The Dashboard

Removing
Remove the dashboard.

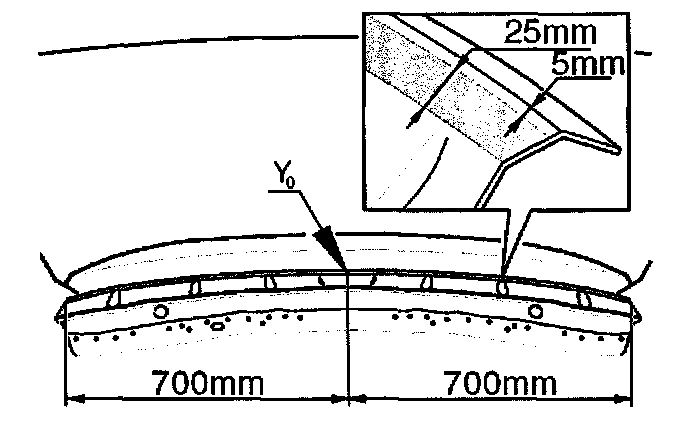

Tape the firewall member as illustrated, with ten pieces of velour tape (P/N 9511045). (The tape should be placed in the front edge of the dashboard contact surface with the member.)

Installing
Install the dashboard.

NOTE: Check that the front edge molding of the dashboard is in position and does not come loose when the dashboard is installed.
