Tow Hitch Wiring, 13-Pin

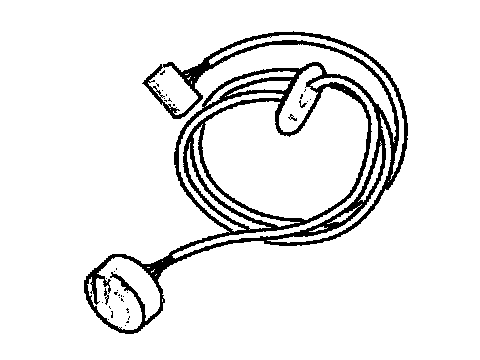

Tow Hitch Wiring, 13-pin

NOTE: The relay and fuses are not included in the kit.

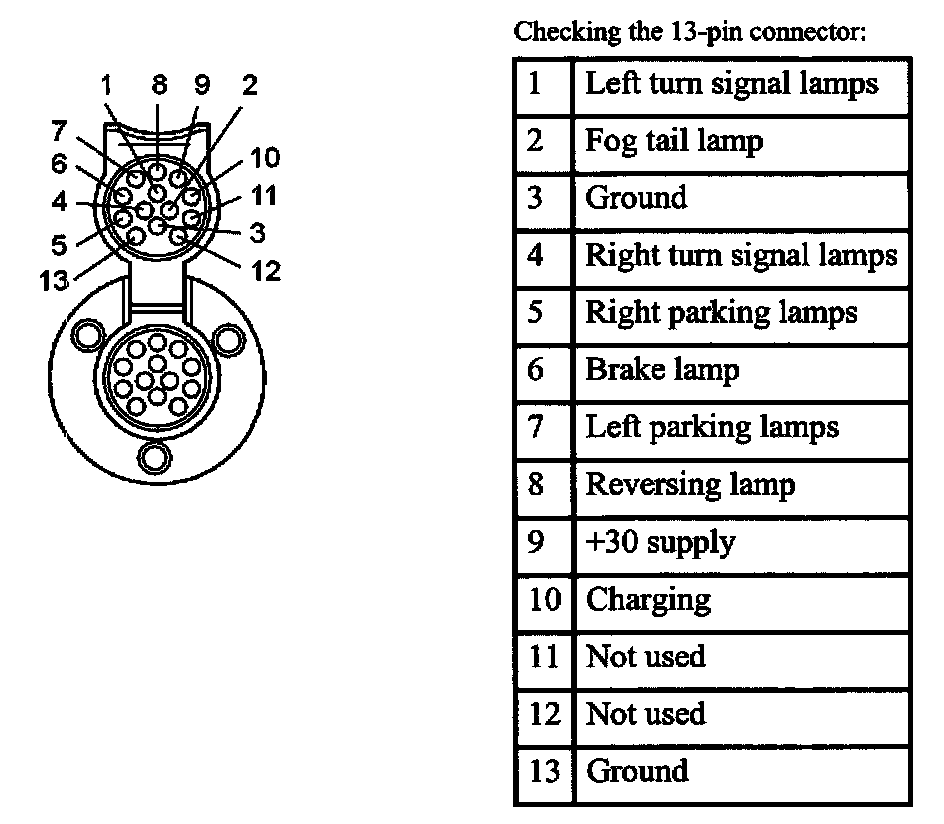

Installing the connector

Installing the connector for detachable tow bars

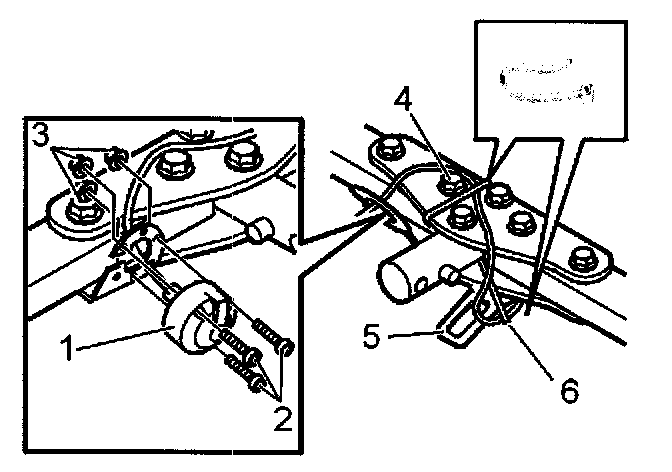

- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten.
- Route the cable harness behind the screw (4) on top of the tow bar. Then route the cable harness down past the bracket (5)
- Clamp the cable harness at the bracket. Tighten the clamps (6).

- Ensure that the cable harness is as close to the centre mounting on the tow hitch member as possible. This is important to prevent the cable harness from being caught in the cut-out bumper.

- Route the cable along the underneath of the tow hitch member as illustrated
- Secure the cable with two tie straps.

Installing the connector for fixed tow bars

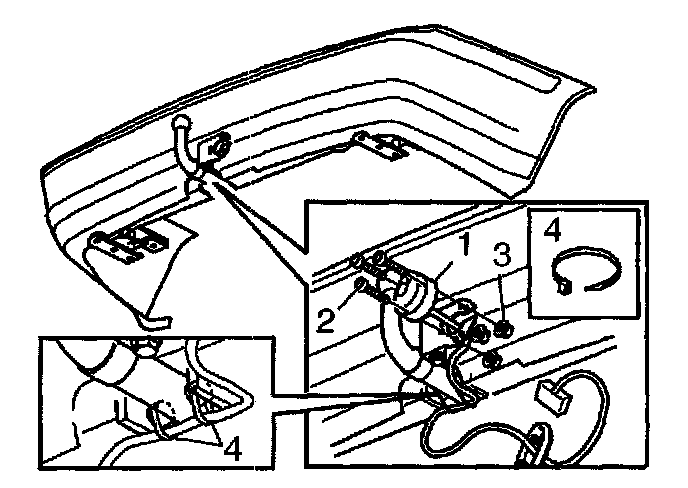

- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten
- Clamp the cable harness at the tow hitch. Tighten the clamp(s) (4).

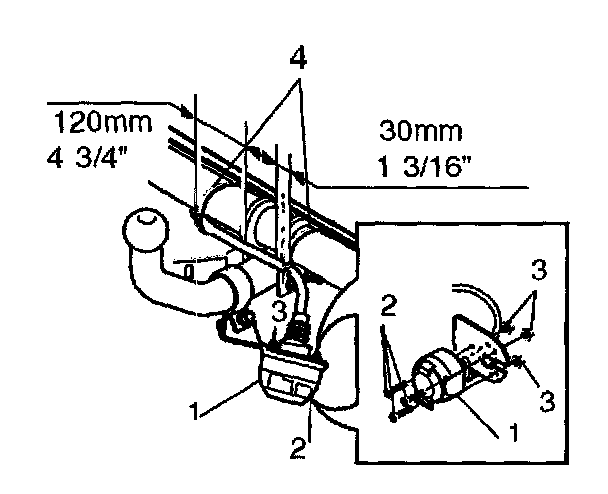

- Install the trailer connector (1). Use the three screws (2) and the nuts (3). Tighten
- Leave the bracket hanging down as illustrated
- Secure the cable harness at the tow hitch member on each side of the tow hitch. Use a tie strap (4) from the kit
- Position the tie straps according to the listed dimensions
- Do not tighten the clamps fully yet.

Cargo compartment preparations

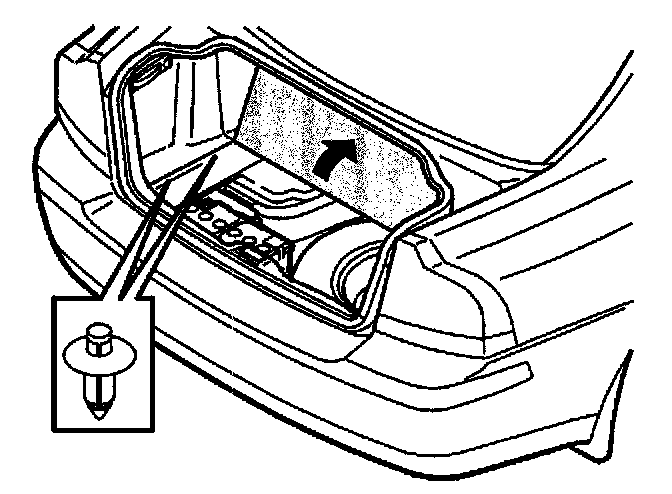

- Fold the cargo compartment carpet (1) out of the way
- Turn the clips (2). Fold in the side panels on both sides
- Remove the two covers (3). Remove the screws (4) underneath the covers. Grip the outer edges of the panel (5). Pull the panel inwards towards the centre so that the clips release at the sides. Disconnect the connectors (6) for the side lamps. Remove the panel by pulling it straight upwards so that the clips release from the rear crossmember.

- Lift up the floor hatch (1). Lift up the storage hatch (2). Remove these two hatches from the car
- Remove the side panels (3) on both sides.

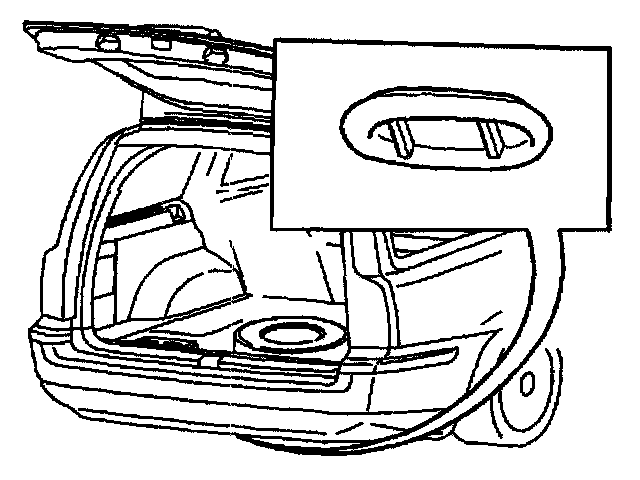

- Fold back the carpet

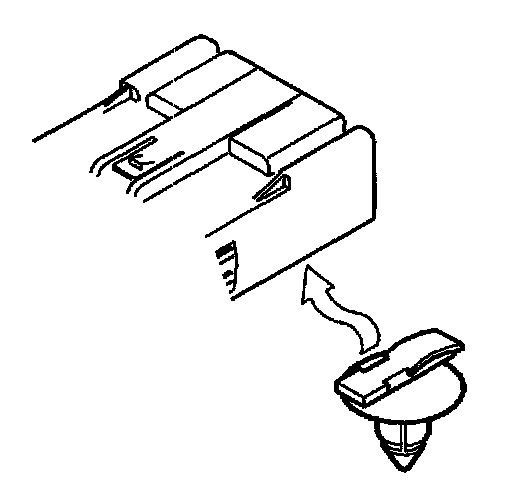

- Remove the clips at the bottom edge of the right and left folding panels (press the centre of the clips until there is a audible snap)
- Remove the clips.

- Turn the handle (1) on the right and left-hand sides through 90°
- Fold the panels inwards. Lift the panels out
- Pull the tailgate sill trim panel (2) forwards on the right and left hand sides until the two clips on each side release. Carefully pull the panel with some force as it is tightly secured
- Pull the panel straight up until the four clips on the underside release
- Remove the wiring (3) for the cargo compartment lighting
- Lift out the sill trim panel.

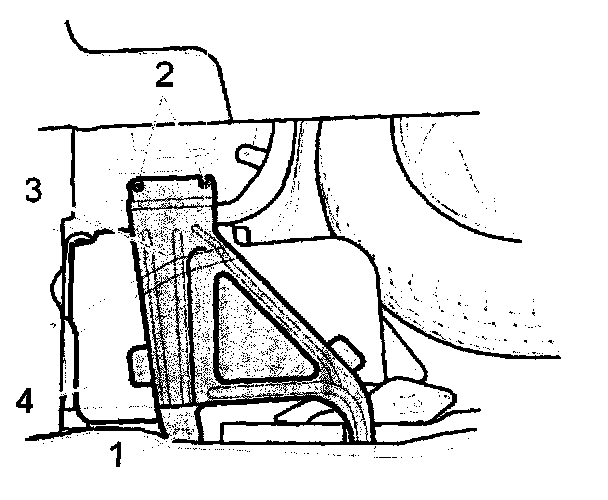

- Remove the screw (1), the nuts (2) and then the bracket (3) (pull the bracket forwards)
- Lift off the protective cover (4).

- Remove the drainage hose (1) from the battery
- Remove the rubber seal (2). The rubber seal will not be used again
- Pull off the small narrow rubber stop on the new rubber seal
- Thread the old drainage hose through the new rubber seal. Ensure that the hose is unimpeded and is not kinked.

- Remove the cover plug from the hole in the bodywork.
- This does not affect battery drainage.

Cable routing

- Install the new holder for the connector.

- Route the cable harness from the tow bar socket through the hole in the floor

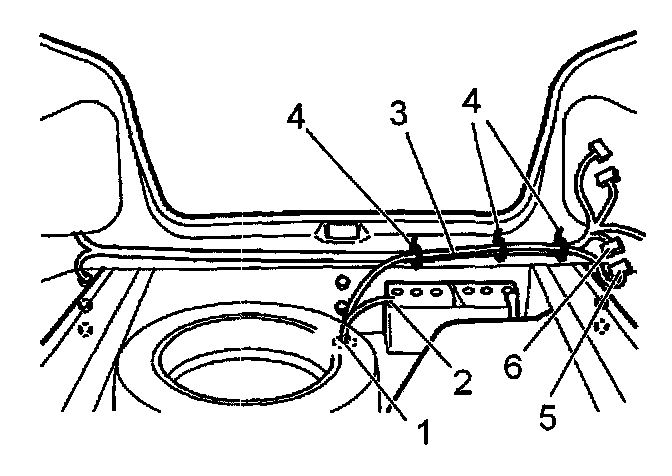

- Adjust the position of the rubber seal (1) so that there is not excessive cable slack under the car
- Install the rubber seal in the hole
- Connect the drainage hose (2) to the battery
- Route the cable harness (3) along the existing wiring
- Install the clamps (4)
- Connect the cable harness connector (5) to the existing connector (6)
- Clamp any excess cable together with the connector.

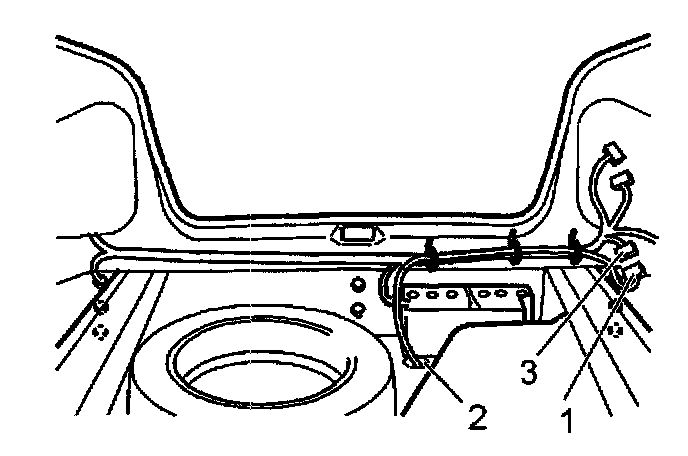

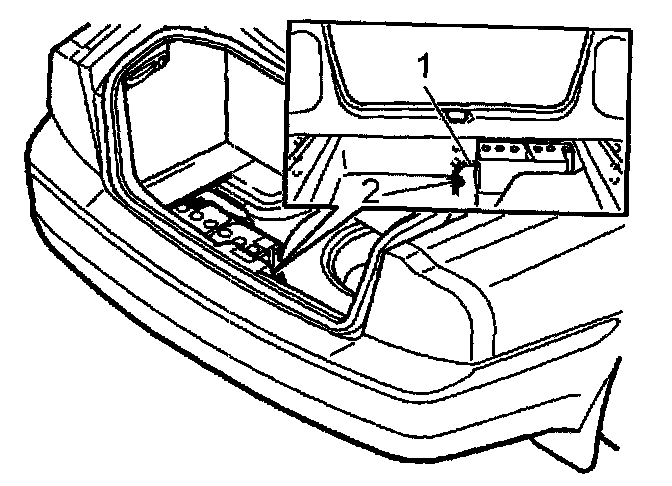

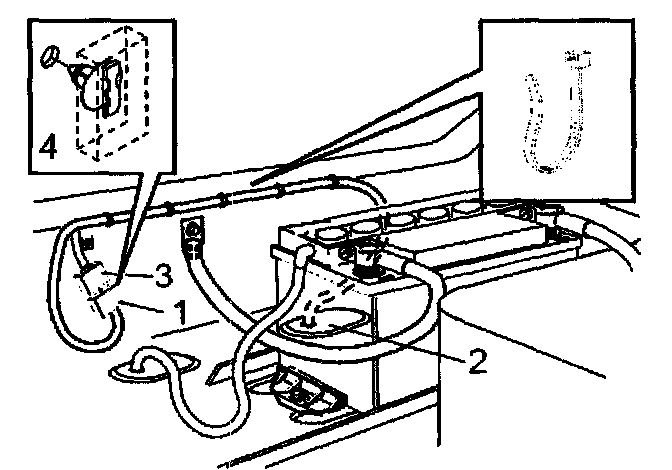

- Route the cable harness from the tow bar socket through the hole in the floor
- Adjust the position of the rubber seal (2) so that there is not excessive cable slack under the car
- Install the rubber seal in the hole
- Route the cable as illustrated. Clamp the existing cable harness in the sill trim panel. Ensure that the cable harness is not impeded by the battery holder and the protective cover
- Connect the cable harness connector (1) to the existing connector (3)
- Secure the two connected connectors (4) in the existing hole in the bodywork.

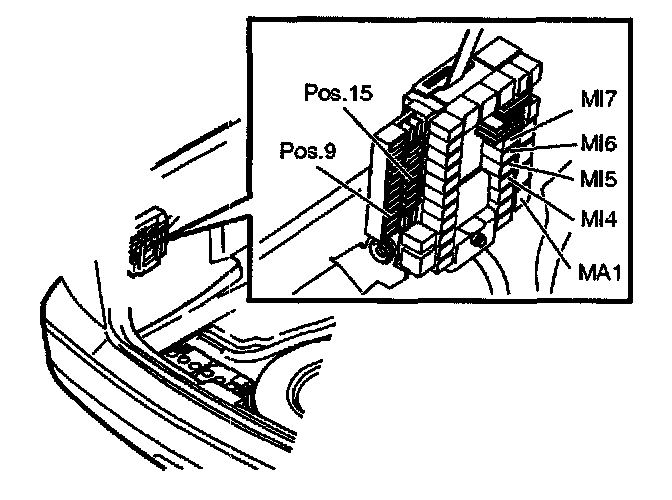

Install the correct fuse/relay depending on the model (year) and desired function

Applies when connecting the fog tail lamp function
- Install the relay in the rear electronic module, terminal MI 7.

Applies when connecting the automatic shut-off function for the fog tail lamp

NOTE: This function requires software unique to the car.

Program the software according to the service information in VADIS.

Applies when connecting the positive power supply/charging function (15 I supply)
- Install the relay in the rear electronic module, terminal MA 1.

Applies to S80 model year 1999
- Install a 15 A fuse in the rear electronic module, terminal 9.

Applies to the S80, S60 and V70 (00-)
- Install a 20A fuse in the rear electronic module, terminal 9, and a 15A fuse in terminal 15.

Finishing work
- Reinstall the protective cover and the bracket for the battery.
- Reconnect the connectors for the side lamps
- Reinstall the panels.
- Re-position the cargo compartment carpet. Alternatively, reinstall the storage hatch and the floor hatch.
