Signal Too Low - Permanent Fault

Checking Component And Wiring

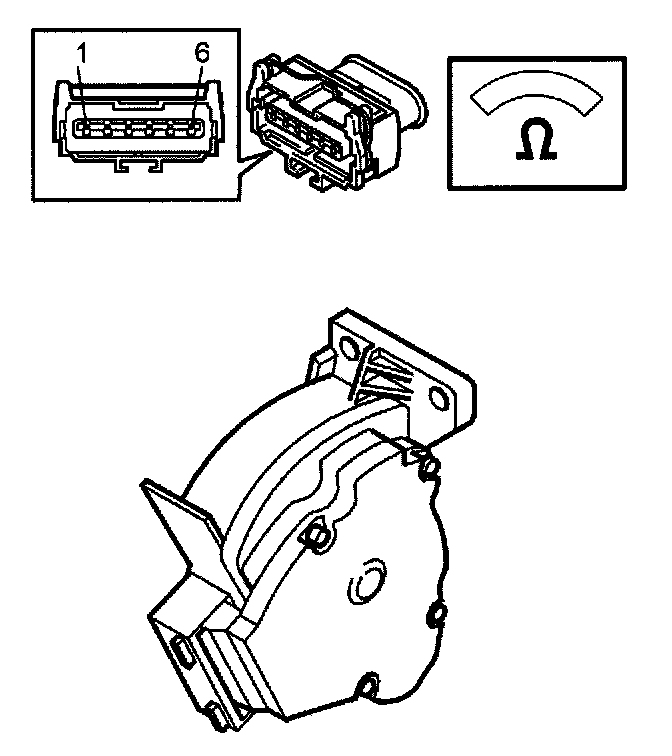

Check cable between engine control module (ECM) #B9 (#B19) and accelerator pedal (AP) position sensor #6 for a short-circuit to ground according to Checking wiring and terminals. Permanent faults (under Related Tests and Information).

Check cable between engine control module (ECM) #B9 (#B19) and accelerator pedal (AP) position sensor #6 for an open-circuit according to Checking wiring and terminals. Permanent faults (under Related Tests and Information).

Remedy as necessary.

Other information
- To connect the breakout box, see Connecting the breakout box (under Scan Tool Connecting)
- To access/replace the accelerator pedal (AP) position sensor, see Replacing the accelerator pedal module.
- For information about signals on 5-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).
- For information about signals on 6-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).
- Voltage at accelerator pedal (AP) position sensor #6 (engine control module (ECM) side) should be approximately 5 V.

Continue with Test (Verification - Permanent). Verification - Permanent
