Signal Too Low - Intermittent Fault

Checking Component And Wiring

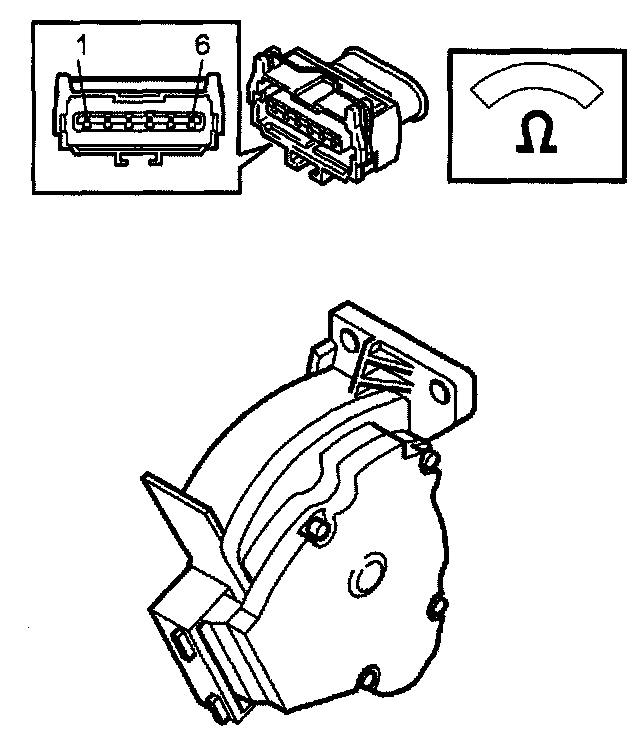

Check cable between engine control module (ECM) #B9 and accelerator pedal (AP) position sensor #6 for an intermittent short-circuit to ground according to Checking wiring and terminals. Intermittent faults (under Related Tests and Information).

Remedy as necessary.

Other information
- To connect the breakout box, see Connecting the breakout box (under Scan Tool Connecting).
- To access/replace the accelerator pedal (AP) position sensor, see Replacing the accelerator-pedal module.
- For information about signals on 5-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values)
- For information about signals on 6-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).

Continue with Test (Fault-Tracing Information - Intermittent Fault). Fault-Tracing Information - Intermittent Fault
