Signal Too High - Intermittent Fault

Checking Wiring And Connectors

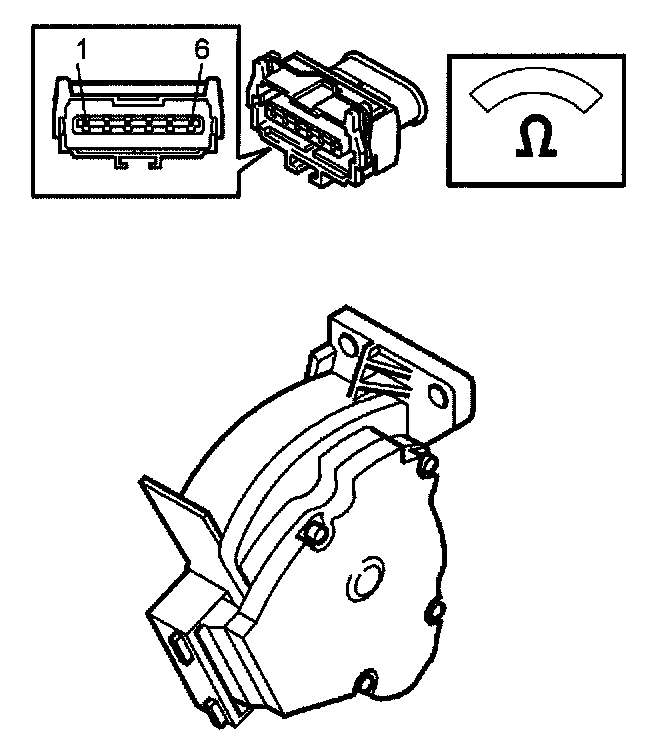

Check signal cable between engine control module (ECM) #B17 (#B27) and accelerator pedal (AP) position sensor #2 for an intermittent short-circuit to supply voltage according to Checking wiring and terminals. Intermittent faults (under Related Tests and Information).

Remedy as necessary.

Other information
- To connect the breakout box, see Connecting the breakout box (under Scan Tool Connecting).
- To access/replace the accelerator pedal (AP) position sensor, see Replacing the accelerator pedal module.
- Accelerator pedal (AP) position sensor #5 transmits an analog signal that varies between approximately 0.45 V and approximately 4.5 V depending on accelerator pedal (AP) position.
- Accelerator pedal (AP) position sensor #6 is power supply (5 V)
- Accelerator pedal (AP) position sensor #4 is a signal ground.
- For information about signals on 5-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).
- For information about signals on 6-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).

Continue with Test (Fault-Tracing Information - Intermittent Fault). Fault-Tracing Information - Intermittent Fault
