Faulty Signal - Permanent Fault

Checking Component And Wiring

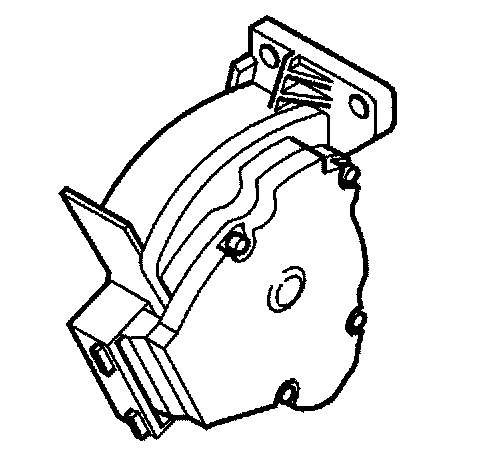

Engine control module (ECM) has detected a fault in the accelerator pedal (AP) position sensor PWM signal.

Replace accelerator pedal (AP) position sensor according to Replacing the accelerator pedal module.

Other information
- For information about signals on 5-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).
- For information about signals on 6-cyl, see Signal Specification (under Diagnostic Parameters and Pinout Values).

Continue with Test (Verification - Permanent). Verification - Permanent
