Signal Too Low - Intermittent Fault

Checking Wiring And Connectors

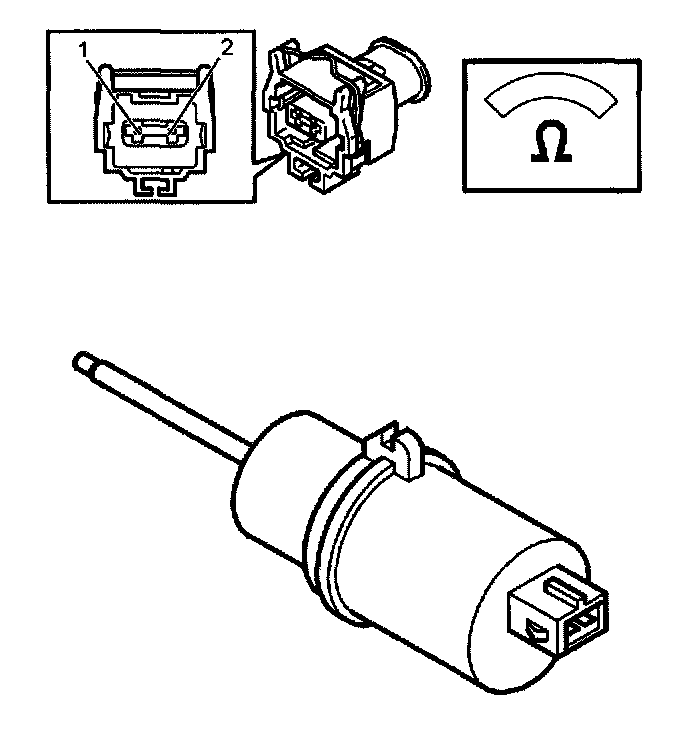

Check the signal cable between engine control module (ECM) #B16 and brake pedal sensor #2 for a short-circuit to ground according to Checking wiring and terminals. Intermittent faults (under Related Tests and Information).

Other information
- To connect the breakout box, see Connecting the breakout box (under Scan Tool Connecting).
- To access/replace the brake pedal sensor, see Pedal sensor power brake booster, replacing.
- For information about signals on 5-cylinder engines, see Signal Specification (under Diagnostic Parameters and Pinout Values).
- For information about signals on 6-cylinder engines, see Signal Specification (under Diagnostic Parameters and Pinout Values).

Continue with Test (Fault-Tracing Information - Intermittent Fault). Fault-Tracing Information - Intermittent Fault
