Signal Missing - Permanent Fault

Checking Component And Wiring

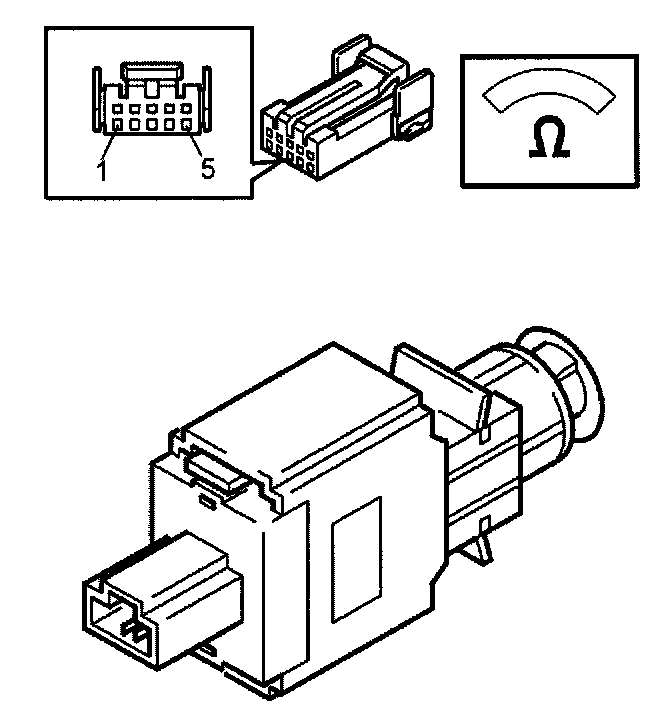

Check the signal cable between engine control module (ECM) terminal #B26 (#B36) and brake pedal switch terminal #2. Check for an open-circuit.

Remedy as necessary

Other information:
- To connect the breakout box/access the control module, see Connecting the breakout box (under Scan Tool Connecting).
- For information about signals on 5 cylinder engines, see Signal Specification (under Diagnostic Parameters and Pinout Values)
- For information about signals on 6 cylinder engines, see Signal Specification (under Diagnostic Parameters and Pinout Values)
- Checking wiring and terminals.

Continue with Test (Verification - Permanent). Verification - Permanent
