SWM-0013

Condition

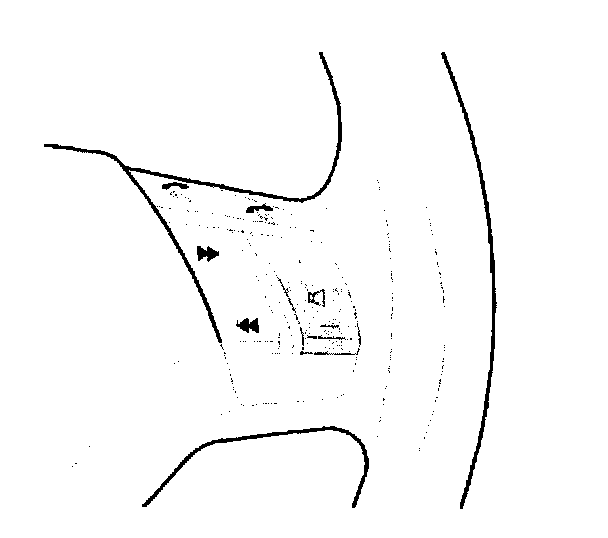

Diagnostic trouble code (DTC) SWM-0013 is stored if the micro processor or steering wheel module (SWM) registers that the Volume+ and Volume- buttons on the audio/carphone control switch are activated at the same time.

Condition
None.

Possible source
- The Volume+ and Volume- buttons on the audio/carphone control switch are activated at the same time.

Condition
- The steering wheel radio controls do not function
- The steering wheel carphone controls do not function.
