ABS-00C2

DTC ABS-00C2 Reversing Signal

Condition

Note: This diagnostic trouble code applies only to ABS systems equipped with DSTC.

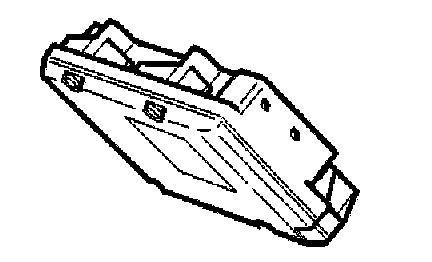

If the ABS control unit registers an unreasonable reversing signal, diagnostic trouble code ABSOOC2 will be stored.

Substitute value
- Anti-spin function blocked.
- Stabilizing function blocked.

Possible source
- TBD.
- TBD.

Fault symptom[s]
- Anti-spin does not work.
- Stabilizing function not working.
- Anti-spin warning lamp is on.
