Brake Signal

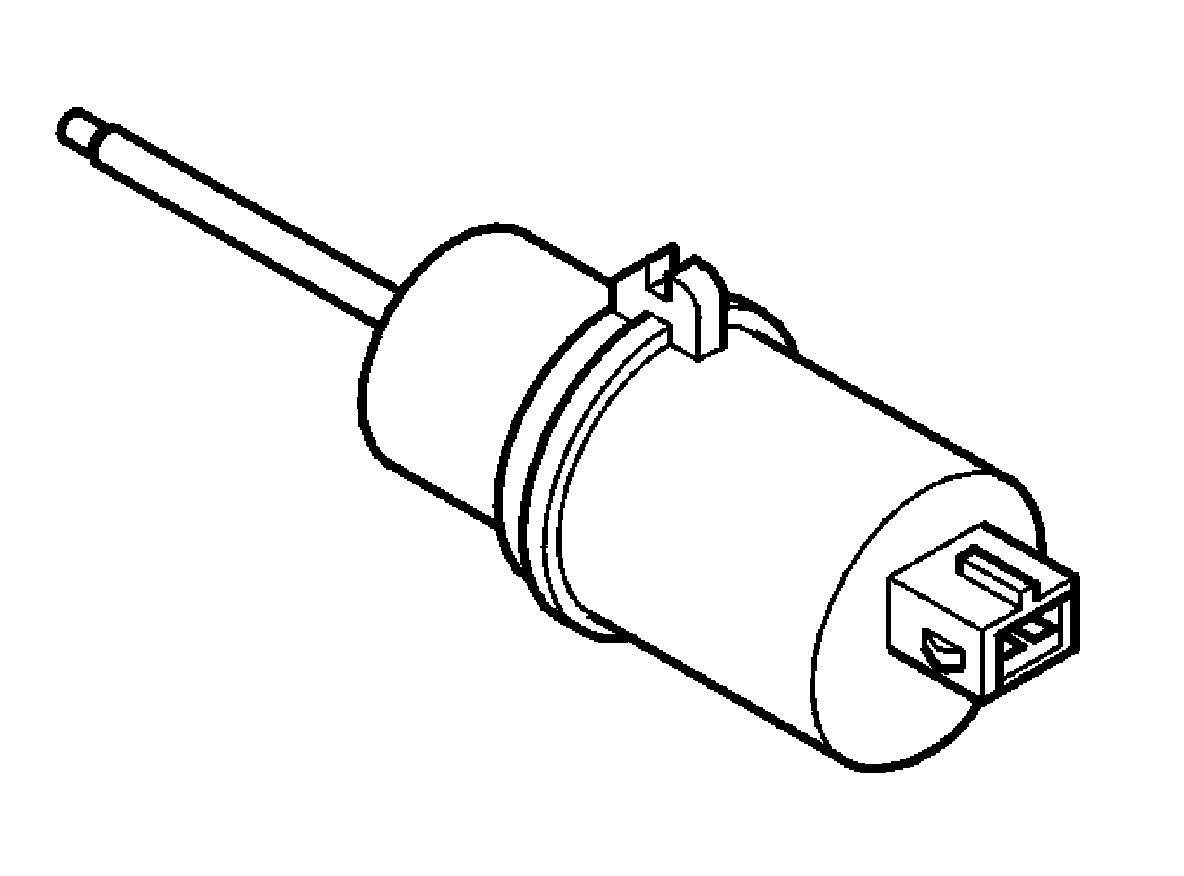

Brake Pedal Sensor






Self-adjusting.

Position (mm) R (Ohms)
0 1300-2100
20 1000-1800
30 900-1700
50 600-1400
