Air Flow Meter/Sensor: Specifications

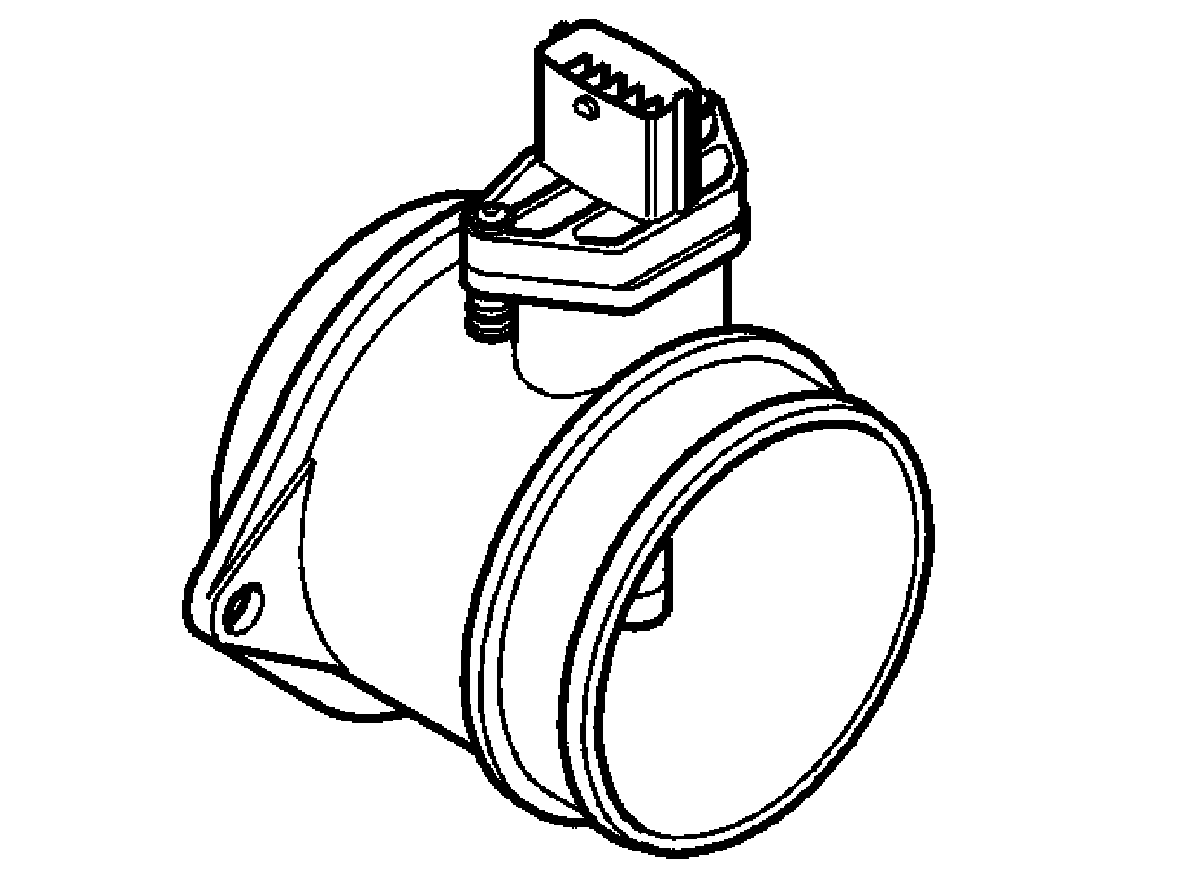

The Mass Air Flow (MAF) Sensor






Mass air flow (MAF) sensor resistive film. Measurement range 12 - 640 kg/h.

Q( kg/h ) V(Volt)
12.0 1.31
15.0 1.39
30.0 1.69
60.0 2.11
