Checking Instrument Lighting

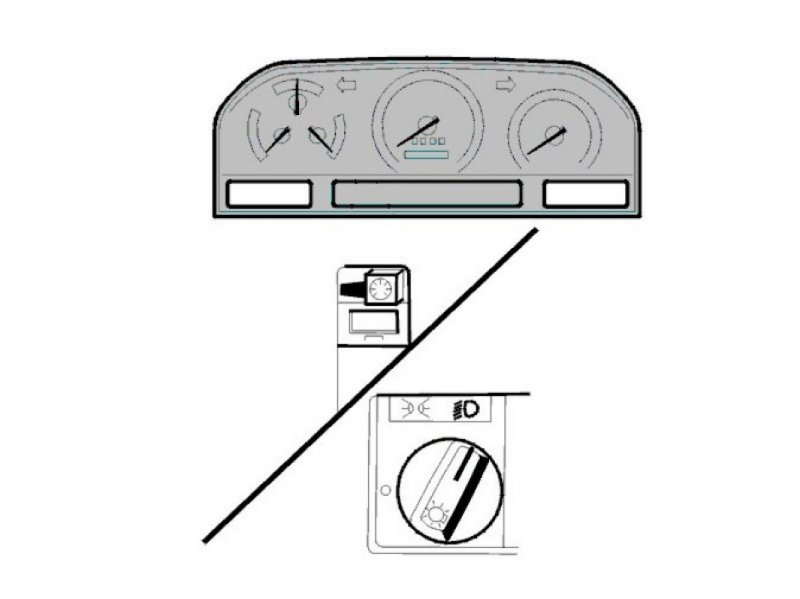

Checking instrument lighting
Checking indicator lamps
- Ignition on.
- Switch on the headlamps.
- Set the instrument lighting rheostat to maximum.
Check whether the fog tail lamp, high beam and turn signal indicator lamps light.
Do the indicator lamps light?
Yes - Checking for an open-circuit
No - Connecting the breakout box
-------------------------------------------------
Checking for an open-circuit
Check the cable between combined instrument panel terminal A17 and ground terminal 31/50 for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Continue - Verification
-------------------------------------------------
Connecting the breakout box
981 3190 Replaced by 9511428 981 3190 Replaced by 951 1428 981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495
Connecting the breakout box
Information

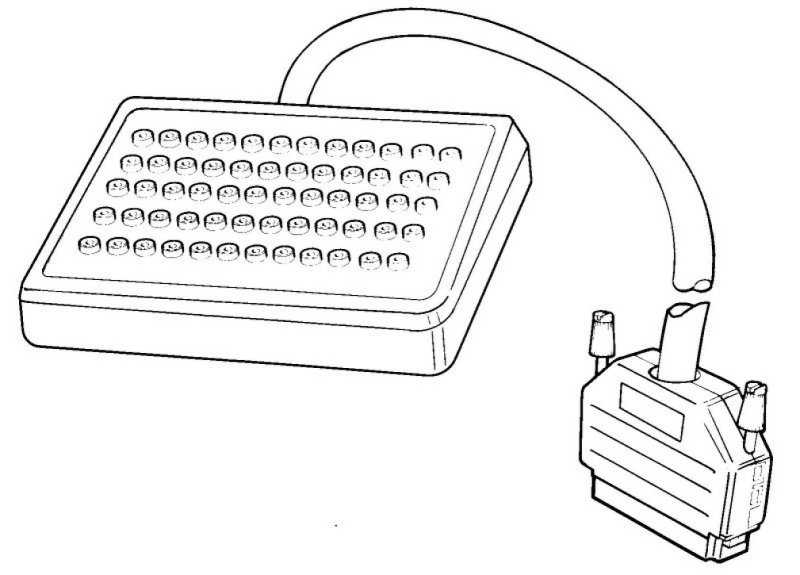

Connecting up the Test box
Is the test box connected to the control module?
Yes - No Fault Found
No - Connecting the breakout box to the combined instrument panel
-------------------------------------------------

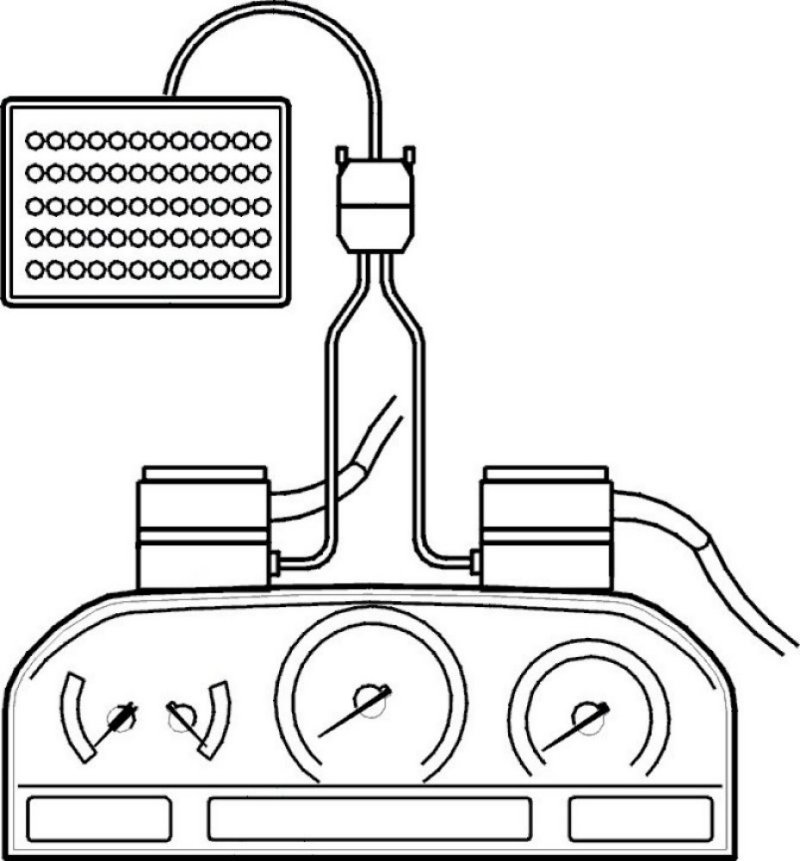

Connecting the breakout box to the combined instrument panel
- Ignition off.
- Expose combined instrument panel.
- Disconnect combined instrument panel.
- Check that the male and female terminals in the combined instrument panel and cable harness connectors are intact and secure and that the wiring to the female terminals is properly attached to the terminal.
- Check the terminals relevant to the diagnostic trouble code (DTC)/symptom especially well.
Connect adapter 981 3194 Replaced by 9511495 981 3194 Replaced by 951 1495 to combined instrument panel connectors A and B and connect the breakout box 981 3190 Replaced by 9511428 981 3190 Replaced by 951 1428 to adapter.
Continue - Verification
-------------------------------------------------
Checking ground terminals
- Ignition off.
- Switch off all equipment that takes power from the battery (courtesy lighting, radio etc).
Connect an ohmmeter between the battery negative terminal and:
#15 (#A15)
#17 (#A17) on the breakout box.
The ohmmeter should read approx. 0 ohms for all readings
OK - Return to the fault-tracing procedure where it was interrupted.
Not OK - Checking for an open-circuit
-------------------------------------------------
Checking for an open-circuit
Check ground terminals 31/50 and 31/51 in the central electrical unit and their wiring for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault and contact resistance and oxidation according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault. Check ground lead between central electrical unit and chassis for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault and contact resistance and oxidation according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Continue - Verification
-------------------------------------------------
Verification
Hint: After carrying out the repair check that the fault has been remedied.
- Ignition off.
- Combined instrument disconnected
- Switch off all equipment that takes power from the battery (courtesy lighting, radio etc).
Connect an ohmmeter between the battery negative terminal and:
#15 (#A15)
#17 (#A17) on the breakout box.
The ohmmeter should read approx. 0 ohms for all readings
OK - Troubleshooting procedure complete
Not OK - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should be diagnosed and remedied. Since this is not the case the fault-tracing process has failed.
Complete the fault-tracing for those fault or try again.
Do you want to terminate fault-tracing at this time?
Yes - Exit Fault-tracing
No - Attempt New Test
-------------------------------------------------
Checking the voltage to the bulbs
- Ignition off.
- Connect the combined instrument panel.
- Ignition on.
- Switch on the headlamps.
- Set the instrument lighting rheostat to maximum.
Connect a voltmeter between terminal 10 (#A10) and terminal 17 (#A17) on the breakout box.
The voltmeter should read approximately battery voltage.
OK - Replacing the component
Not OK - Checking for an open-circuit
-------------------------------------------------
Replacing the component
Try new instrument lighting bulbs according to Replacing bulb Removal and Replacement
Continue - Verification
-------------------------------------------------
Checking for an open-circuit
Check the cable between combined instrument panel terminal A10 and junction point 23/300 for an open-circuit according to Checking wiring and terminals. Permanent fault Checking Wiring and Terminals. Permanent Fault.
Continue - Verification
-------------------------------------------------
Verification
Hint: After carrying out the repair check that the fault has been remedied.
- Ignition off.
- Reinstall connectors, components etc.
- Connect combined instrument panel.
- Ignition on.
- Switch on headlamps.
- Set the instrument lighting rheostat to maximum.
Does the instrument lighting light?
Yes - Troubleshooting procedure complete
No - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
-------------------------------------------------
