Driver/Vehicle Information Display: Locations

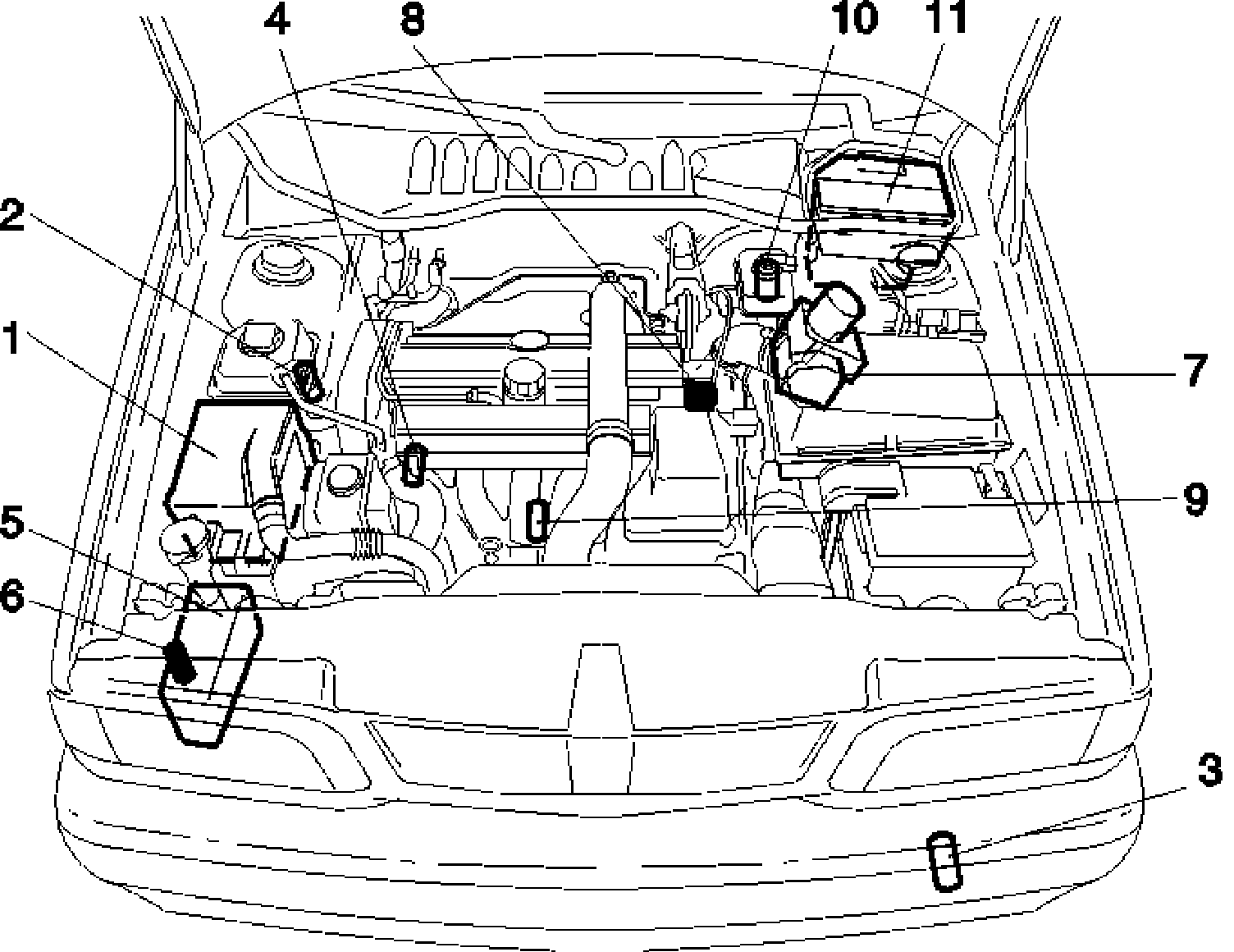

Location of components







1 Control module box
2. Engine coolant level sensor
3. Outside temperature sensor
4. Engine coolant temperature (ECT) sensor
5. Washer reservoir
6. Windshield washer reservoir level sensor
7. ABS
8. Engine speed (RPM) sensor
9. Oil pressure switch
10. Brake fluid level switch
11. Relay and fuse central engine compartment







1. Fuel level sensor
2. Rear bulb failure warning sensor
