Procedures

Replacing front cigarette lighter assembly

Ignition off.

Disconnect battery negative lead.

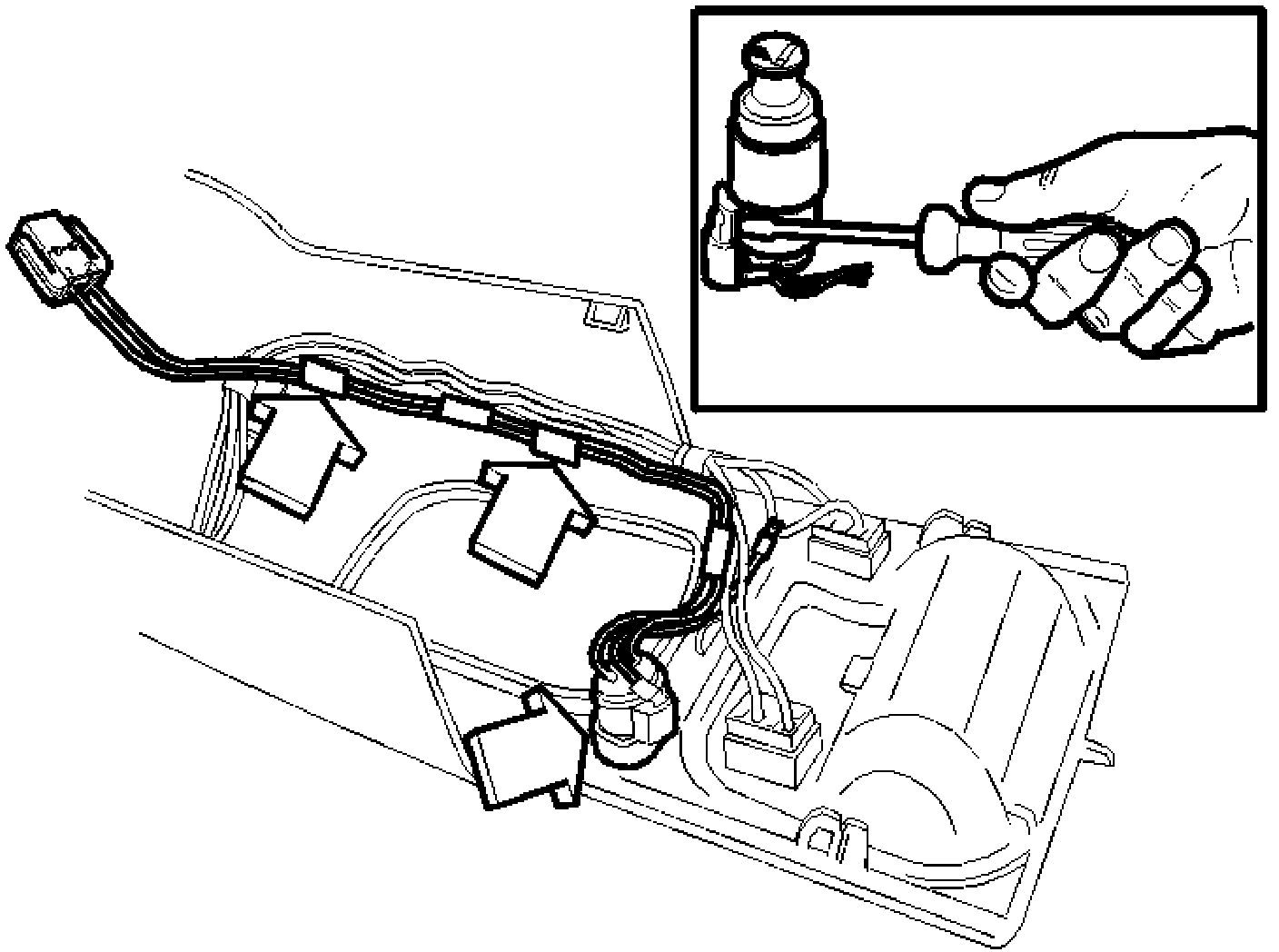

Remove:
- cigarette lighter assembly from tunnel compartment.
- wiring from mountings in tunnel compartment.
- connector from its mounting and disconnect the connector.

Replace cigarette lighter assembly.

Assemble in reverse order.

Test cigarette lighter assembly function.

Replacing rear cigarette lighter assembly

Ignition off. Disconnect battery negative lead.

Remove:
- rear ashtray panel
- cigarette lighter assembly connector.
- cigarette lighter assembly from panel.

Replace cigarette lighter assembly.

Assemble in reverse order.

Test cigarette lighter assembly function.
