Procedures

Torque Bracket

NOTE: As the illustrations in the information are used for different model years and/or models, certain variations may occur. However, the essential information in the illustrations is always correct.

Removing The Torque Bracket

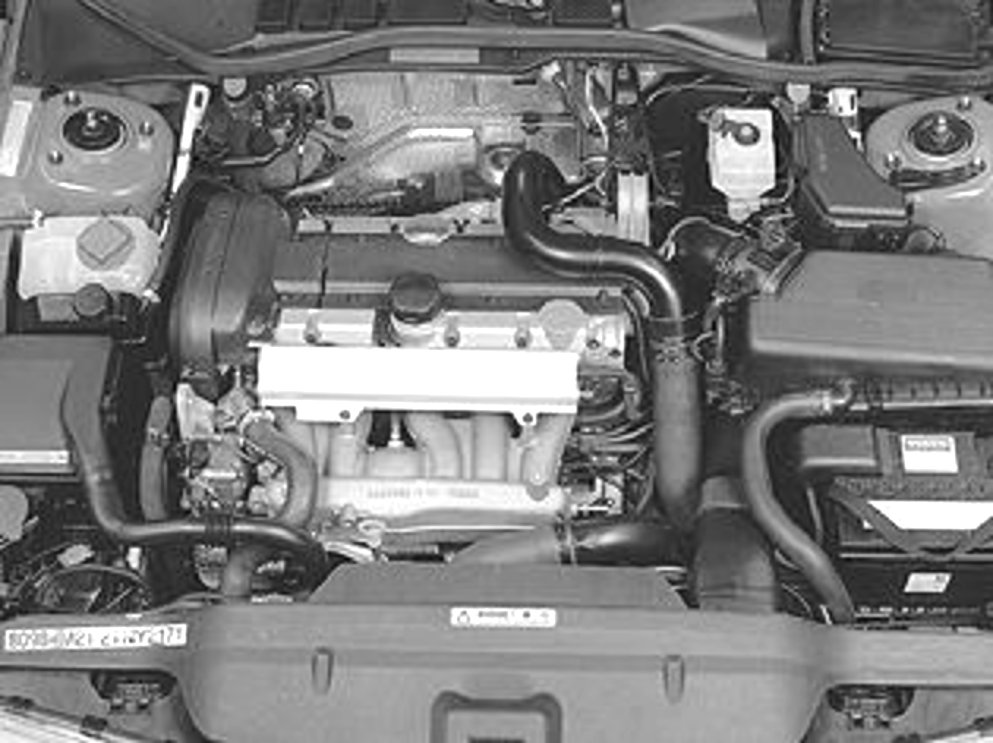

Remove:
- the charge air pipe over the engine.
- the upper camshaft belt cover.
- the cover over the ignition coils.
- the screw for the torque rod.
- the torque bracket.

Installing The Torque Bracket







Install

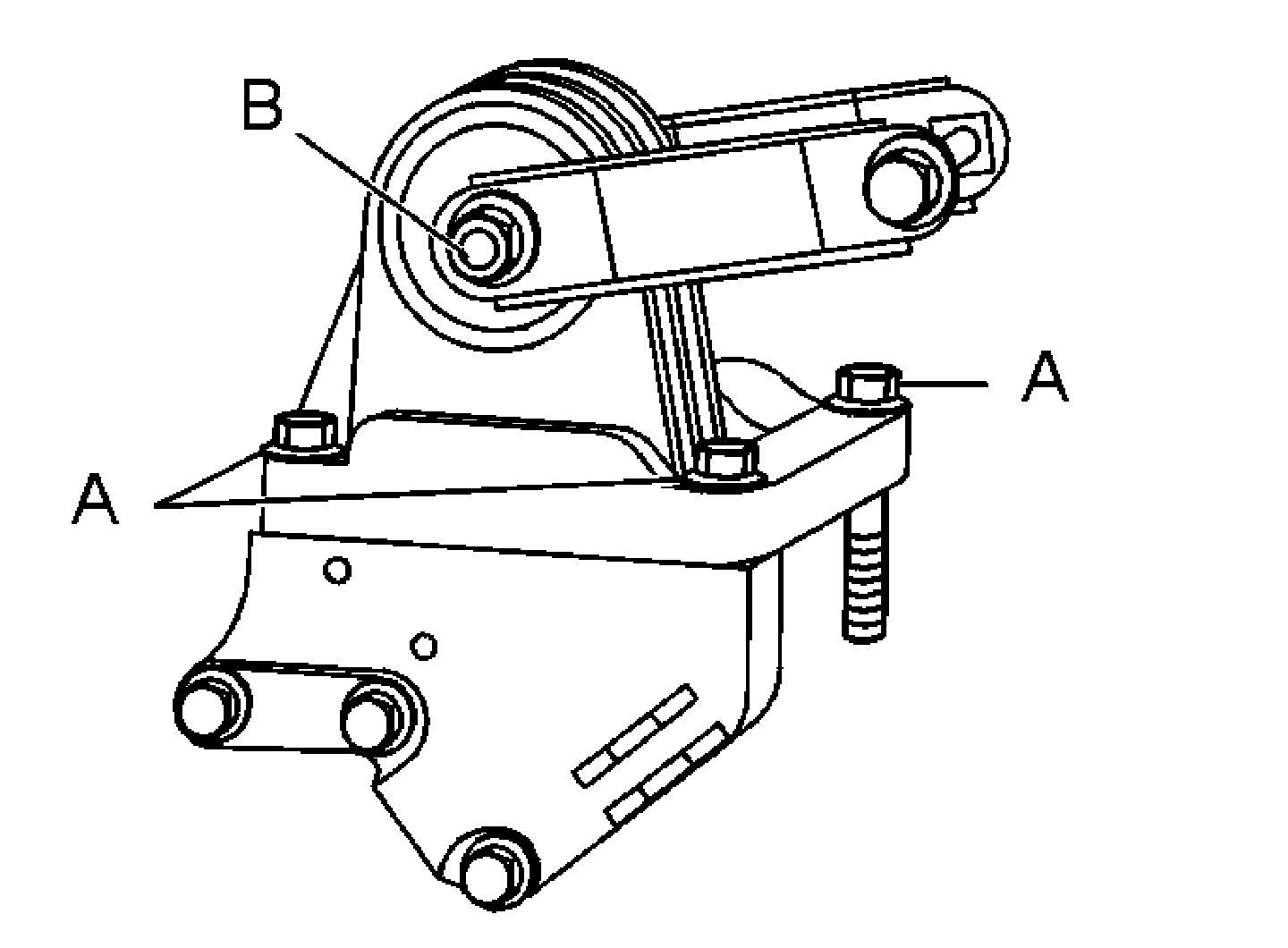

- the torque bracket (A).
Tighten to 50 Nm (37 lb.ft).

- the screws for the torque rod (B).
Tighten to 35 Nm (26 lb.ft) +90 degree.

- the cover over the ignition coils.
- the upper camshaft belt cover.
- any charge air pipe over the engine.

Wipe clean and check.
