Tilt Mechanism

The Tilt Mechanism

Preparations







- Remove the battery negative lead.
- Remove the backrest upholstery.
- Remove the protective pad.

Removing the tilt mechanism

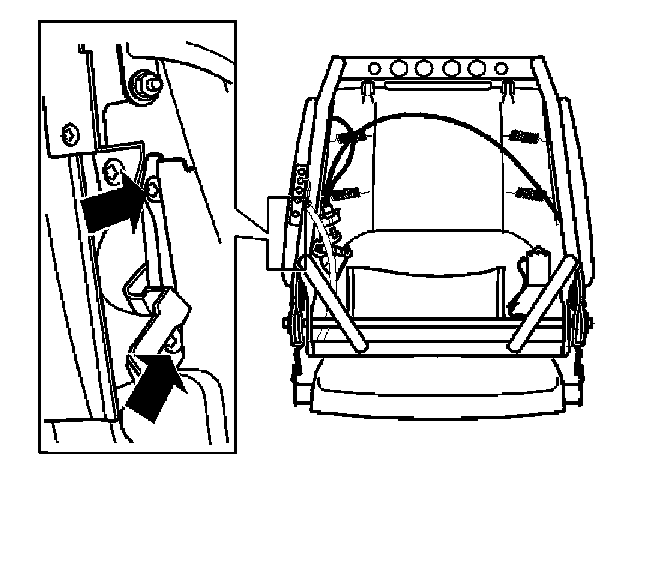

Remove:
- two screws securing tilt mechanism in the seat.
- the switch from the folding mechanism.
- the cable from the tilt mechanism.

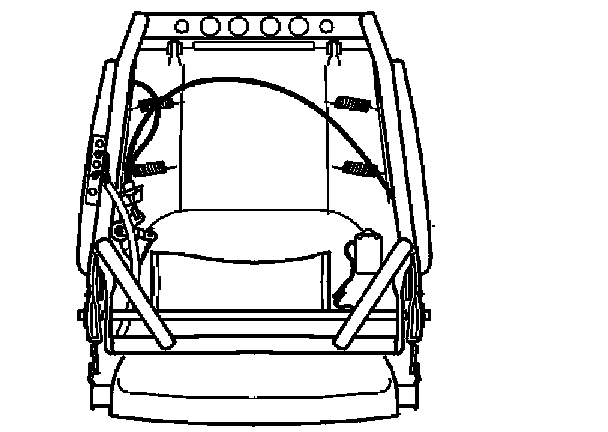

- Replace the tilt mechanism.

Install:
- In reverse order.
