Front Height Adjustment Motor (Front Motor)

Front height adjustment motor (front motor)

Preparations

Remove:
- the seat from car.
- the connectors.

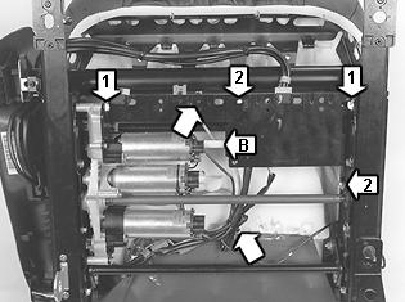

Removing the front motor










- Remove one screw and spacer (B).
- Remove two screws (B) and (R). the motor.

Install:
- In reverse order.

Tightening torque for the seat to the floor: 48 Nm.
