Pinout Values and Diagnostic Parameters

Signal Description

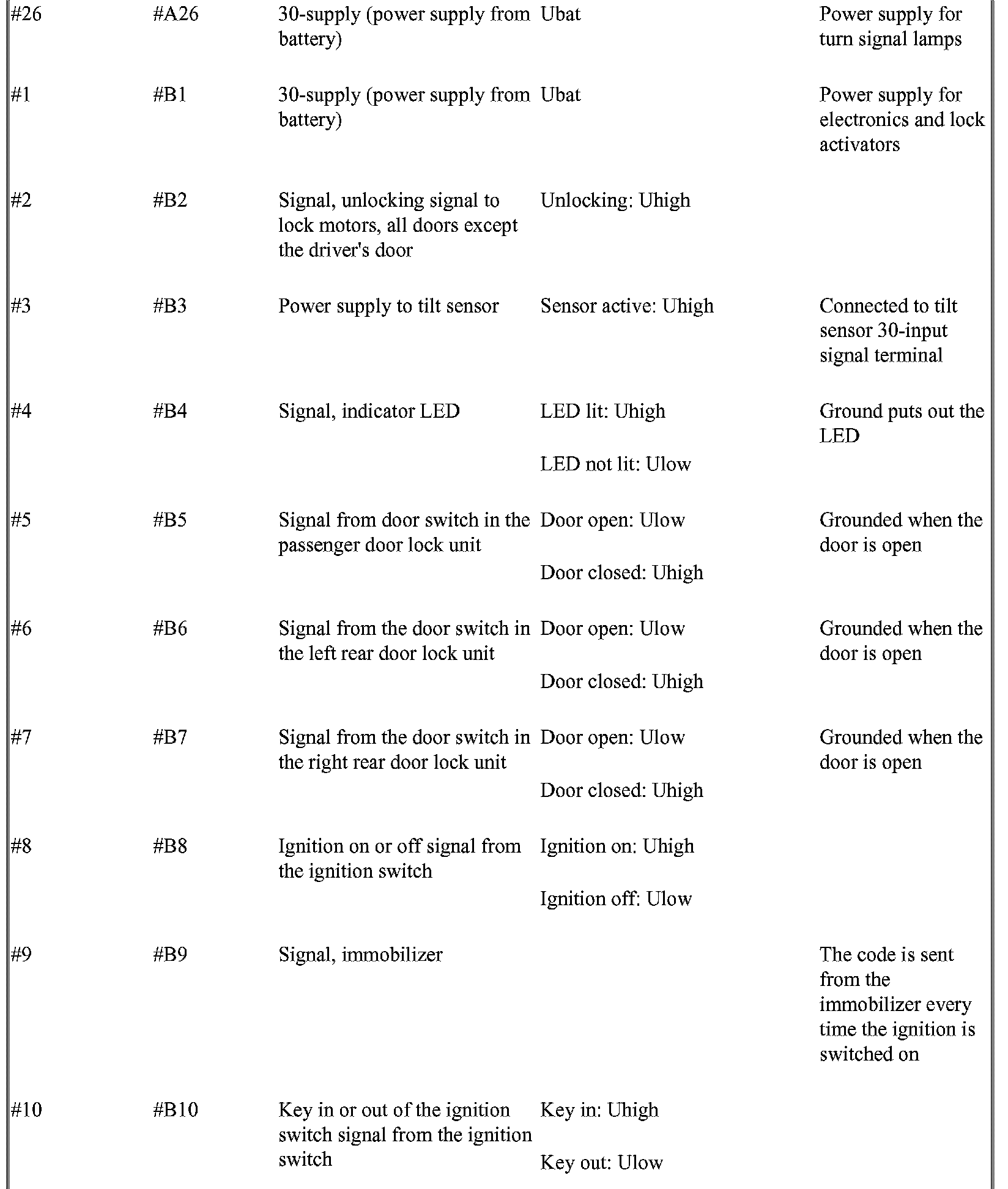

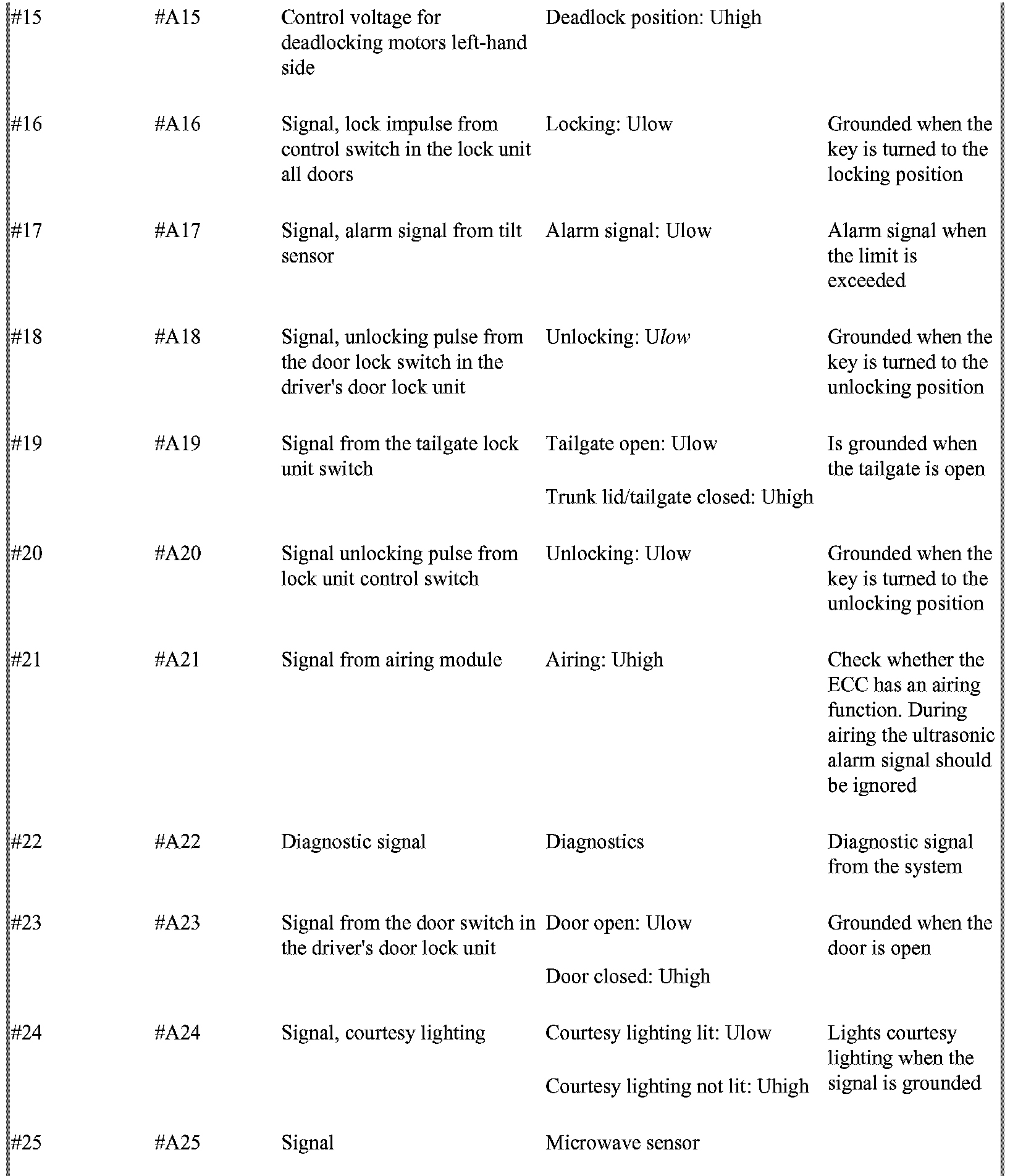

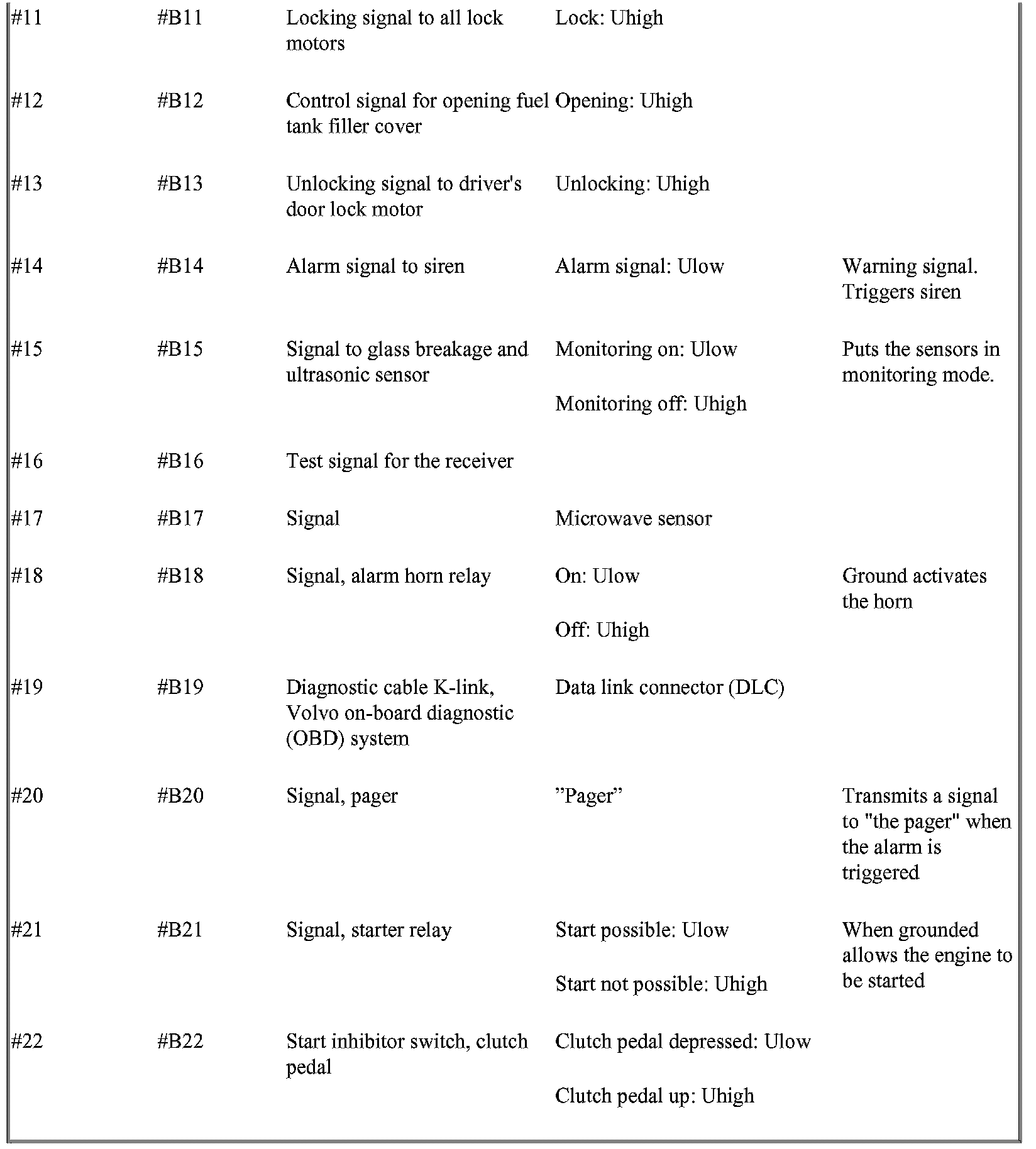

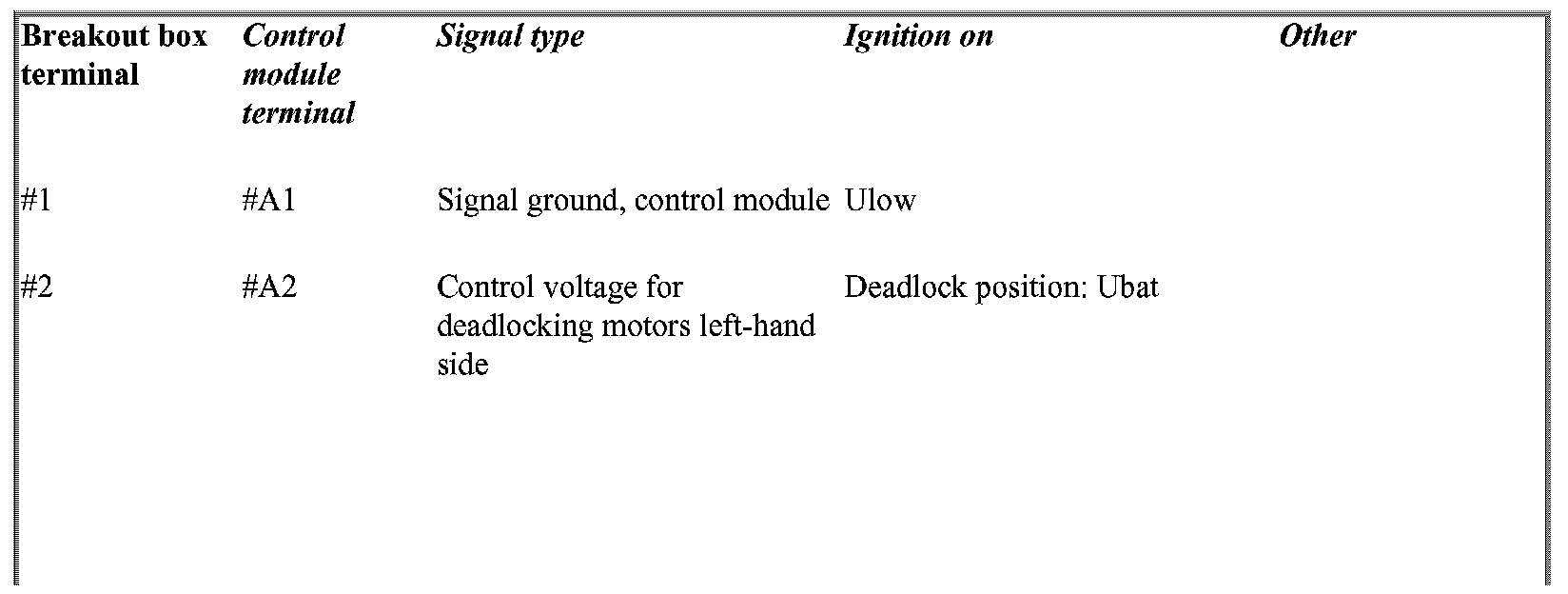

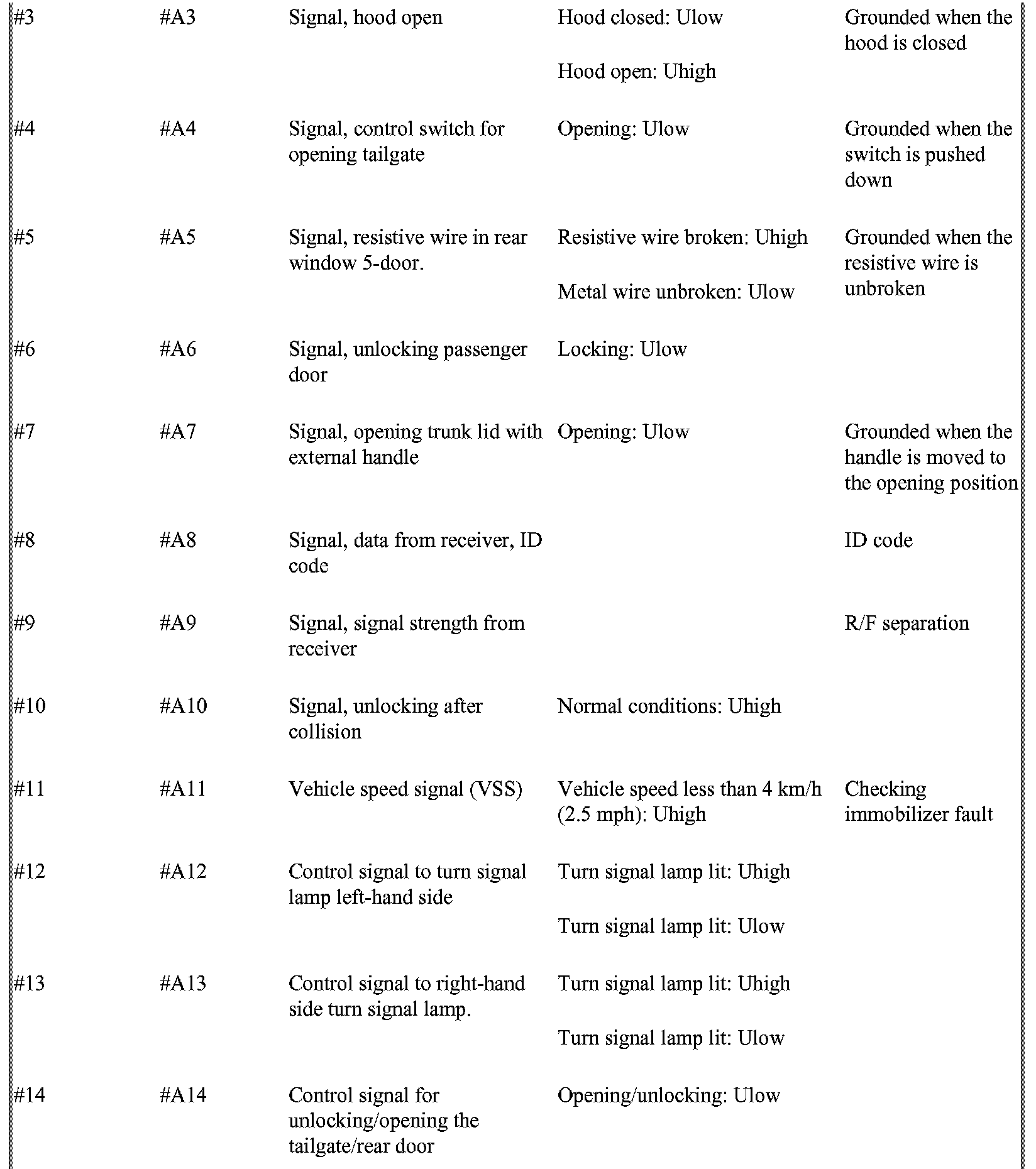

Signal Specification, Lock And Alarm (VGLA)







U = DC in volts (V)
Ubat = battery voltage
Ulow = voltage near 0 V or 0 V

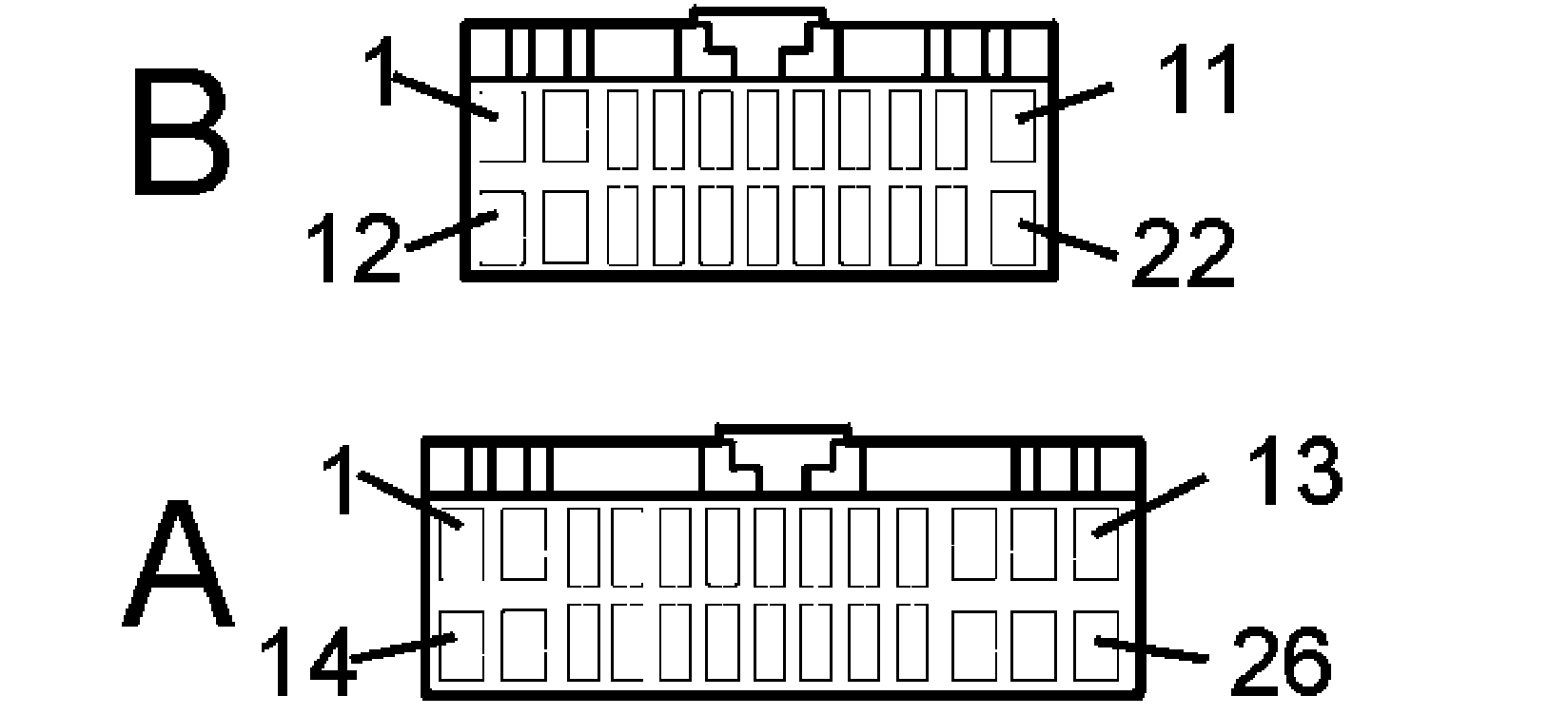

NOTE: A new breakout box must be connected to take a reading at connector B.
